IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 36

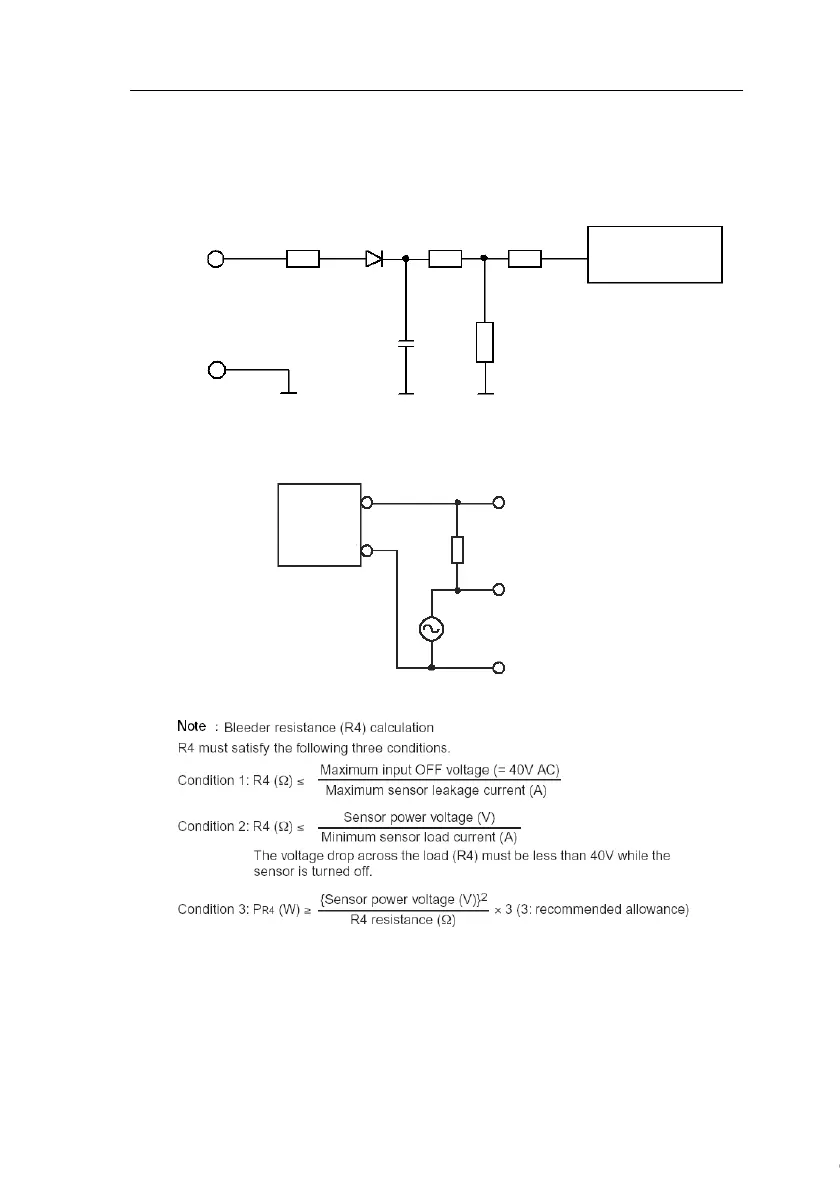

Input Internal Circuit

FL1D-H12RCC / FL1D-B12RCC / FL1B-M08C2R2

I1~I8

100nF

390kΩ 390kΩ

62kΩ

2-wire

Sensor

I1 to I8

100 to 240 V AC

Internal

Circuit

Digital AC/DC Input

When using the AC two-wire sensor

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
