Programming IDEC SmartRelay
IDEC SmartRelay Manual 72
The first element of the Co list is the “Input 1” character,
namely ‘I1’.
Note
Press ▼ to go the start of the Co list: I1, I2 .... to lo.
Press ▲ to go to the end of the Co list: lo, hi, ..... to I1.
Press OK. I1 is now connected to the input of the OR block.
The cursor jumps to the next input of the OR block.
≥ 1
B1
Q1
≥
1
Q1
I1
I1
B1

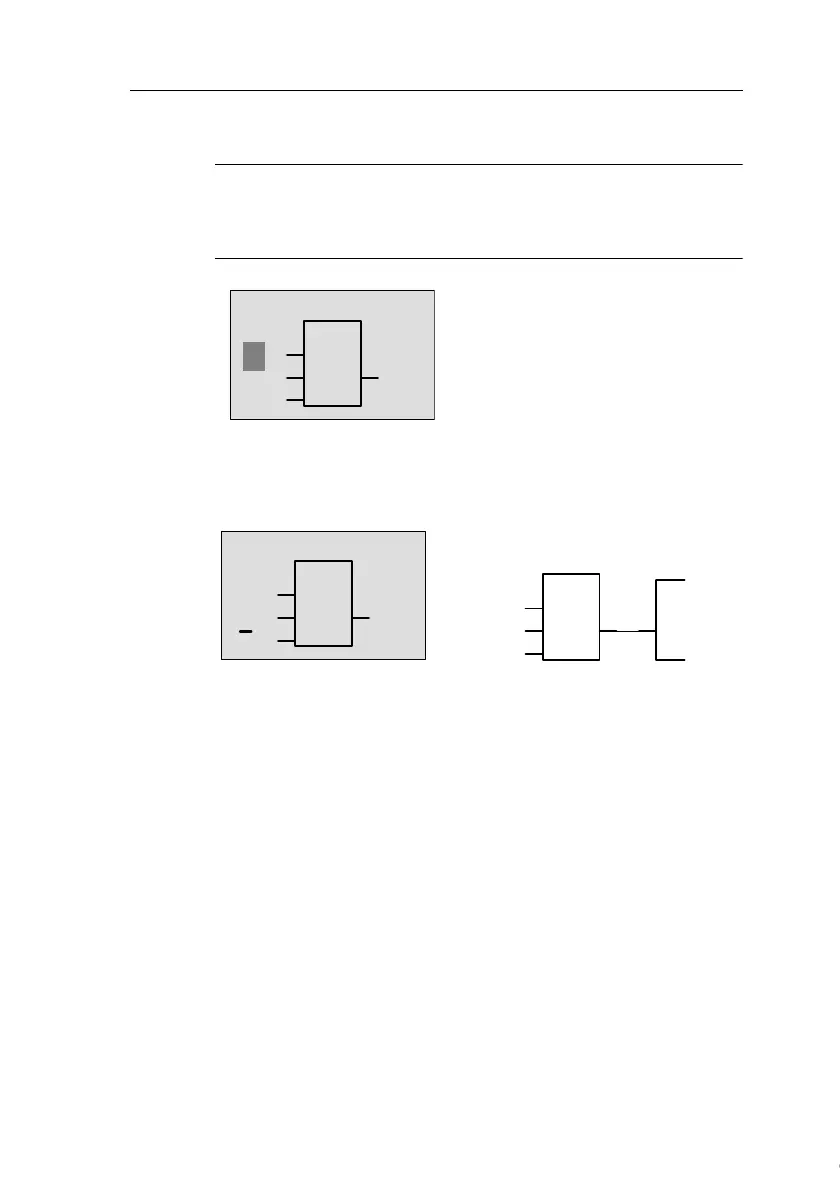

Your complete circuit program
in IDEC SmartRelay up to now:
The display now shows:
Now you connect input I2 to the input of the OR block. You
already know how to do this:
1. Switch to editing mode: Press OK
2. To select the Co list: Press ▼ or ▲
3. To confirm the Co list with: Press OK
4. To select I2: Press ▼ or ▲
5. To apply I2: Press OK
≥ 1
Q1
I1
B1
