Programming IDEC SmartRelay
IDEC SmartRelay Manual 74
Note
You can invert individual inputs of the basic and special functions,
i.e. if an input carries a logical “1” signal, the circuit program will out-
put a logical “0”. On the other hand, a logical “0” is inverted into a
logical “1” signal.

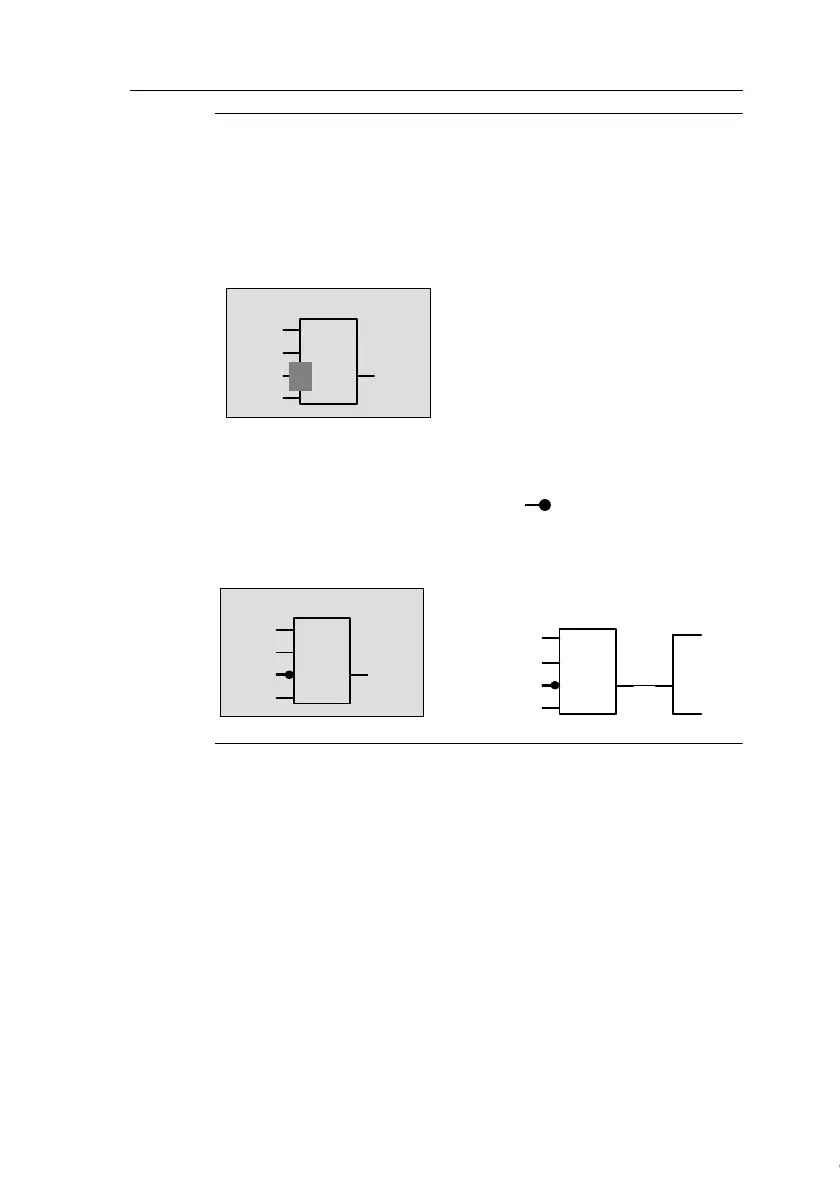

To invert an input, move the cursor to the relevant position, e.g.:
Confirm with OK.
Now press ▼ or ▲ to invert this input:
Next, press ESC.
You can review your first circuit program by pressing
or
▲
to move the cursor through the circuit program.
We shall now exit circuit programming mode. This is how it
is done:
Return to the programming menu:Press ESC
≥ 1
B1
Q1
I2
I3
x
I1
≥ 1
B1
Q1
I2
I3
≥
1
Q1
I2
B1
I3
x
x
I1
I1
The display now shows: Your circuit program layout
