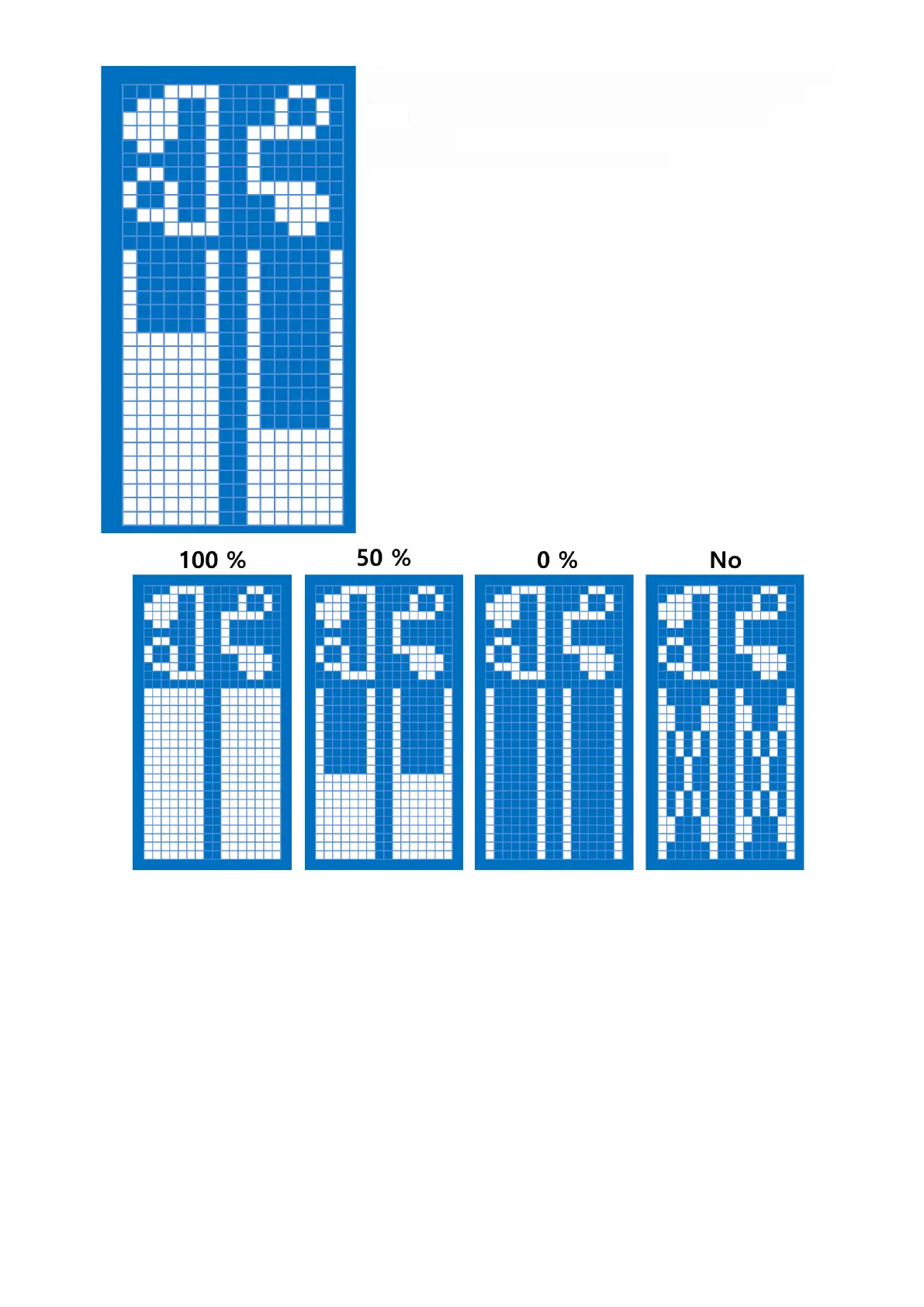

The left side shows the residual volume of the re-transfer film,

and the right side shows the residual volume of the ribbon.

And the icon displays the remaining consumables in

percentage.

Mark ‘X’, if the film or ribbon is not fitted.

Figure 7 Film & Ribbon residual volume icon

Figure 8 Example of icons
