IEMCA VIP 80 - Main Parts

TECHNICAL SPECIFICATIONS
2
- 7 -
302.028

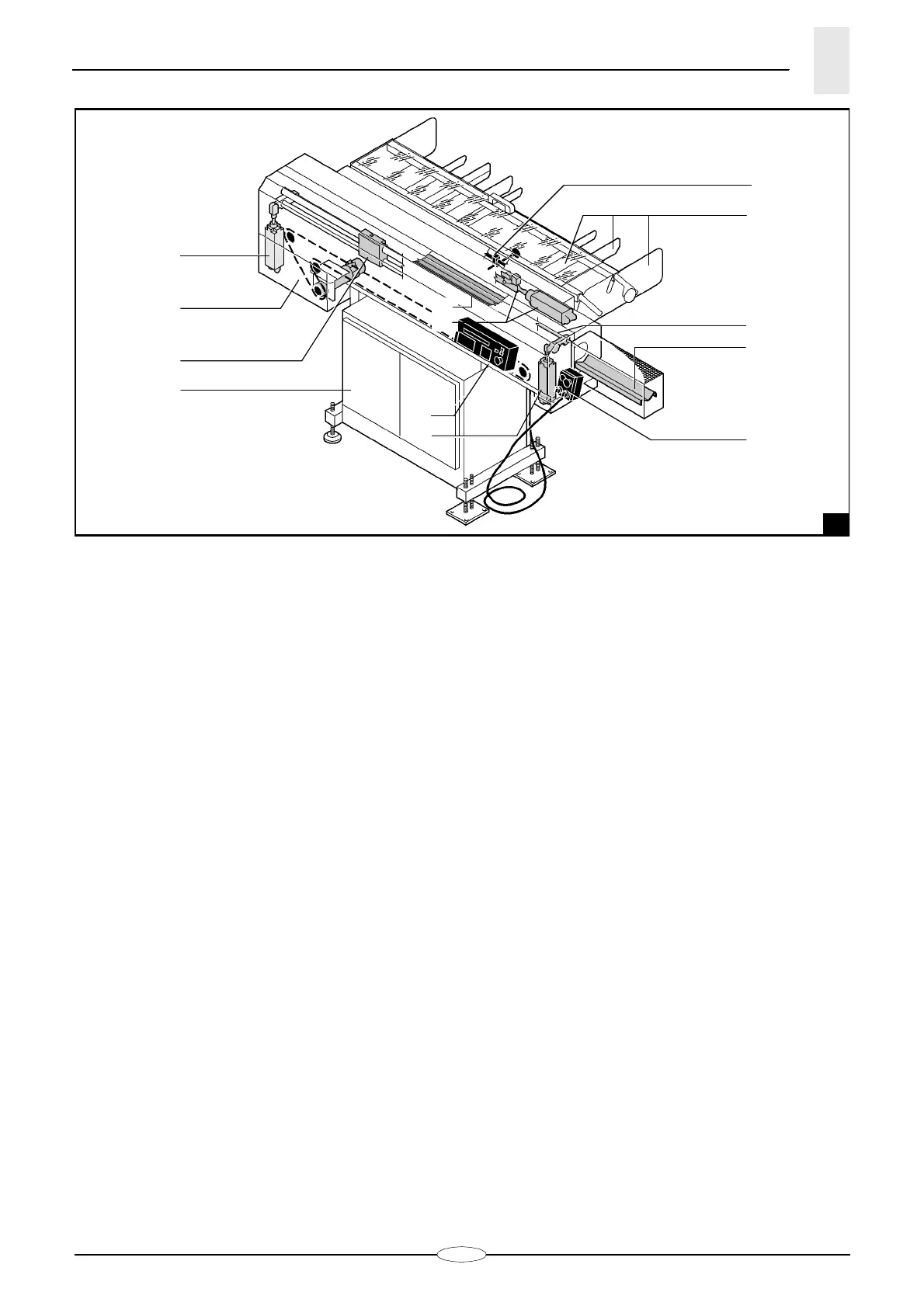

2.2.1 Main parts
(fig. 1)
A - Magazine
where bars are stored.
B - Bar lifting device
it lifts the first bar and moves it from the magazine
on to the guide channel.
C - Bar selector
it lifts the first bar as this is lifted by the device
B
.
All the other bars remain in the magazine.
D - Guide
it guides the bar as it is inserted into the lathe
spindle.
E - Stock guide tube lifting/lowering device
it lifts/lowers the stock guide tube.
F - Bar pusher
as a result of the feeding stroke, it pushes bars
into the lathe.
G - Bar pusher lifting/lowering device
it lifts/lowers the bar pusher.
H - Prefeed and feed carriage
it prefeeds and feeds bars.
L - Motor
it powers the carriage
H
.
M - Main push-button panel
it controls and programs all feeder functions.
N - Additional push-button panel
it makes it possible to control the main functions
without any need to move away from the lathe.
1
28.002 Ec.2
•
P
•
•
E
L
H
F
N
M
•
•
•
C
•
A
B
D
G
Q
