IEMCA VIP 80 - Bar Pusher - Selection and Installation; Optional) Bar Passage Guide - Adjustment

ADJUSTMENTS AND SETUP
5
- 31 -
302.028

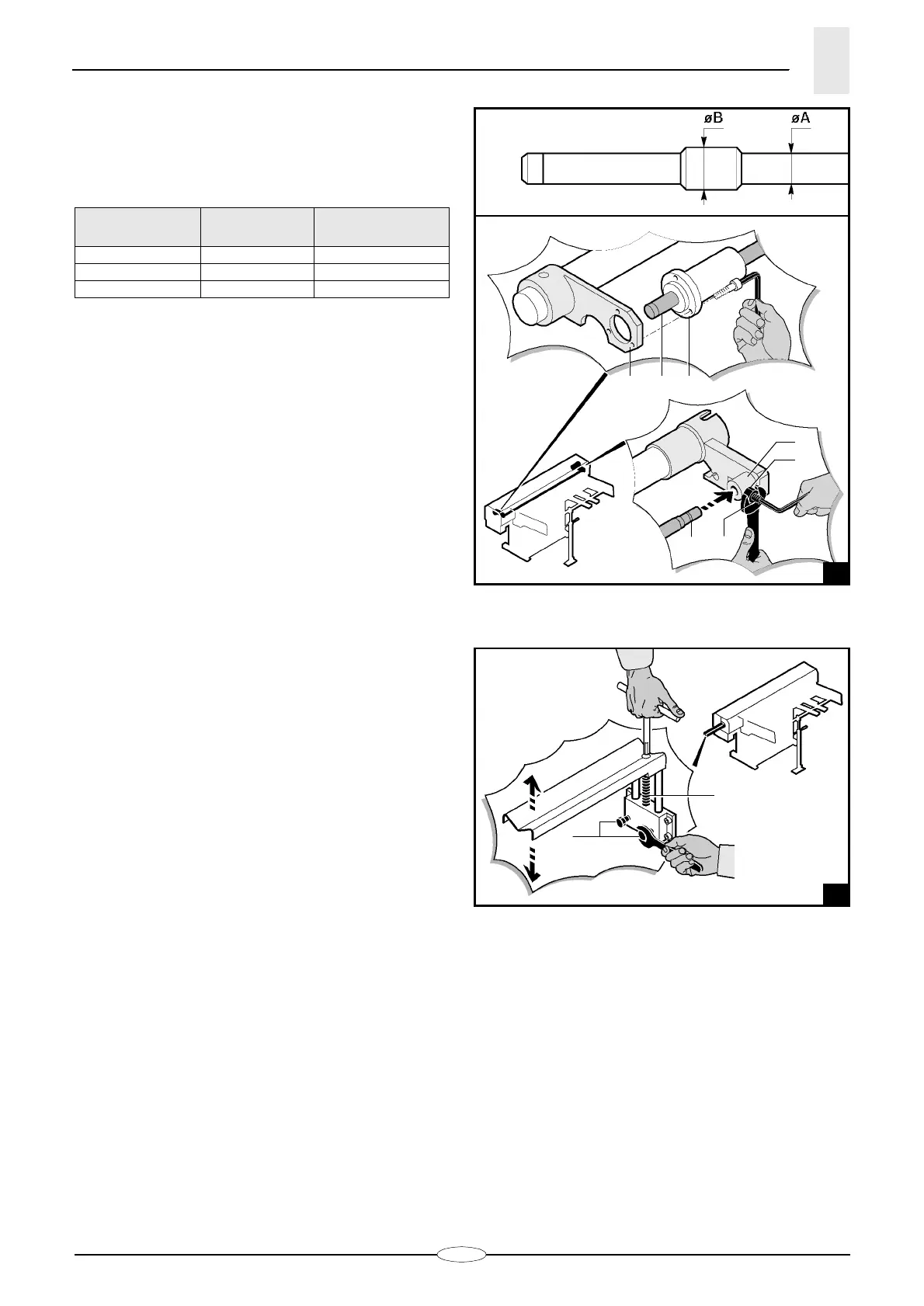

5.3.6 Bar pusher - Selection and
installation
(fig. 9)
Install a bar pusher with a diameter which is suitable
for the bar diameter (see table below).
To install the bar pusher, proceed as follows:
– Open the front guard.
– Install the fore bush
C
in the seat of lever
D
. The bar
pusher
E
must be inserted into bush
C
.
– Introduce the rear part of bar pusher
E
into lever
F
housing, tighten screw
G
and nut
H
.
– Close the guard.
5.3.7 (Optional) Bar passage guide -
Adjustment
(fig. 10)
– Screw out the screws
A
.
– Adjust the guide height. The axis of the bar resting
on it should be aligned with the feeding axis.
Adjust by screwing out the nut
A
and manually
adjust the position of screw
B
.
To adjust, turn screw
B
.
– Tighten screws
A
.
BAR DIAMETER
(mm)
ØA - ROD
DIAMETER (MM)
ØB - BEARING
DIAMETER (MM)
5
÷
12 10 12
10
÷
19 12 15
16
÷
80 18 21
9
28.049 Ec.2
E
D CE
F
H
G
10
28.050 Ec.1
A
B
