ADJUSTMENTS AND SETUP
5.1. ADJUSTMENT AND SETUP - FOREWORD
DANGER - WARNING: Unless otherwise stated in this
manual, do not adjust the feeder when it is working.
Besides normal adjustments which may become
necessary over its service life, this machine should
also be adjusted to suit its required type of work.
According to bar size and type of work, machine setup
may include the replacement of a few parts.
These interventions are divided into and described
under:
– general adjustments (paragraph 5.2.);
– adjustments according to bar type (paragraph 5.3.).
5.2. GENERAL ADJUSTMENTS - FOREWORD
These are all the operations necessary for feeder
smooth working. They can include maintenance
operations, operations required to fix a problem or
operations required after replacing a machine part or
unit.
5.2.1 Feed chain - Adjustment.
5.2.2 Bar pusher axis - Adjustment.
5.2.1 Feed chain - Adjustment

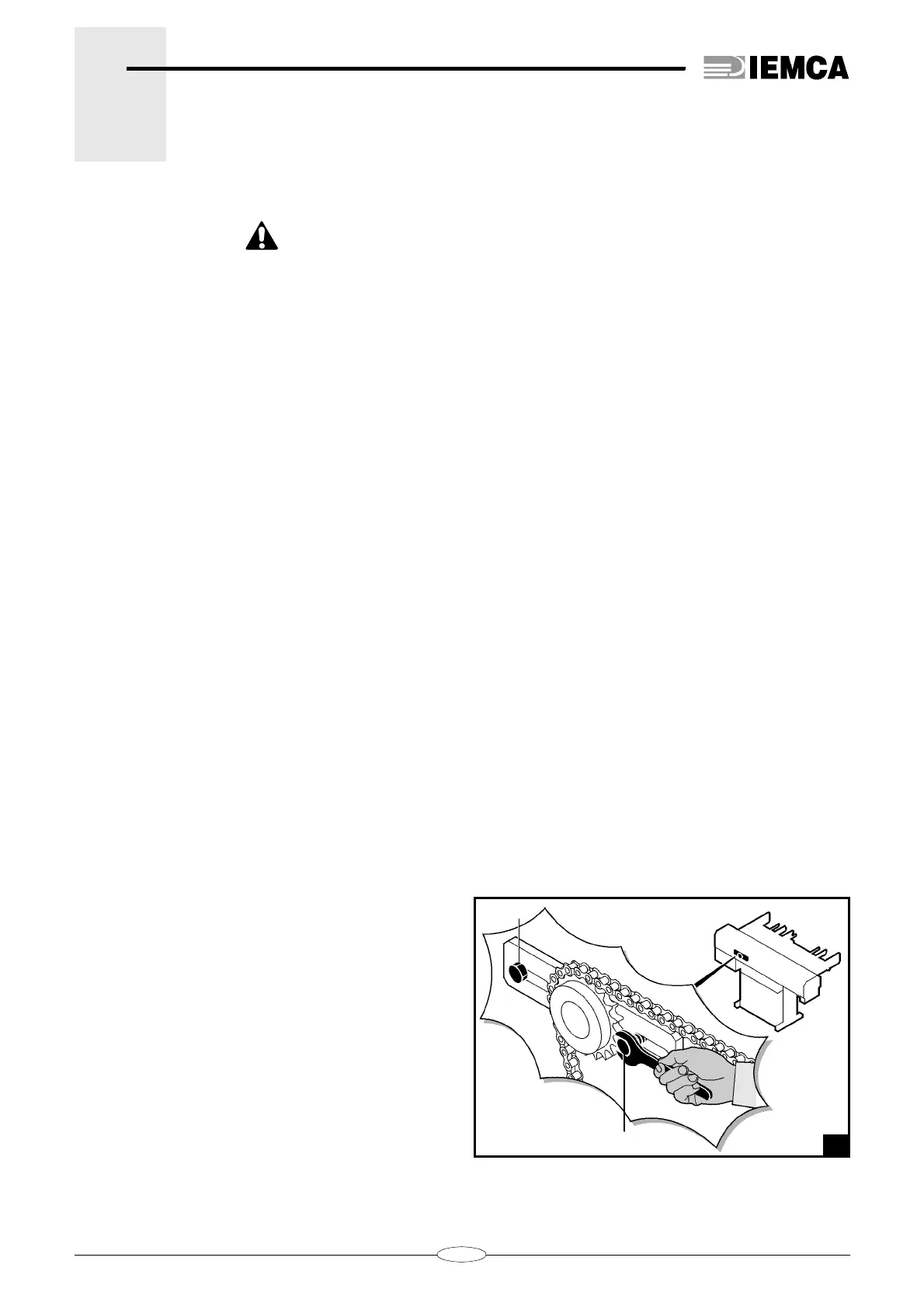

(fig. 1)
– Remove the front guard.
– Loosen the screws
A
.
– Tighten the chain to an appropriate extent.
– Tighten the screws
A
.
3
4
