IEMCA VIP 80 - Guide Lifting Limit Switch - Adjustment

ADJUSTMENTS AND SETUP
5
302.028
- 30 -

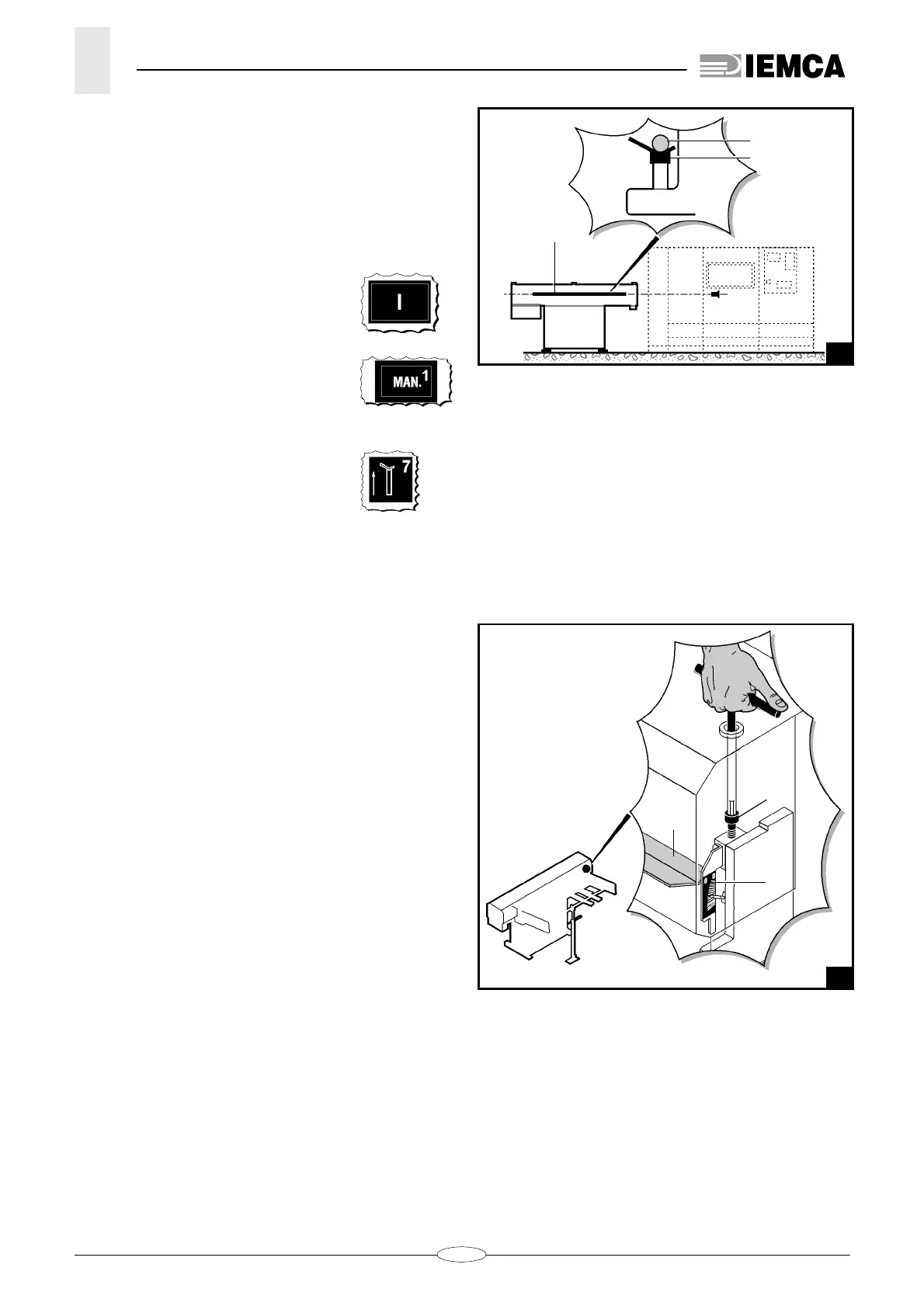

5.3.5 Guide lifting limit switch -
Adjustment.
(fig. 7)
When the bar
A
, is on the lifted guide
B
, its axis must
coincide with the loading axis. The lifting limit switch
must be adjusted according to the stock diameter and
shape.
To adjust it, proceed as follows:
– press
to start the feeder;
– press
to select the manual function;
– press to lift the guide;
– adjust the guide lifting limit stop through screw
C
(fig. 8) and check the adjustment through the gra-
duated scale
D
.
7
A
B
A
8
28.048 Ec.1
B
C
D
