IEMCA VIP 80 - Bar Selection - Adjustment; Covering Frame - Adjustment; Magazine Inclination - Adjustment

ADJUSTMENTS AND SETUP
5
- 29 -
302.028

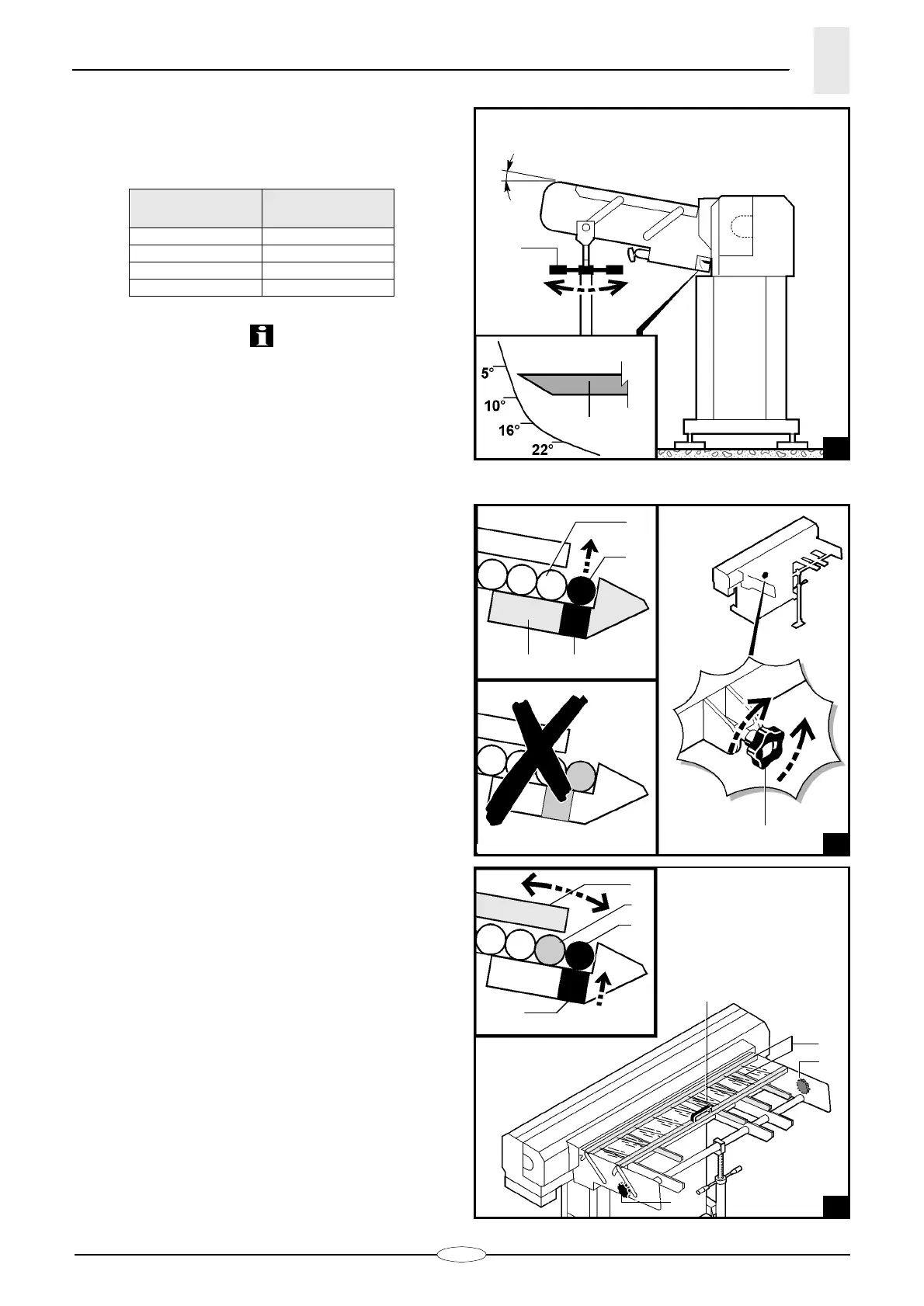

5.3.2 Magazine inclination - Adjustment
(fig. 4)
Adjust the magazine inclination according to the bar
diameter verifying its angle by means of index
C
.
The data shown in the table refer to round bars. To work
bars having a different shape, increase inclination. In the
initial working phases, experiment until you find the
ideal inclination.
To adjust inclination, use handle
B
.
5.3.3 Bar selection - Adjustment
(fig. 5)
Bar
C
is lifted by device
B
.
Thus, the position of bar catches
A
must allow the
lifting of bar
C
only, preventing bar
D
from being lifted.
For adjustment use knob
E
.
5.3.4 Covering frame - Adjustment
(fig. 6)
Bar
C
is lifted by device
B
.
Thus, the position of frame
A
must allow the passage
of bar
C
keeping bar
D
.
To adjust the frame position, loosen the knobs
E
. Then,
lift/lower the frame
A
using handle
F
.
After finding the right position, tighten the knobs
E
.
BAR DIAMETER
(mm)
INCLINATION (A)
ø5
÷
15 22
°
ø16
÷
53 16
°
ø54
÷
70 10
°
ø71
÷
80 5
°
4
28_044_1
B
A
C
5
28.045 Ec.0
C
A B
E
•
•
D
6
28.046 Ec.0
B
A
F
E
E
D
C
A
