HANDLING AND INSTALLATION
4
- 20 -
302.028

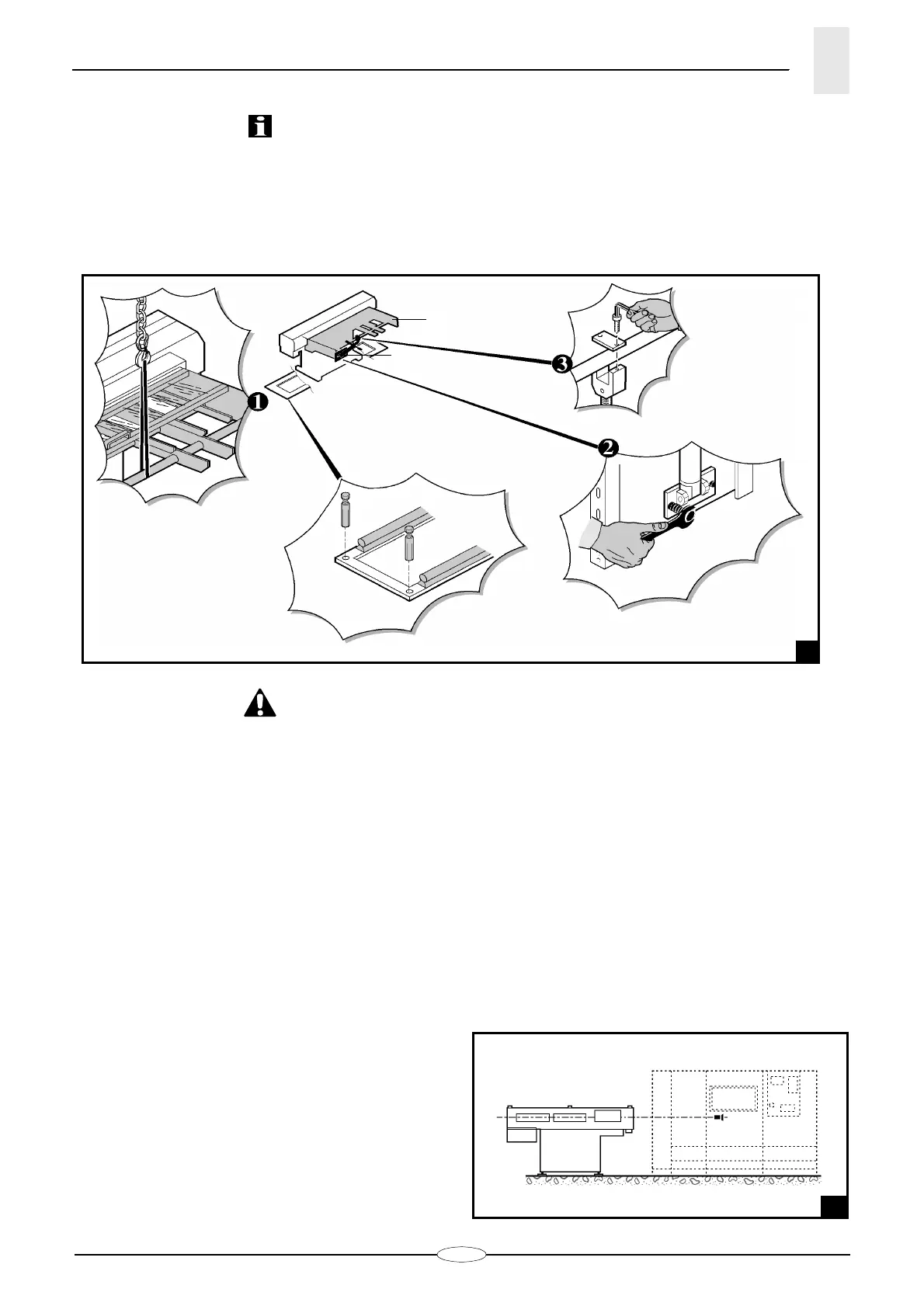

In case of axial displacement foot "D" is fixed
directly to the base.
– lift the magazine
C
and install the foot
D
as shown in
figure 9;
DANGER - WARNING: The bar feeder should be fixed
to the floor before loading bars in the magazine;
moreover, the maximum bar weight limit should be
complied with. Before clearing the bar feeder from the
floor all bars should be removed form the magazine.
4.5. INSTALLATION - FOREWORD
Bar feeder installation imply several operations listed
and described here below.
4.5.1 Positioning
4.5.2 Height - Adjustment
4.5.3 Alignment - Levelling
4.5.4 Fixing the feeder to the lathe
4.5.5 Bar passage guide - Installation
4.5.1 Positioning
– Position the bar feeder behind the lathe (fig. 11),
considering the dimensions of the bar guide and of
its guard (paragraph 4.5.5).
9
D
C
28_082_1
