IEMCA VIP 80 - Height - Adjustment

HANDLING AND INSTALLATION
4
302.028
- 21 -

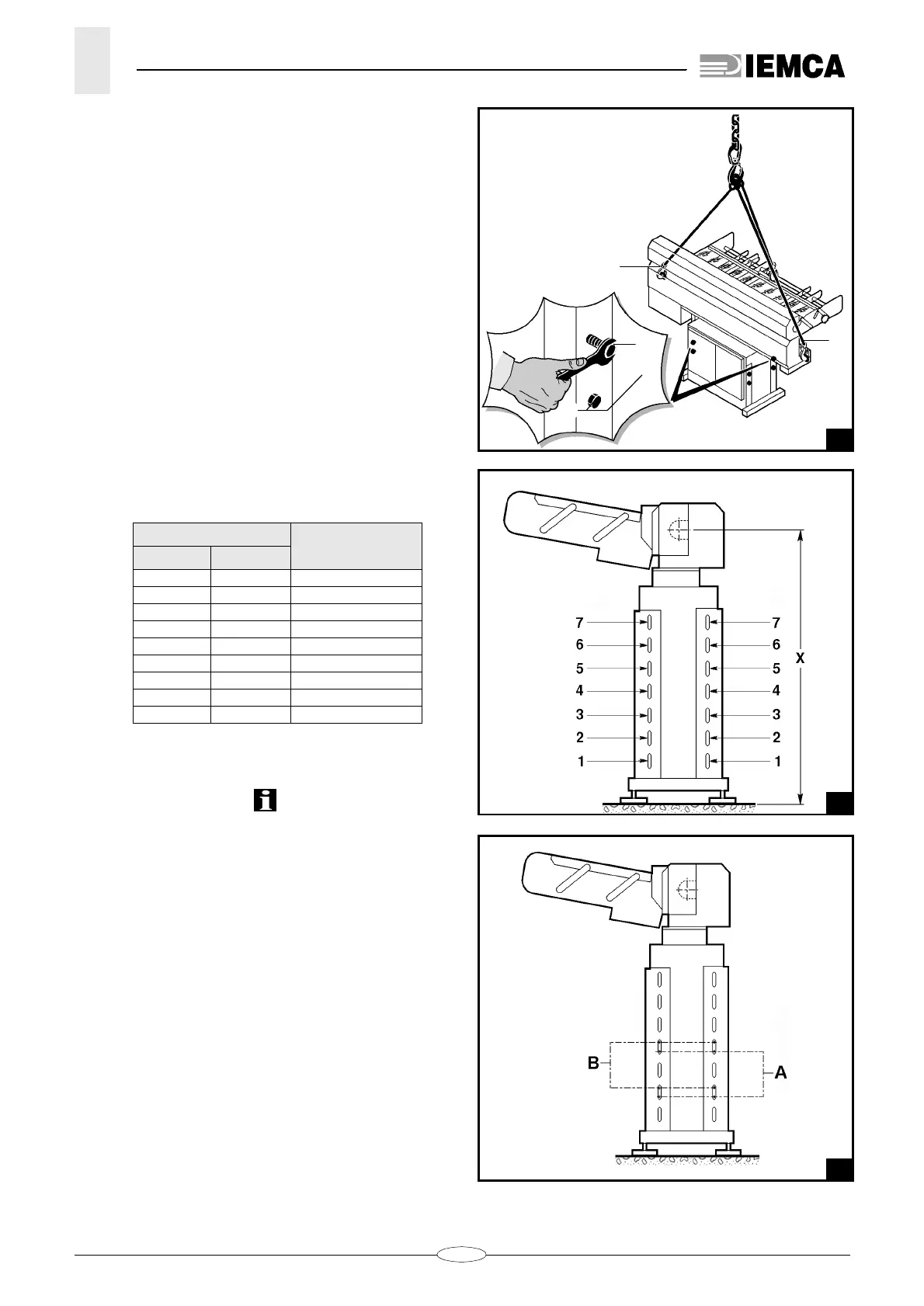

4.5.2 Height - Adjustment
The working axis height is normally adjusted to the
lathe height at the Manufacturer's premises.
Should you need to adjust it, proceed as follows:
– tighten the lifting belts and remove screws
A
(fig. 12)
;
– lift the feeder to the height
X
(fig13 -14); see table
below:
– tighten the screws
A
and remove the eyebolts
B
.
For higher adjustments, shims are available that can be
placed under the foot supports (ask IEMCA Service staff).
SCREWS POSITION
X (mm)
Slots Holes
1 and 3 A 870 - 907
2 and 4 B 908 - 939
2 and 4 A 940 - 977
3 and 5 B 978 - 1009
3 and 5 A 1010 - 1047
4 and 6 B 1048 - 1079
4 and 6 A 1080 - 1117
5 and 7 B 1118 - 1149
5 and 7 A 1150 - 1187
12
B
A
A
B
13
14
