IEMCA VIP 80 - Preparing the Bar Feeder for Installation

HANDLING AND INSTALLATION
4
302.028
- 19 -

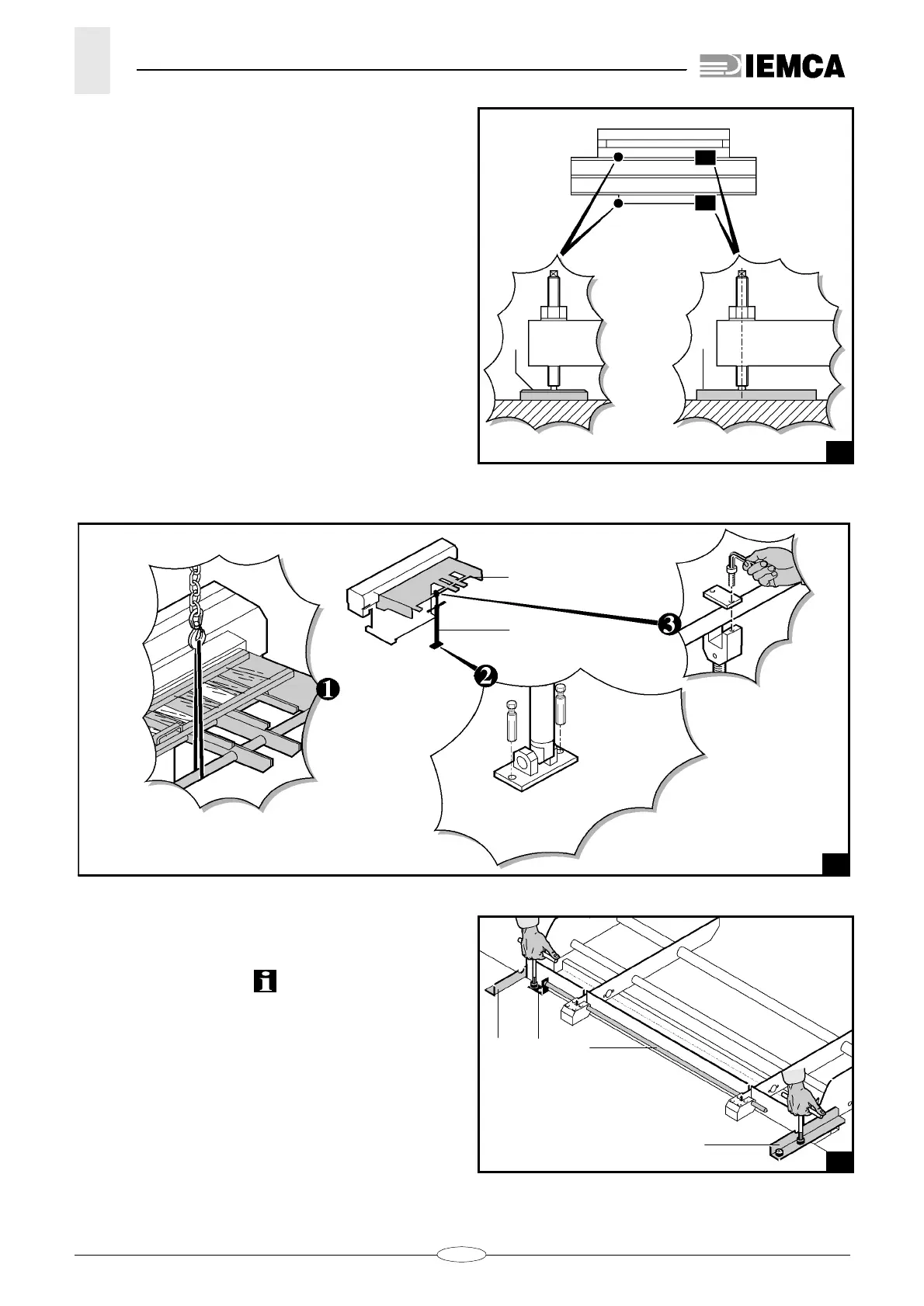

4.4. PREPARING THE BAR FEEDER FOR
INSTALLATION
Before positioning and installing the bar feeder close
to the lathe, do the following:
– Lift the bar feeder and assemble plates
A
and feet
B
(fig. 6).
– lift the magazine
C
and install the foot
D
as shown in
figure 7 ;
– insert the pin
E
(fig. 8). Install the keep plate
F
.
Remove the supports
G
.
Keep the supports (G) in case you need to transport the
feeder in the future.
6
28.025 Ec.1
A
B
7
28.022 Ec.1
C
•
D
8
28.023 Ec.0
G
F
G
•
•
E
