IEMCA VIP 80 - Working Cycle Description

TECHNICAL SPECIFICATIONS
2
302.028
- 8 -
P - Switch cabinet
it contains the electrical control panel.
Q - Bar passage guide (OPTIONAL)
this device, equipped with a guard, is necessary
whenever there is a considerable gap between the
feeder and the lathe.
It is used to guide the bar while it covers the
distance between the feeder and the lathe, thus
improving bar feeding into the spindle.

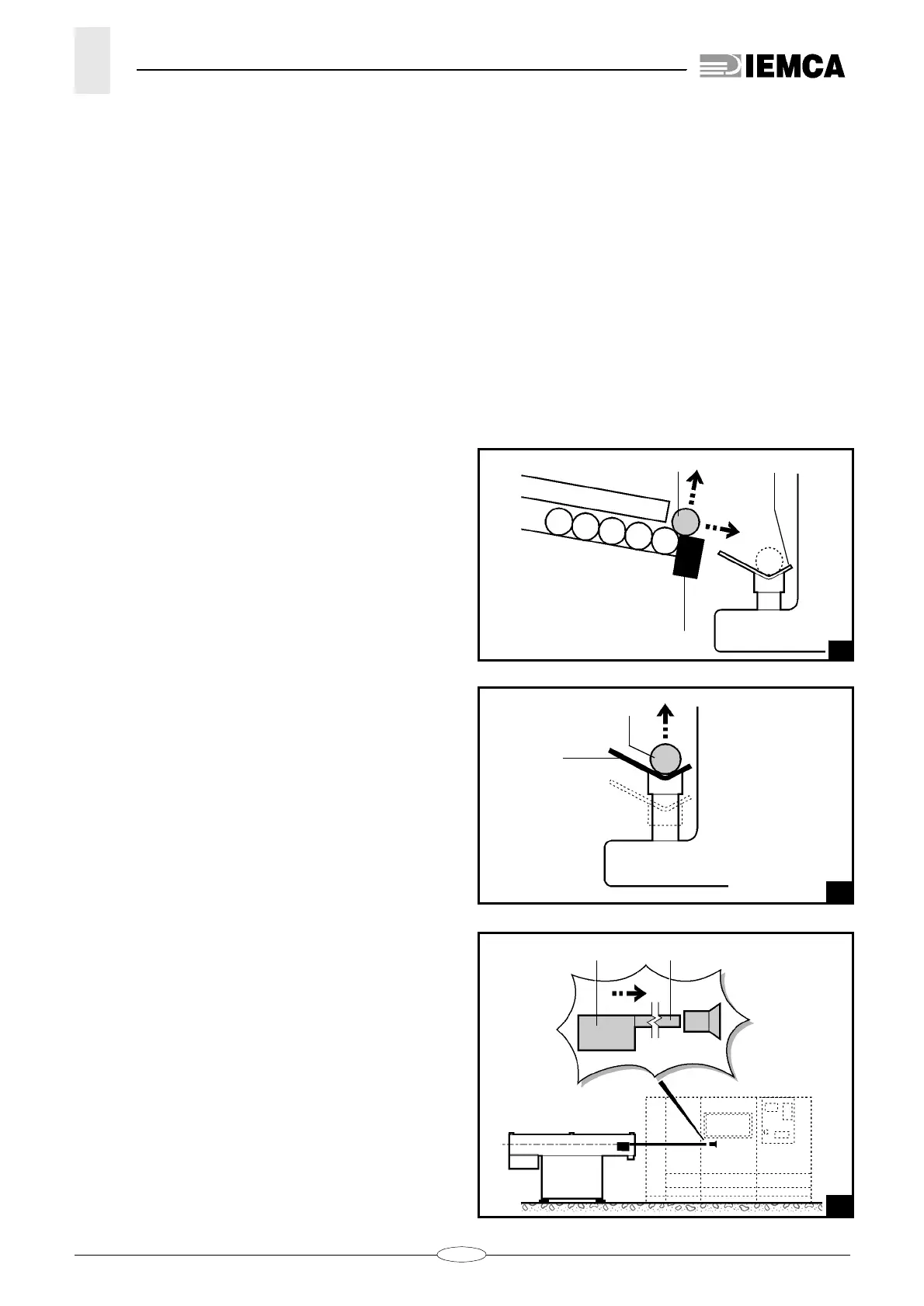

2.3. WORKING CYCLE - GENERAL
DESCRIPTION
The automatic control system controls machine
movements according to the following sequence:
– The bar lifting device
A
lifts the first bar
B
in the
magazine. The bar falls into guide
C
(fig. 2).
– The guide
C
rises. The axis of the bar
B
is
positioned along the spindle axis (fig. 3).
– The prefeed carriage
D
inserts the bar
B
into the
lathe.
The prefeed carriage strokes back (fig. 4).
2
28.003 Ec.0
A
B
•
C
3
28.004 Ec.0
B
C
•
4
28_005_1
•
•
BD
