USE AND OPERATION
6
- 39 -
302.028
6.4. TOOLING AND STARTING THE AUTOMATIC
CYCLE - OPERATION SEQUENCE
Bar feeder tooling and automatic cycle starting
sequence for the first bar feeder start, are to be found
below.
– Adjust the feeder according to the type of bar to be
machined (paragraph 5.3.).
– Program the feeder according to the type of work to
be carried out (read the "Push-button panel opera-
tion guide").
– Prepare the bar stock (paragraph 6.3.).
– Load the bar magazine (paragraph 6.4.1).
– Start the automatic cycle (paragraph 6.4.2).
6.4.1 Bar magazine - Loading
CAUTION: do not lift any loads exceeding the weight
prescribed by the standards in force.

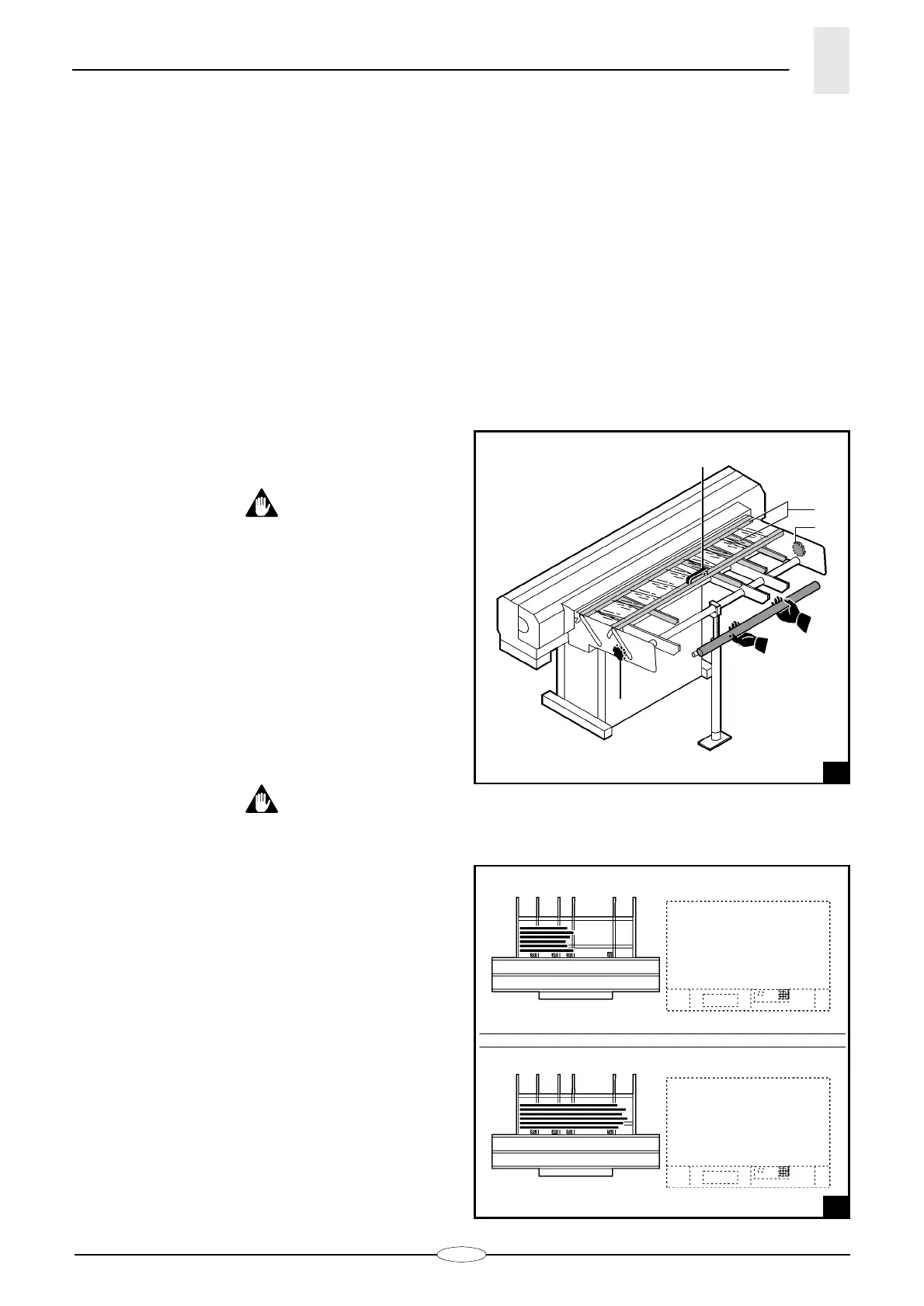

To load the bars in the magazine, proceed as follows:
– If necessary, lift the covering frame; loosen the two
knobs
A
(fig. 7) and lift the frame
B
using handle
C
.
– Load the magazine completely or in part, according
to your own needs.
When lowered, thick bars must be supported.
CAUTION: max. total allowed weight of bars loaded in
magazine is 240 Kg.
– Place the bars in the magazine as shown in figure 8:
A
- arrangement for short bars
B
- arrangement for long bars.
