USE AND OPERATION
6
302.028
- 40 -

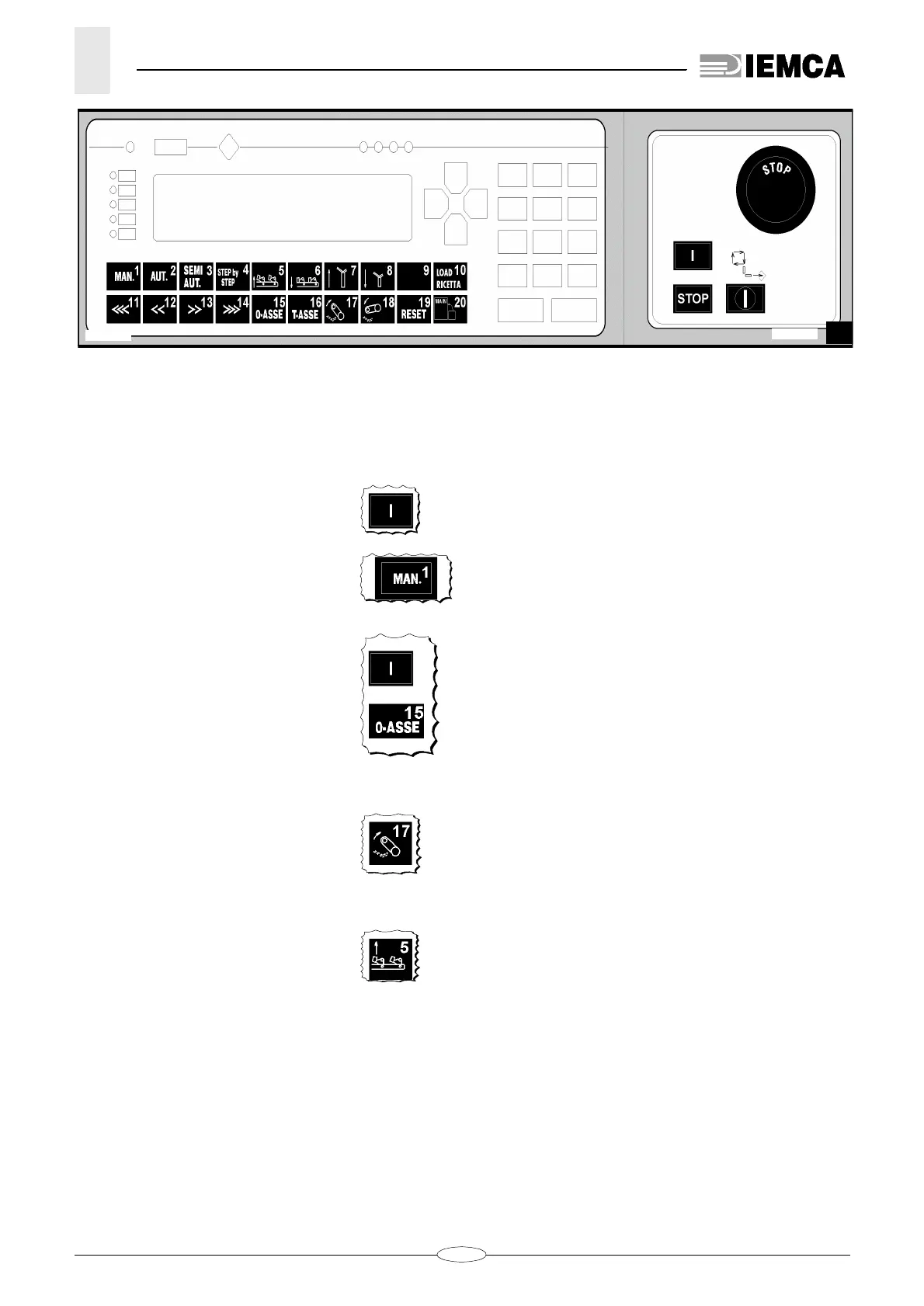

6.4.2 Starting the automatic cycle
(fig. 9)
– Switch on power supply from lathe.
– To start bar feeder press
(till indicator turns on)
– Press
to select the manual function.
– Perform the "BAR FEEDER ZERO
SETTING" as follows:
press
– Press
to lift the bar pusher.
– Press
to drop the first bar into the guide.
