IEMCA VIP 80 - Safety Devices; Safety Labels

TECHNICAL SPECIFICATIONS
2
- 11 -
302.028

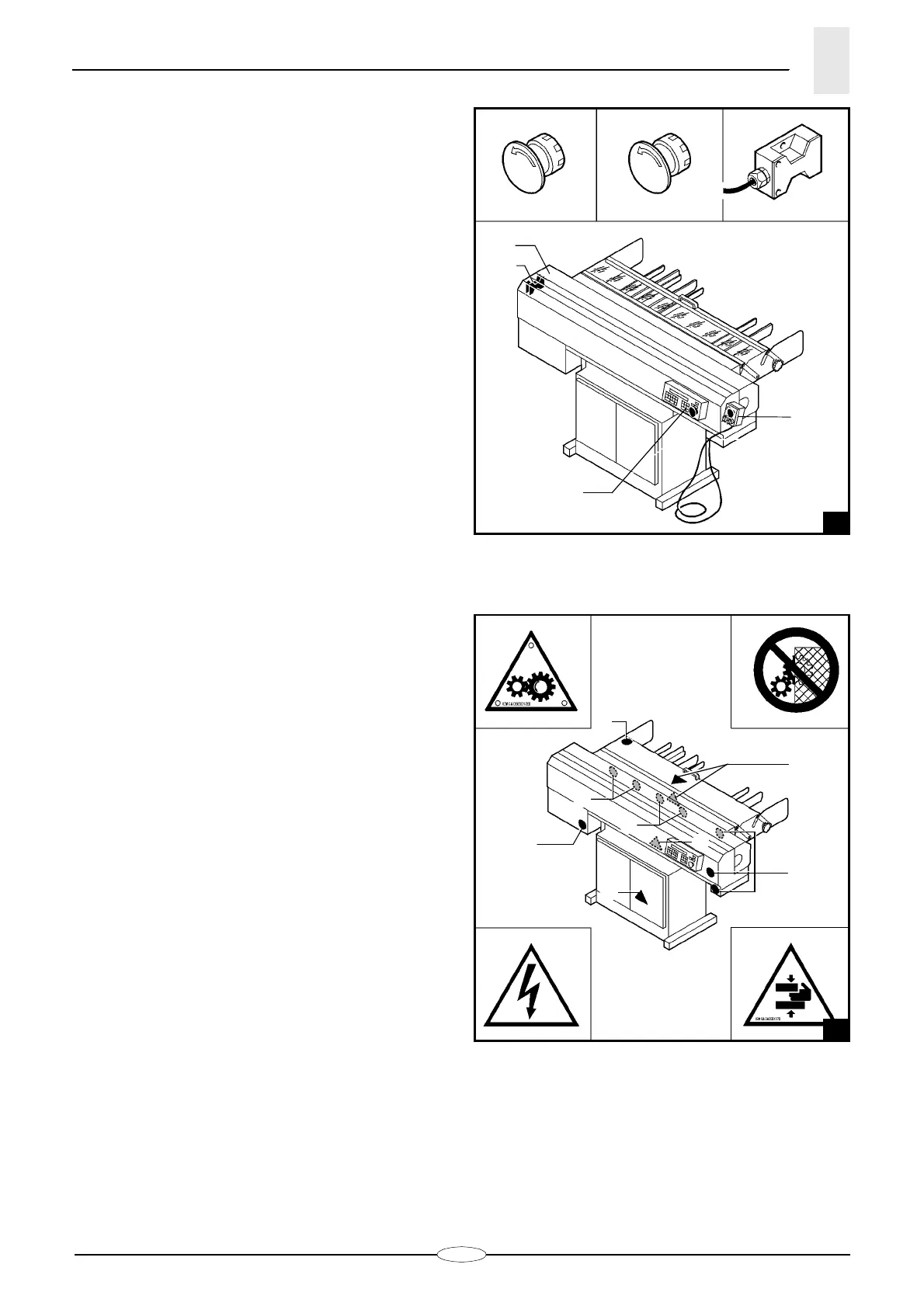

2.4. SAFETY DEVICES
(fig. 12)
A - Emergency button S85;
in an emergency, press it to stop all feeder/lathe
functions.
B - Emergency button S86;
in an emergency, press it to stop all feeder/lathe
functions.
C - Interlocked mobile guard
: it is connected to the
microswitch
S61
.
When the guard is opened, the feeder/lathe func-
tions are disabled.
By closing the guard back, the user can restart the
cycle.
2.5. SAFETY LABELS - POSITION AND
DESCRIPTION
(fig. 13)
A-
Caution: working parts.
B-
Do not remove the safety barriers.
C-
Caution: danger of electric contact.
D-
Danger of upper limbs crushing.
12
28_013_2
S85 S86 S61
•
C
S61
A-S85
B-S86
13
28_014_2
A B
C D
B
B
C
B
B
B
A
D
