TECHNICAL SPECIFICATIONS
2
302.028
- 10 -

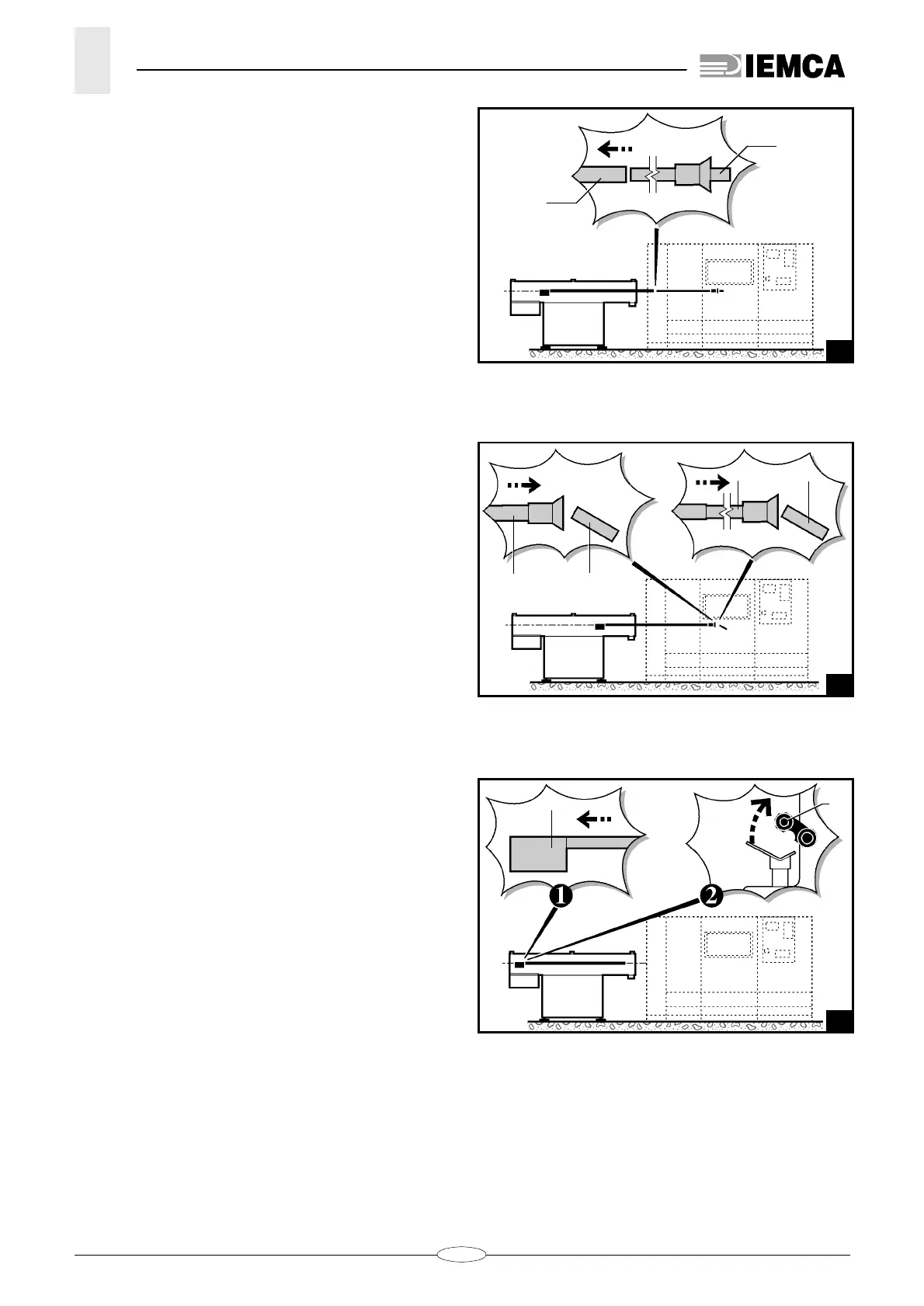

– After each feeding, the bar pusher
E
moves back
from the bar
B
(fig. 9).
– The bar remnant
F
is ejected either directly by the
bar pusher
E
or by the next bar
G
which is fed
on (fig. 10).
– The bar pusher
E
strokes back and rises (fig. 11).
– The feeder begins a new automatic working cycle.
