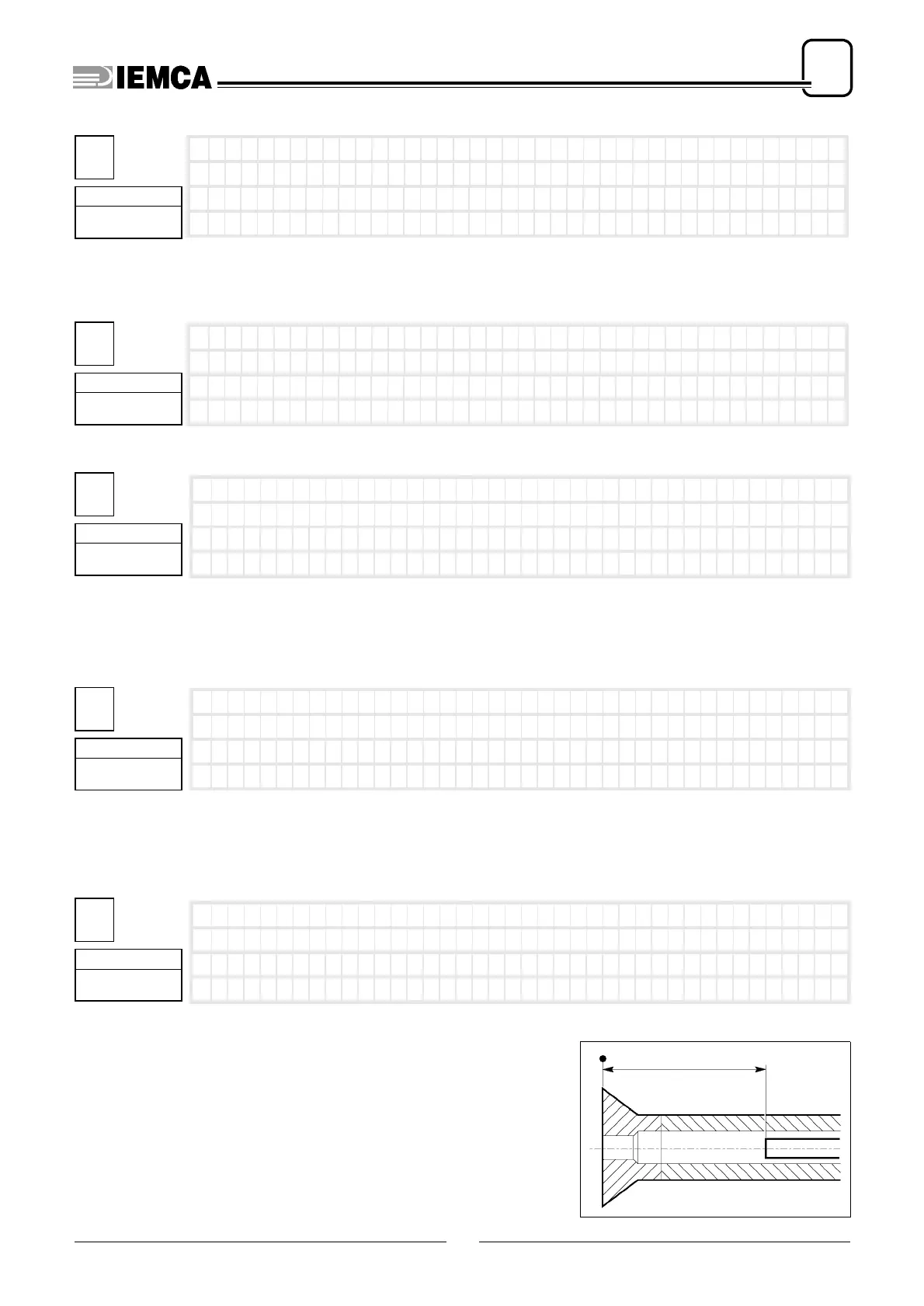

IEMCA VIP 80 - Page 83

21
2
INSTALLATION PROCEDURE
302.061
It defines the speed value in “FEEDING”. Accepted values range from 0 to 500 mm/sec.
Acceleration related to
parameter 7
. Accepted values range from 0 to 500 mm/sec
2
.
At the “FEEDING” signal from the lathe, the bar pusher keeps running for the
set time.
Example of application: It must be used when the mechanical opening
movement of the collet is slow (double-cone collet).
After the issue of the “COLLET CLOSED” signal by the lathe, the bar pusher
continues to push for the set time.
Example of application: it must be used when the mechanical closing
movement of the collet is slow (double-cone collet).
Defines the length of the slow speed section before the entry into the
collet. This value is referred to point
C
(facing point).
Along this section the bar moves at the collect entry speed (
parameter 12
).
7
Phase
machining
:> 200(mm/ sec)
no.7 Open collet spe
ed
(100)
8
Phase
machining
:> 500(mm/ sec*sec)
no.8 Open collet acc
eleration
(280)
9
Phase
machining
:> 0(sec)
no.9 Open collet thr
us t de lay
10
Phase
machining
:> 1(sec)
no.10 Closed collet
thrust delay
11
Phase
bar change
:> 200(mm)
( inches )
no.11 Collet entry s
lowing down
C
Parameter 11
