30
2
INSTALLATION PROCEDURE
302.061
When the bar feeder reaches the “BAR END” position, it activates relay K1,
lathe “COLLET CLOSING”.
With the next “COLLET OPENING”, the bar feeder receives the “FEEDING”
and “BAR CHANGE” signals”.
Relay K13 activates through the “FEEDING” signal following the “BAR END”
signal.
“BAR CHANGE-OVER” signal activates relay K19B only.

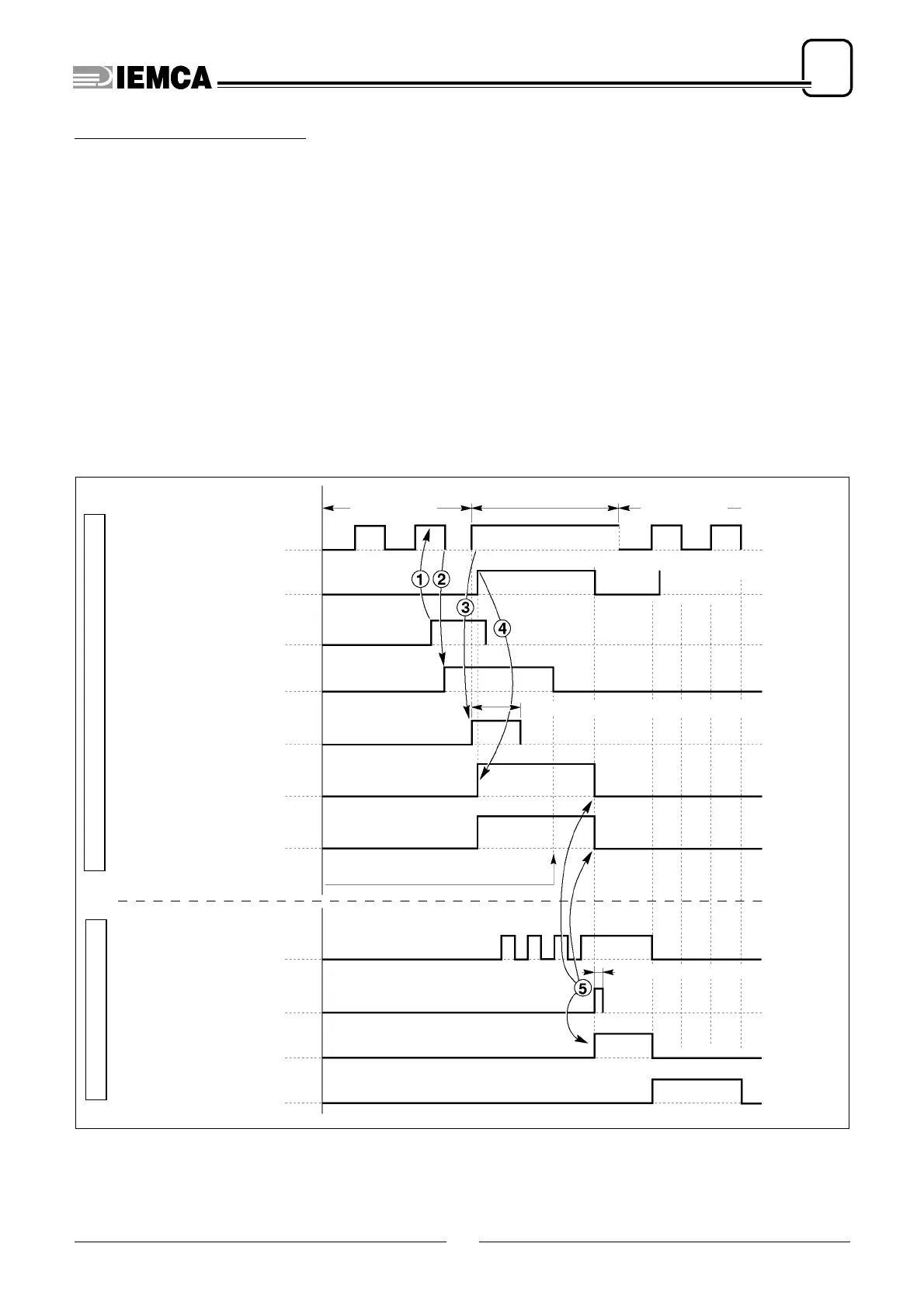

Interface signal cycle diagram
2 - (K13 IMMEDIATE)
61.028 Ec.0
MACHINING
Feed (OPEN COLLET)
BAR CHANGE-OVER
parameter
1
End of material detected by the encoder
K1
BAR END
K13
CYCLE STOP
K19B
CONTINUOUS CYCLE STOP
BAR CHANGE-OVER
BAR CHANGE-OVER CYCLE
t
(time adjustable through parameter 38)
t (time adjustable through parameter 37)
K15
CYCLE START
K10
1ST CYCLE DESACTIVATION
K10A
2ND CYCLE DESACTIVATION
K29
SPINDLE IMPULSES
CYCLE START
MACHINING
Bar feeder at the rear limit switch
SPINDLE STOP
K30
