3.2.6.2. Programming Serial Flash Devices using the JTAG Interface
The Intel Quartus Prime Programmer interfaces to the SDM device through JTAG interface and programs the serial flash
device. The SDM emulates AS programming.

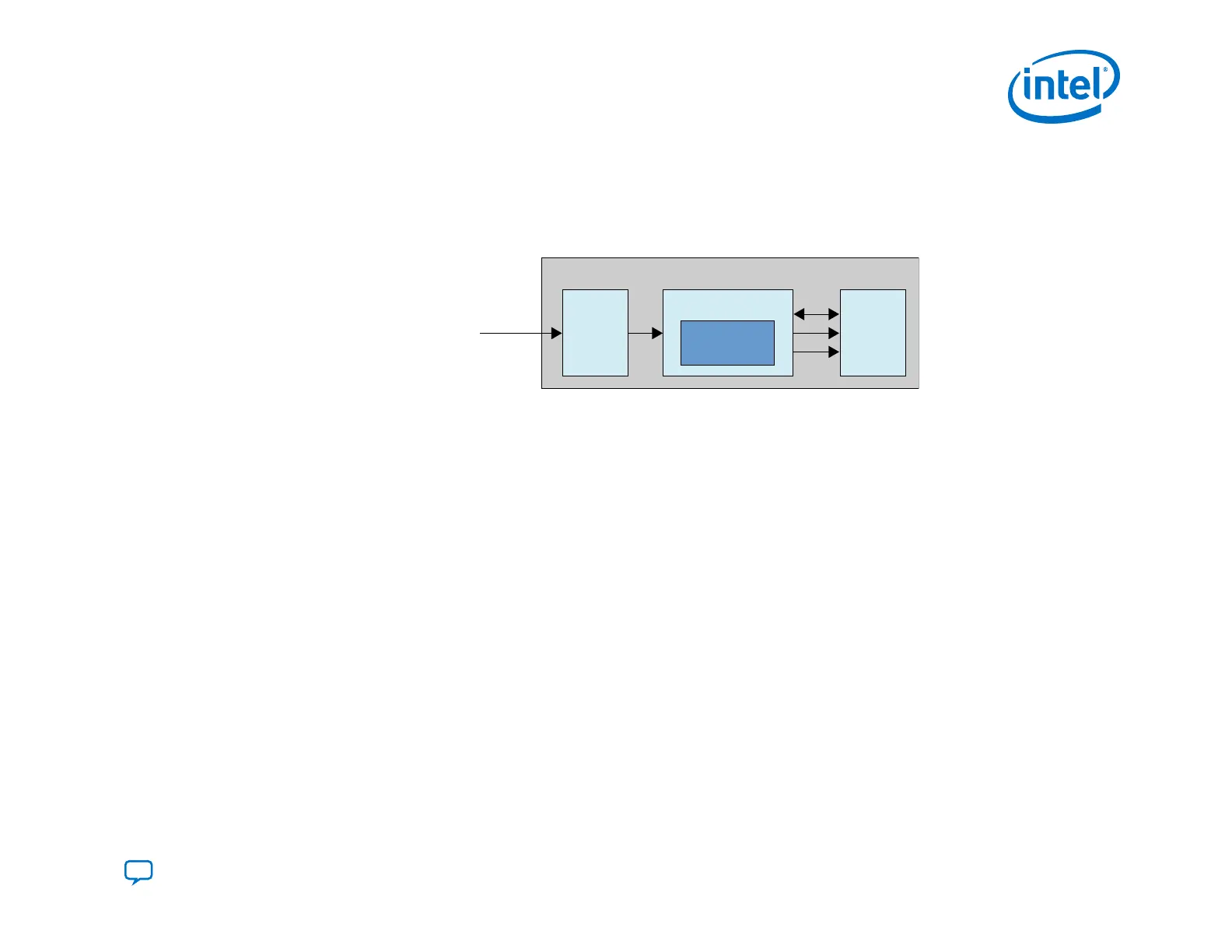

Figure 40. Programming Your Serial Configuration Device Using JTAG and SDM Emulation of AS
Intel FPGA
Board
Secure Device
Manager
AS x4
Flash
JTAG
Interface
JTAG
Programmer
