4.4.4. The Flash Tab
The Flash Tab allows you to read and write flash memory on your board. The
memory table will display the CFI ROM table contents by default after you configure
the FPGA.

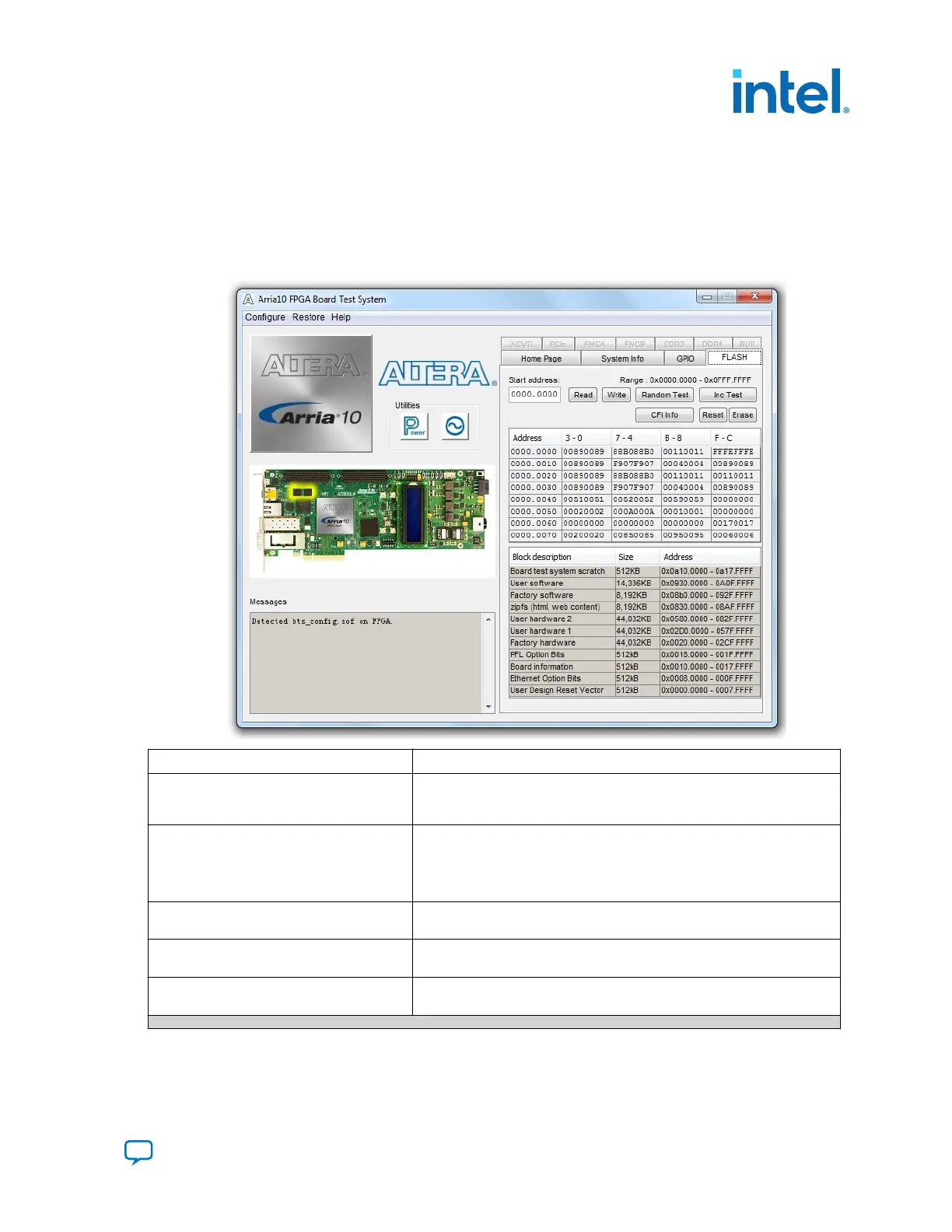

Figure 18. The Flash Tab
Control Description
Read Reads the flash memory on your board. To see the flash memory contents,
type a starting address in the text box and click Read. Values starting at
the specified address appear in the table.
Write Writes the flash memory on your board. To update the flash memory
contents, change values in the table and click Write. The application writes
the new values to flash memory and then reads the values back to
guarantee that the graphical display accurately reflects the memory
contents.
Random Test Starts a random data pattern test to flash memory, limited to the 512 K
test system scratch page.
CFI Query Updates the memory table, displaying the CFI ROM table contents from the
flash device.
Increment Test Starts an incrementing data pattern test to flash memory, limited to the
512 K test system scratch page.
