4.4.3. The GPIO Tab
The GPIO tab allows you to interact with all the general purpose user I/O components
on your board. You can write to the character LCD, read DIP switch settings, turn LEDs
on or off, and detect push button presses.

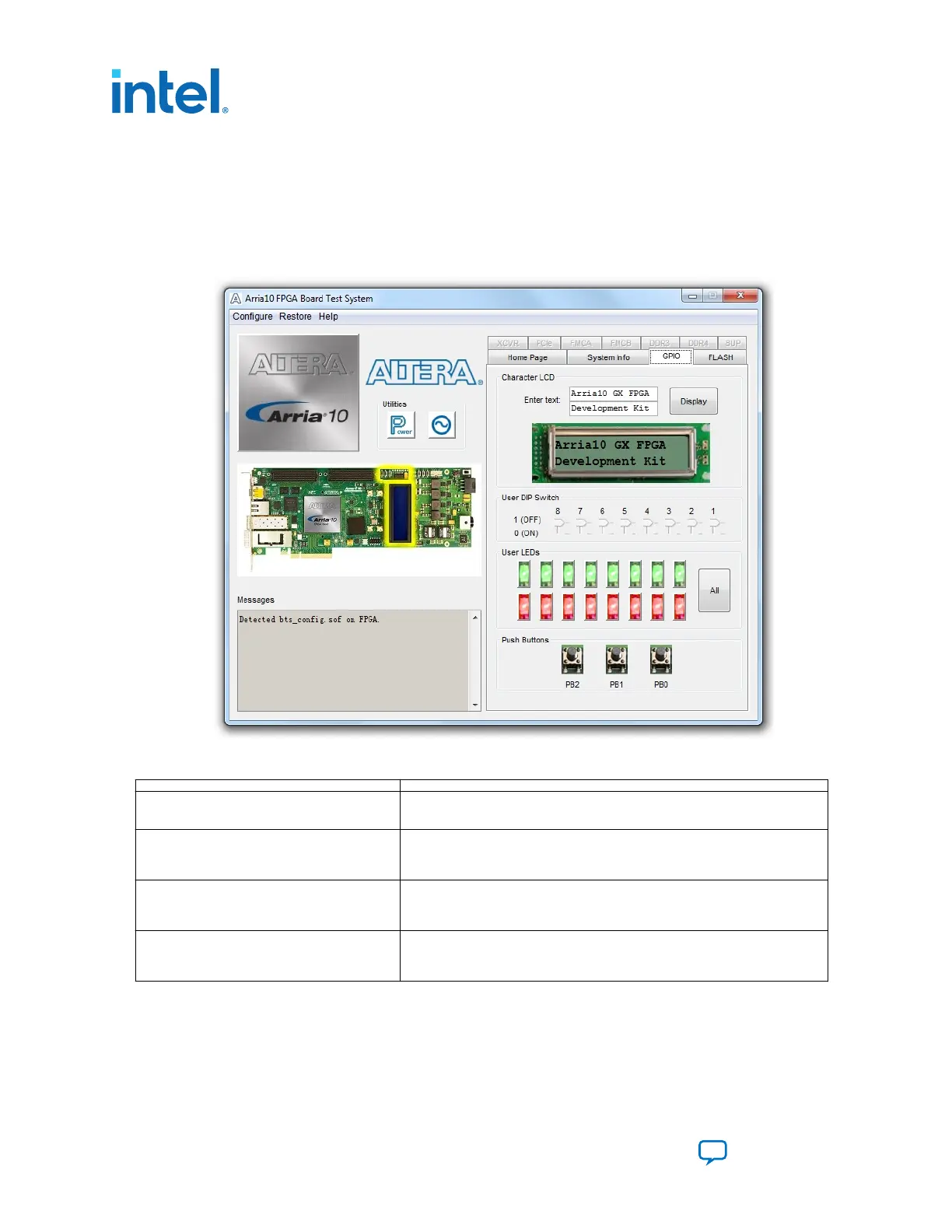

Figure 17. The GPIO Tab
Table 14. Controls on the GPIO Tab
Character LCD Allows you to display text strings on the character LCD on your board.
Type text in the text boxes and then click Display.
User DIP Switch Displays the current positions of the switches in the user DIP switch bank
(SW2). Change the switches on the board to see the graphical display
change accordingly.
User LEDs Displays the current state of the user LEDs for the FPGA. To toggle the
board LEDs, click the 0 to 7 buttons to toggle red or green LEDs, or click
the All button.
Push Button Switches Read-only control displays the current state of the board user push
buttons. Press a push button on the board to see the graphical display
change accordingly.
4. Board Test System
683526 | 2023.07.12
Intel
®
Arria
®
10 FPGA Development Kit User Guide
Send Feedback
28
