4.4.8. The FMC B Tab
This tab allows you to perform loopback tests on the FMC B port.

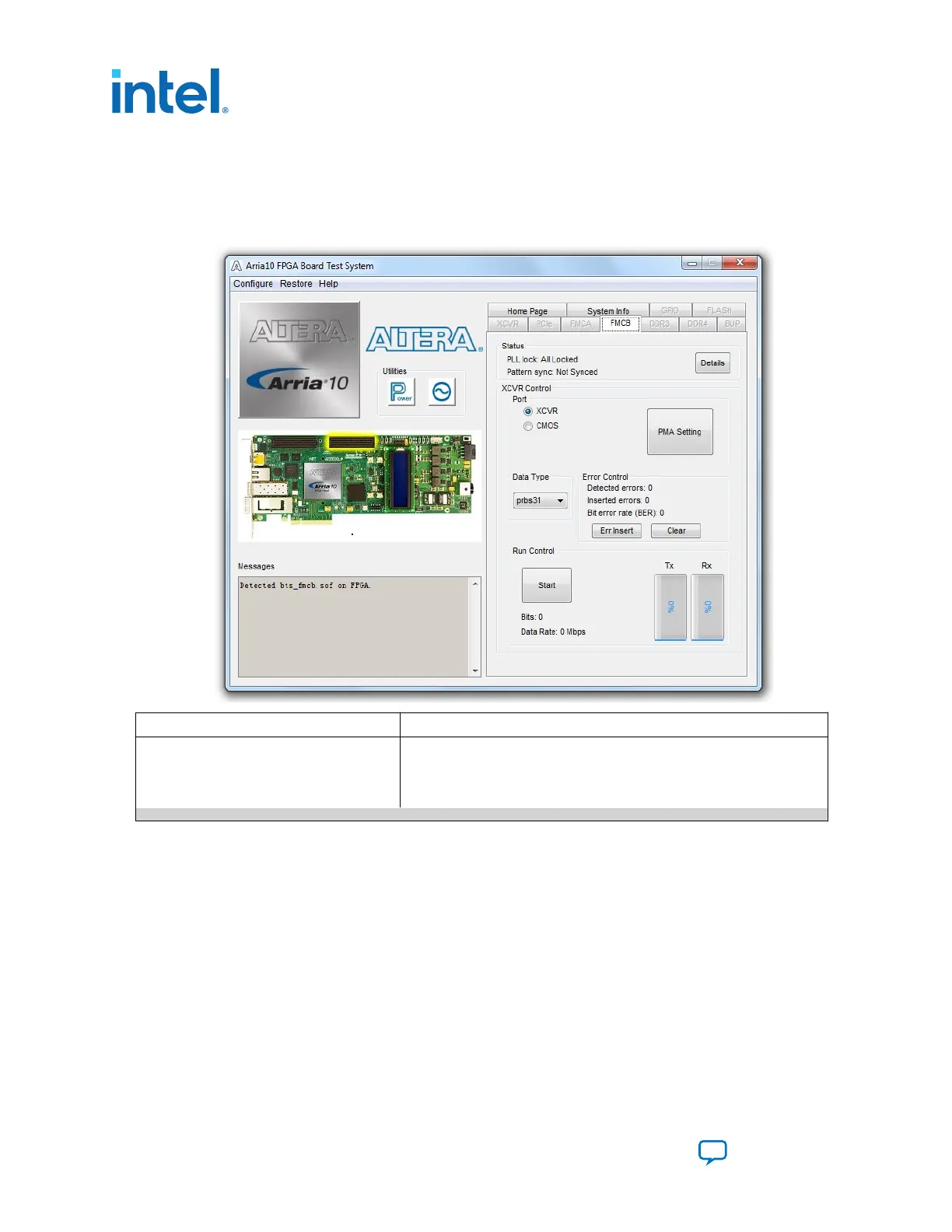

Figure 23. The FMC B Tab
Control Description
Status Displays the following status information during a loopback test:
PLL lock—Shows the PLL locked or unlocked state.
Pattern sync—Shows the pattern synced or not synced state. The pattern
is considered synced when the start of the data sequence is detected.
continued...
4. Board Test System
683526 | 2023.07.12
Intel
®
Arria
®
10 FPGA Development Kit User Guide
Send Feedback
40
