Intermec EasyCoder PX4i - Page 42

Chapter 4 — Loading Media
EasyCoder PX4i Bar Code Label Printer User’s Guide (Fingerprint Version) 27

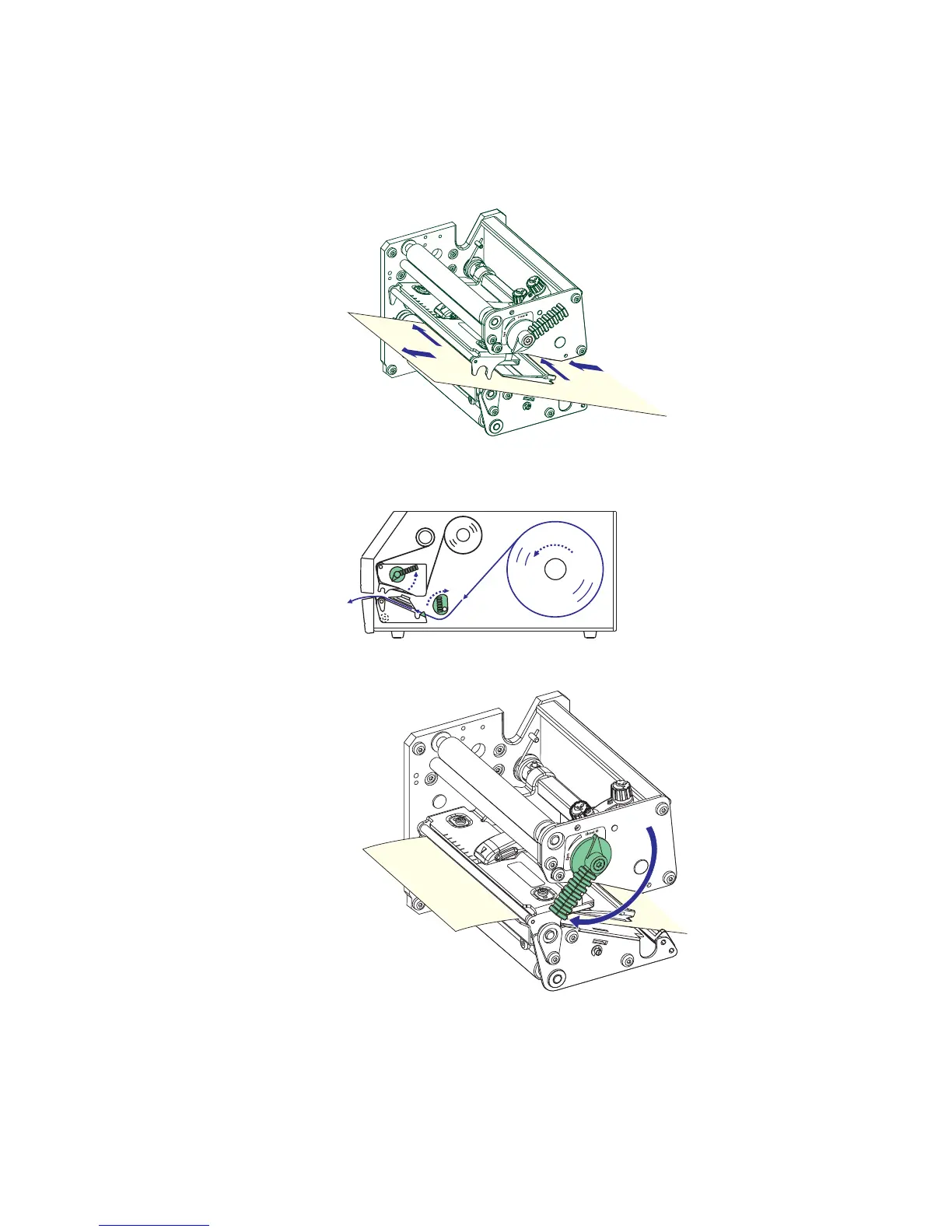

7 Route the media through the print unit and push it inwards
as far as it will go.
8 This diagram shows the path the media will take through the
printer.
9 Turn the printhead lift lever to the “closed” position.
