Chapter 4 — Loading Media
EasyCoder PX4i Bar Code Label Printer User’s Guide (Fingerprint Version) 45

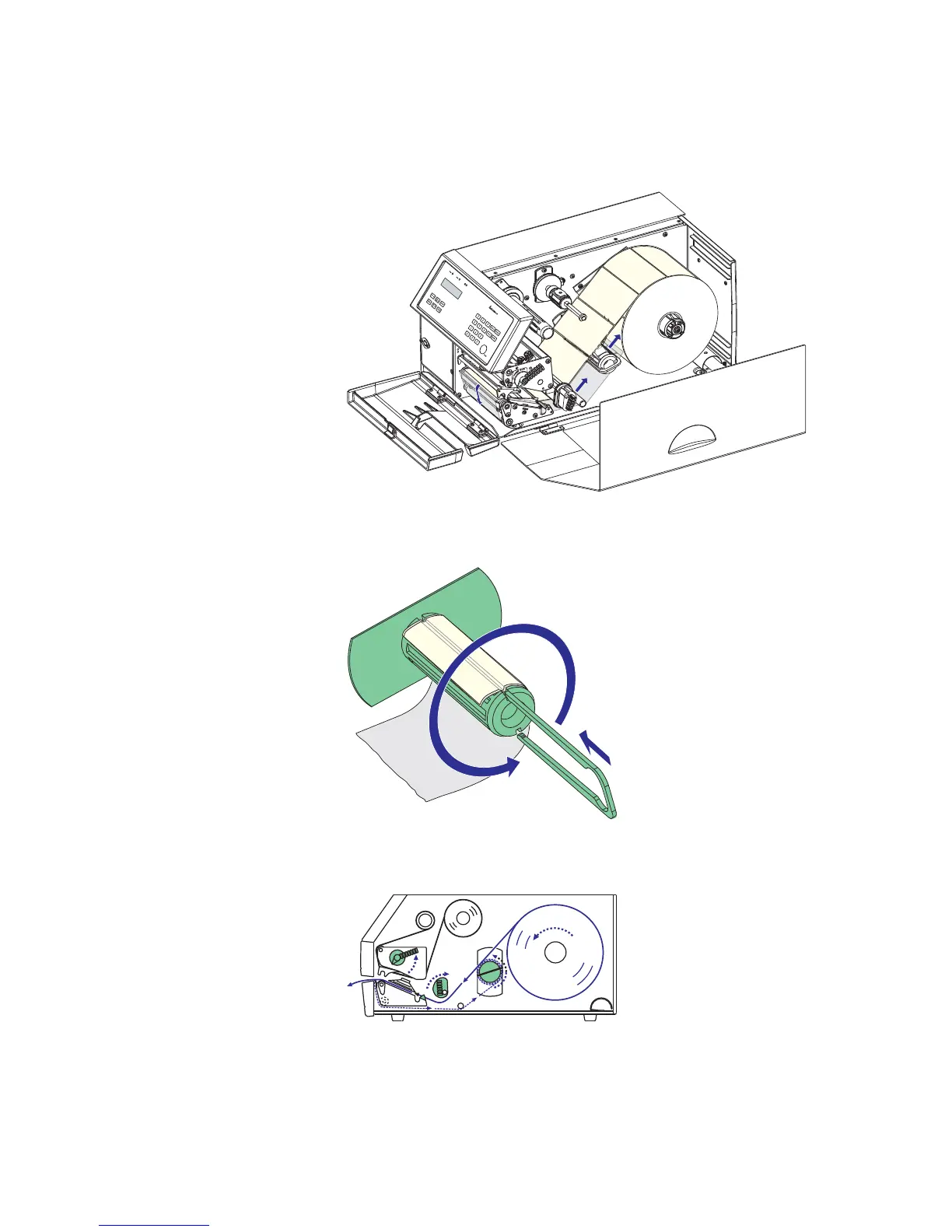

11 Route the labels around the guide plate and back under the
print unit to the takeup hub
12 Wind up some of the media on the takeup hub (1) and secure
it with the green clip (2).
13 This diagram shows the path the media will take through the
printer.
E
a
s
y
C
o
d
e
r
P
X
4
i
2.
1.
