Intermec EasyCoder PX4i User Manual

Chapter 5 — Loading Ribbon for Thermal Transfer Printing
54 EasyCoder PX4i Bar Code Label Printer User’s Guide (Fingerprint Version)

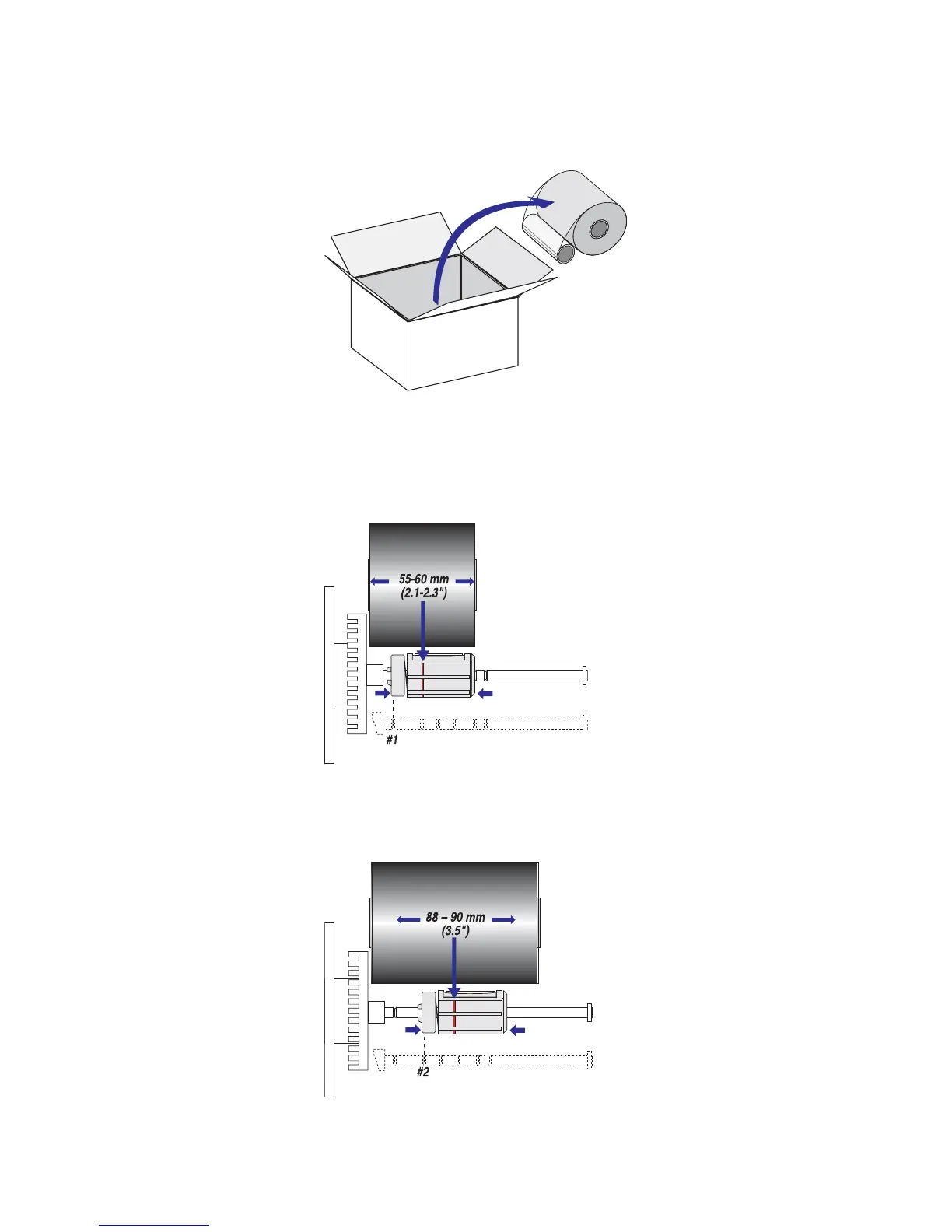

4 Unpack a roll of original Intermec thermal transfer ribbon.
5 Adjust the ribbon supply bobbin for your ribbon:
a If your ribbon is 55 to 60 mm (2.16 to 2.3 in) wide, compress
the ribbon supply bobbin and move it so it snaps into the first
(innermost) groove.
b If your ribbon is 88 to 90 mm (3.5 in) wide, compress the
ribbon supply bobbin and move it so it snaps into the second
groove.

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
