Interroll RM 8310 - Roller Pitch Outside, Roller Diameter; Nameplate

Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Product identification
Version 1.5 (07/2020) en
Translation of original operating instructions
21
Roller pitch outside,
roller diameter
Clearance
(BF)
1st pitch outside
(P1)
Roller pitch outside
(P)
Roller diameter outside
(D1)
300 49.035 98.07 71.2
420 54.255 108.51 77.6
540 59.475 118.95 84
620 62.955 125.91 90.4
720 67.305 134.61 96.8
840 72.525 145.05 103.2
960 77.745 155.49 109.6
1020 80.355 160.71 109.6

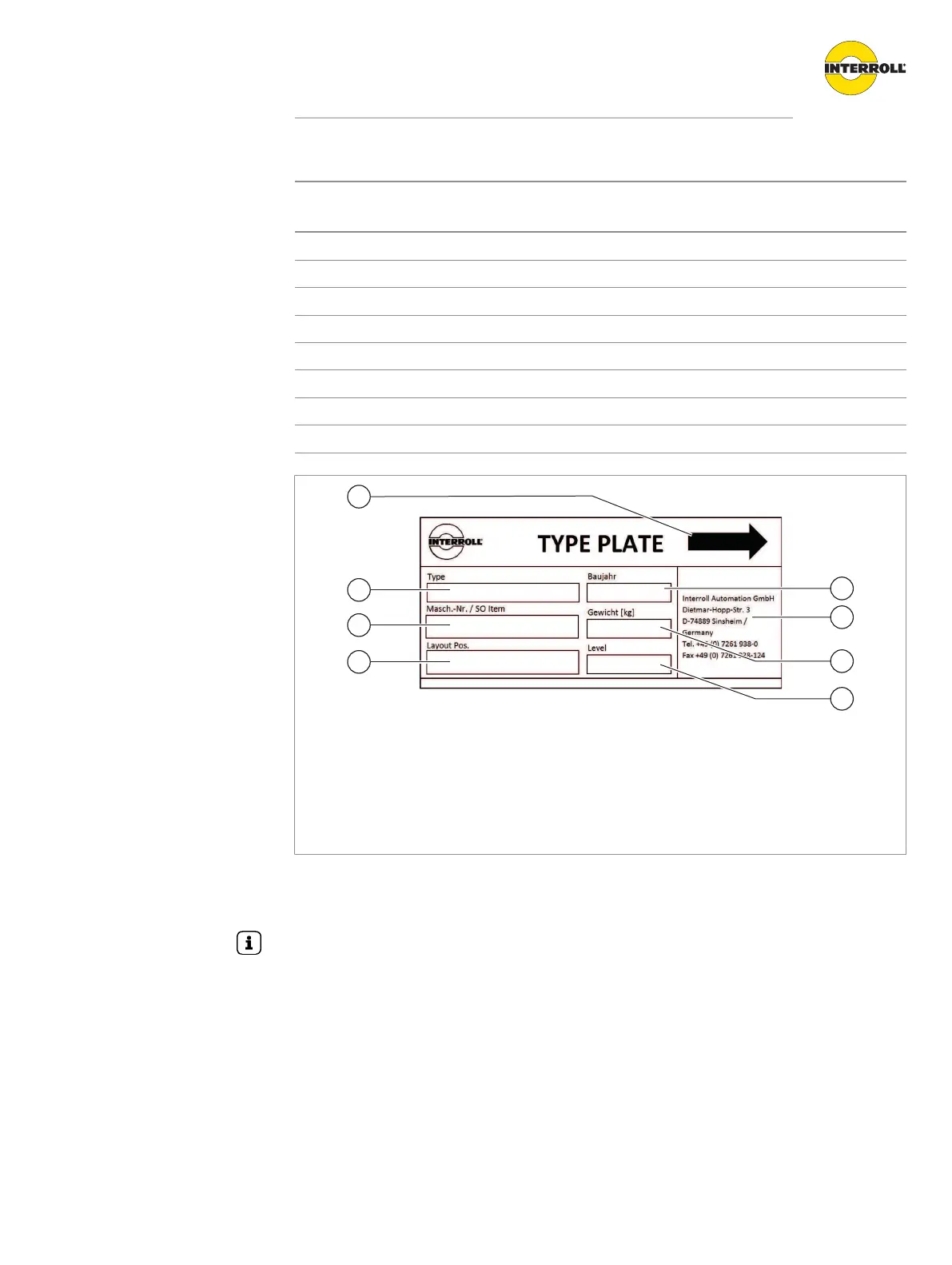

Nameplate
8
3
1
2
4
5
6
7
Nameplate (with arrow in transport direction)
1 Arrow in transport direction 5 Year of construction
2 Type designation 6 Company address
3 Machine no. 7 Weight in kg
4 Layout item no. 8 Level
The information on the nameplate is used to identify the conveyor. The type designation is
required to use the conveyor according to its intended use.
The nameplate is located at the end of the conveyor in the right side frame in transport
direction.
