Interroll RM 8310 - Replacing the Carrying Idler in the Straight Line and Merge

Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Maintenance and repair
56 Version 1.5 (07/2020) en
Translation of original operating instructions

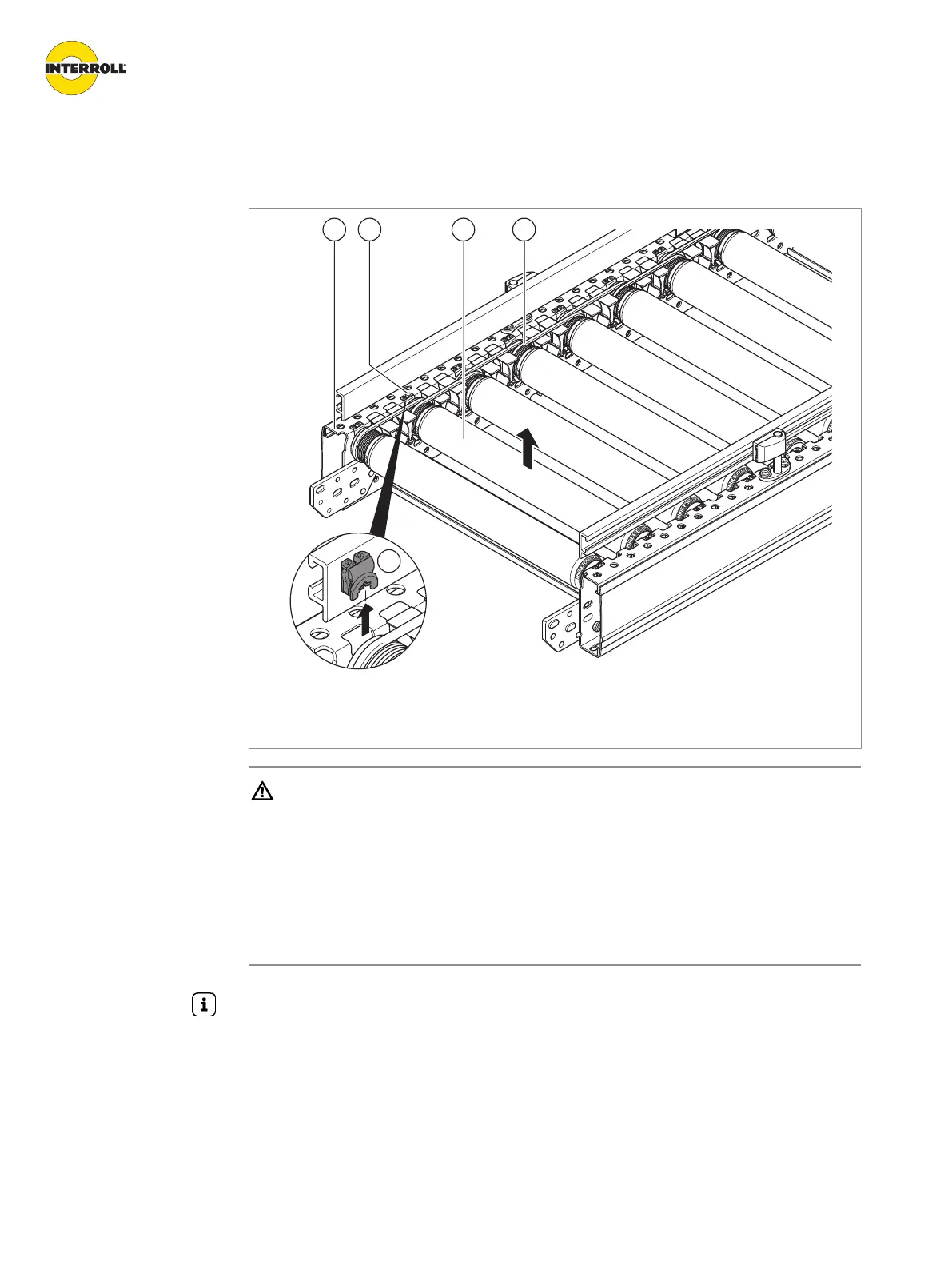

Replacing the carrying idler in the straight line and merge
43
1
2
2
1 Side frame 3 Carrying idler
2 Roller clip 4 Drive belt (PolyVee belt)
CAUTION
Risk of crushing from rotating parts
4 Before any assembly and maintenance work, the respective devices must be
decommissioned and disconnected from the voltage supply.
4 Secure the respective devices against accidental activation.
4 When integrating the module into a complete system, consider possible danger spots,
particularly infeed locations and interfaces.
The pocket holes for carrier rollers and RollerDrive are closed with clips after the installation:
4 Close the pocket holes over the carrier rollers using roller clips.
4 Close one of the pocket holes over the RollerDrive with a suitable clip. (The pocket hole on
the opposite side is closed by the tab.)
4 Optional: Close empty pocket holes with a dummy clip.
