Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Installation
Version 1.5 (07/2020) en
Translation of original operating instructions
41
Installing the rigid universal support

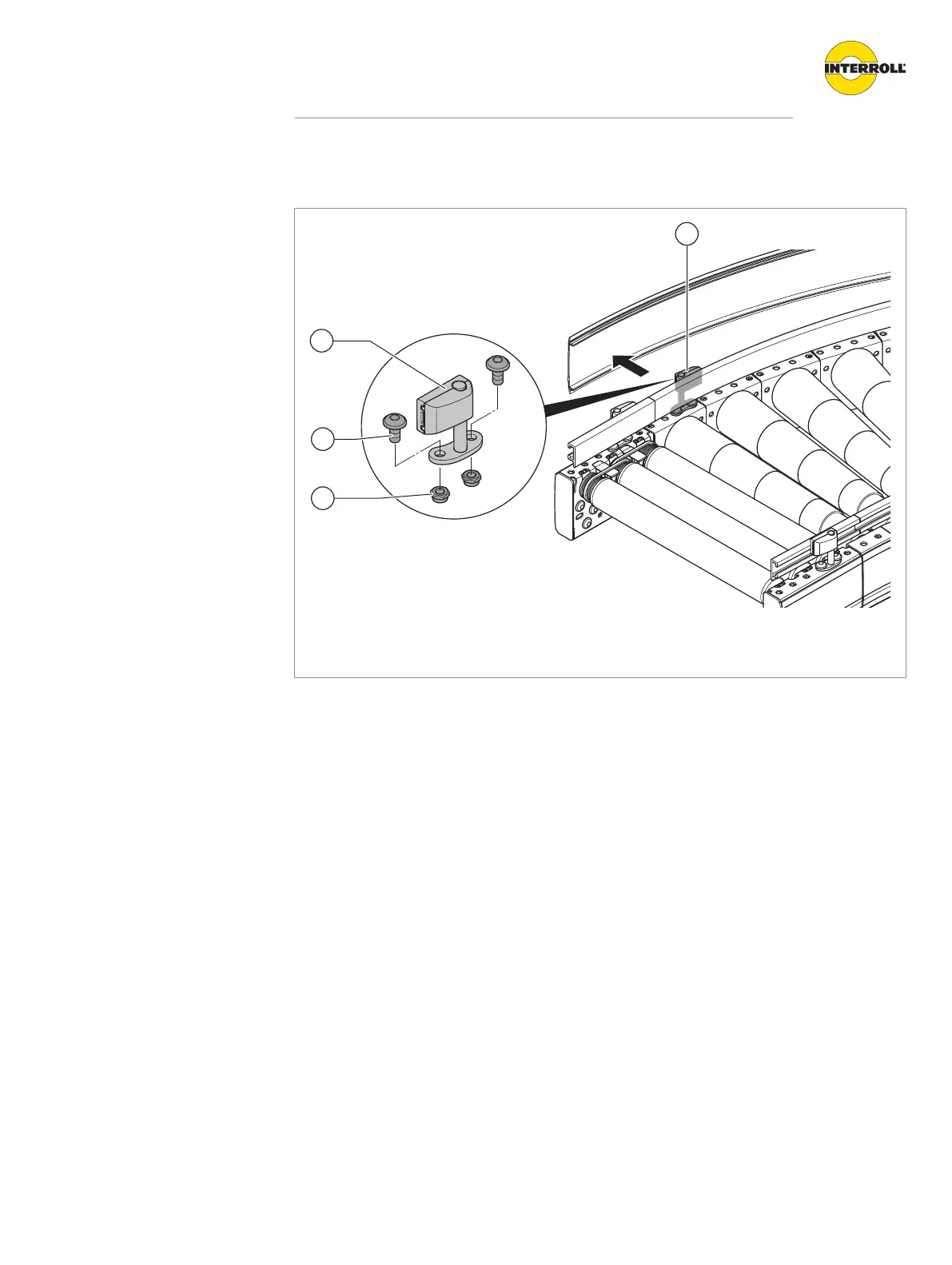

1 Rigid universal support 3 Screws
2 Side guide bracket 4 Nuts
The rigid universal support is installed on the perforated profile of the side frame from the top.
Requirement:
R The module is shut down.
4 Remove the side frame cover from the module.
4 Position the rigid universal support and place it on the perforated profile of the side frame.
4 Fasten the rigid universal support with two screws and two nuts.
4 Reattach the side frame cover.
