Interroll RM 8310 - Replacing the Rollerdrive (Straight and Merge)

Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Maintenance and repair
60 Version 1.5 (07/2020) en
Translation of original operating instructions
Replacing the RollerDrive (straight and merge)
21
3 4 5
679
18

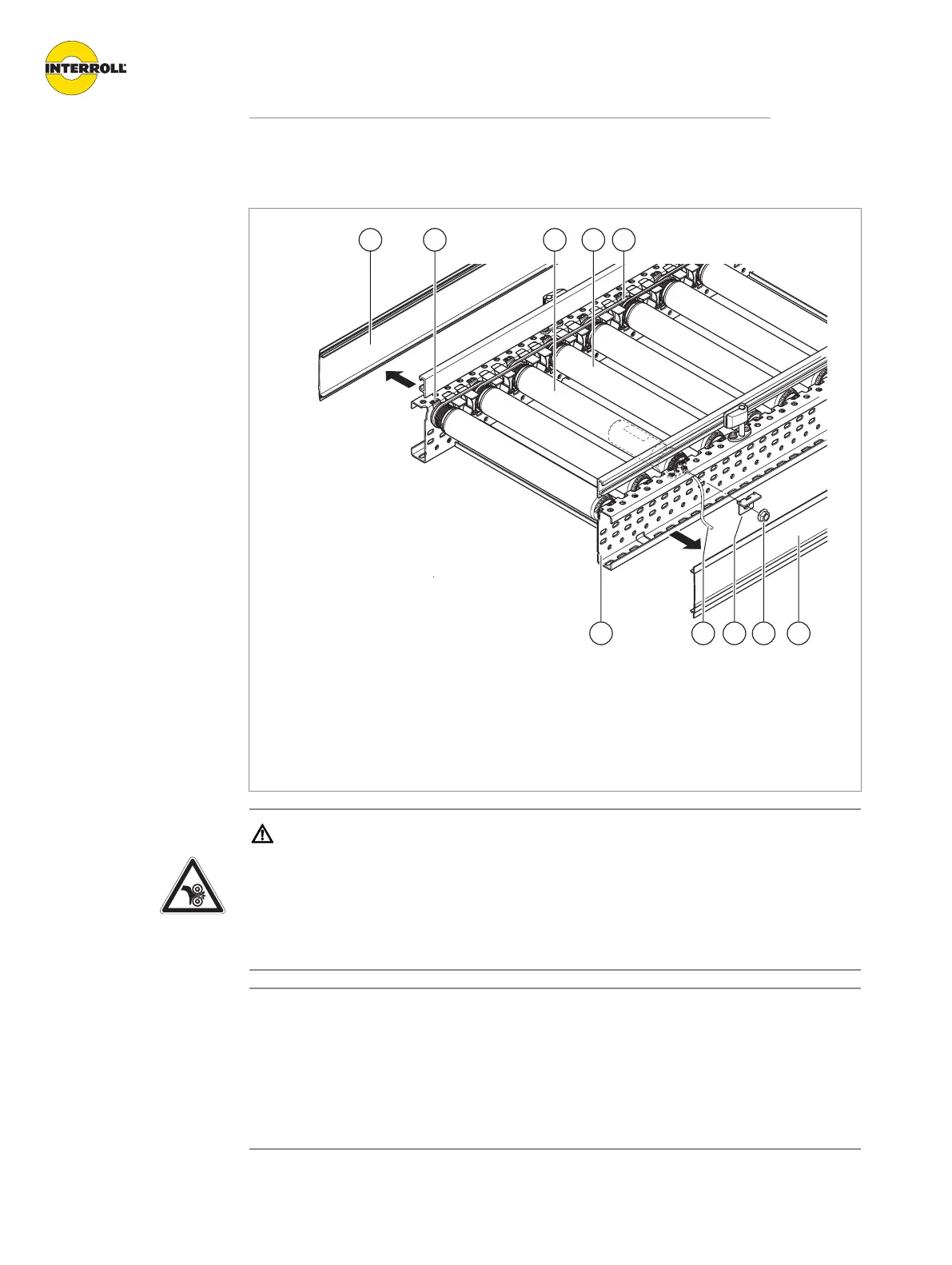

1 Side frame cover 6 Ribbed nut
2 Roller clip 7 Tab
3 RollerDrive 8 Motor connecting cable
4 Roller 9 Side frame
5 Drive belt (PolyVee belt)
CAUTION
Risk of crushing and electric shock
Installation and maintenance tasks on a conveyor system during its operation can lead to
crushing and electric shock.
4 De-energize the module and ensure that it cannot be started accidentally.
NOTICE
Destruction of the RollerDrive in case of incorrect connection values
Destruction of the motor electronics
4 Do not operate the RollerDrive EC5000 24VDC with 48VDC.
4 Observe the colored ring on the motor connector.
