Determining permissible dimensions
Between frames (BF) is the measure between the side frames.
Lane width (LW) is the measure between the side guides.
With fixed side guides, LW = BF. With flexible side guides, the LW dimension can be changed by
–90/+120mm.
=> BF – 90 ≤ LW ≤ BF + 120
The lane width of the conveyor for straight paths is at least the width of the transport
material + 20mm: LW = W + 20mm
NOTICE
Damage to the module or material!
Transport only material with permissible dimensions.
4 Determine the dimension between frames (BF) based on ordering documents. Check
dimensions, if necessary.
4 Select chart with matching lane width (LW).
4 Check whether the dimensions of the material are located below the characteristic curve for
the lane width (LW).
4 The lane width can also be determined with the formula:
R
a
= (R
i
+ W)
2
+ (L / 2)
2
.
4 If necessary, adjust lane width using the flexible side guides according to the dimensions of
the material.

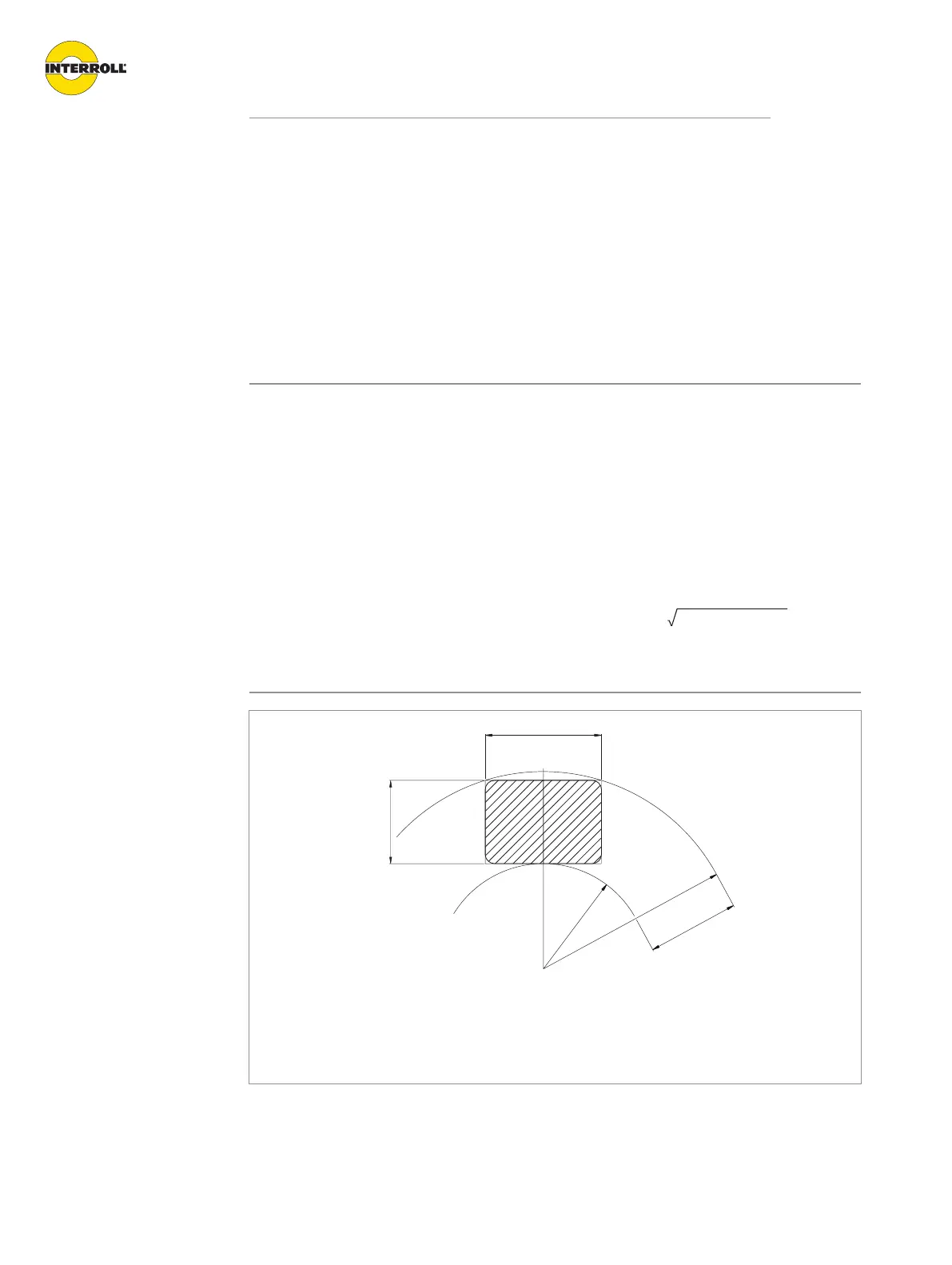

W
R
i
R
a
L
LW
R
a
Outside radius of curve for rectangular transport material in mm
R
i
Inside radius* of curve in mm
L Maximum length of transport material in mm
W Maximum width of transport material in mm
* The inside radius for our curves is always 825mm (deep freeze 791mm) and is measured at
the inside edge of the profile.
