Interroll RM 8310 - Replacing the Side Guide Support

Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Maintenance and repair
Version 1.5 (07/2020) en
Translation of original operating instructions
73

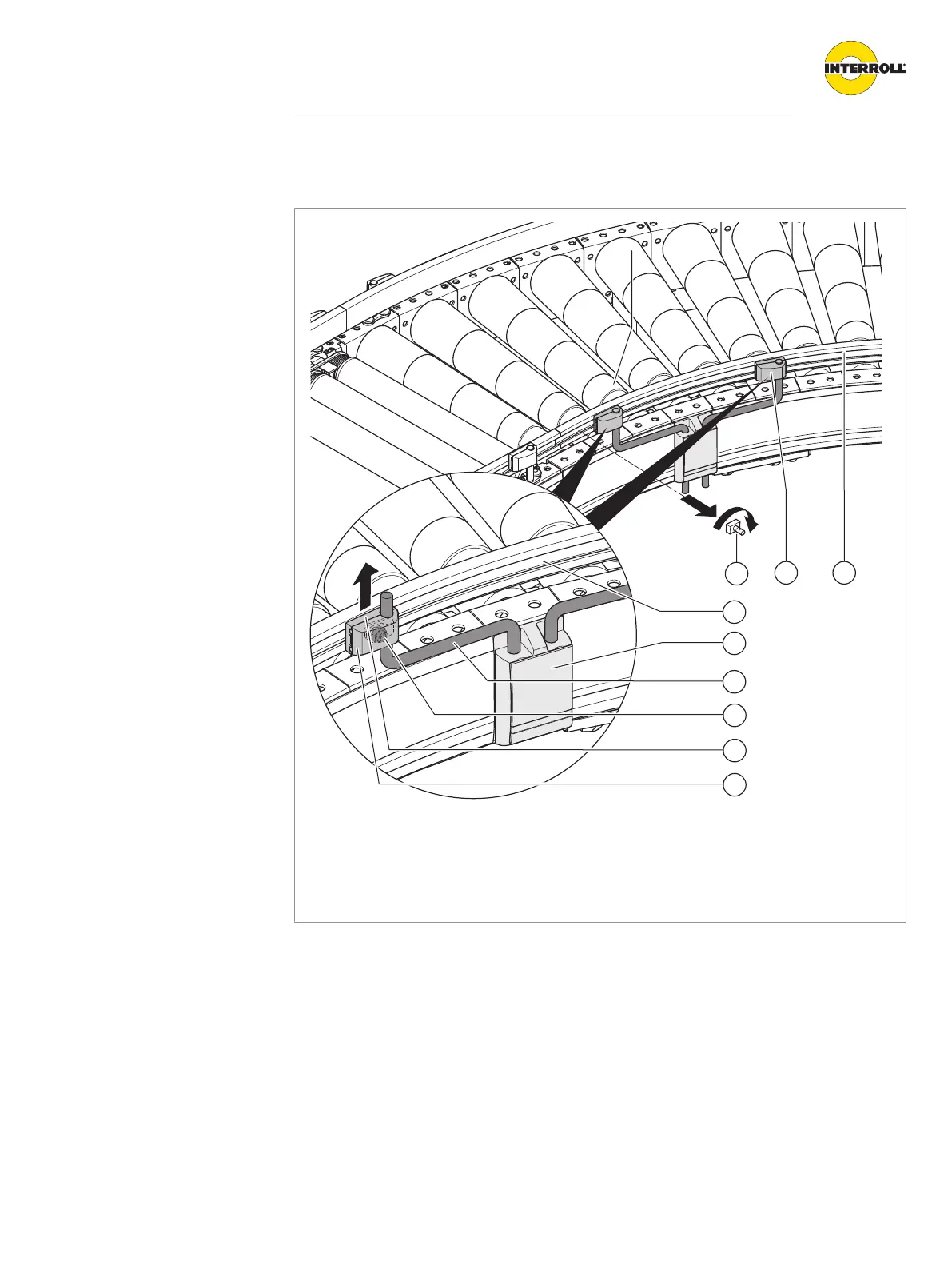

Replacing the side guide support
3
5
4
1
1
7
6
2
2
1 Side guide profile 5 Mounting bracket
2 Side guide bracket 6 Hexagon nut
3 Hammer head bolt 7 Side guide bracket cover
4 Flexible universal support
