Interroll RM 8310 - Replacing the Rollerdrive (Curve)

Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Maintenance and repair
Version 1.5 (07/2020) en
Translation of original operating instructions
63
Replacing the RollerDrive (curve)
1 2
43
7 56
2

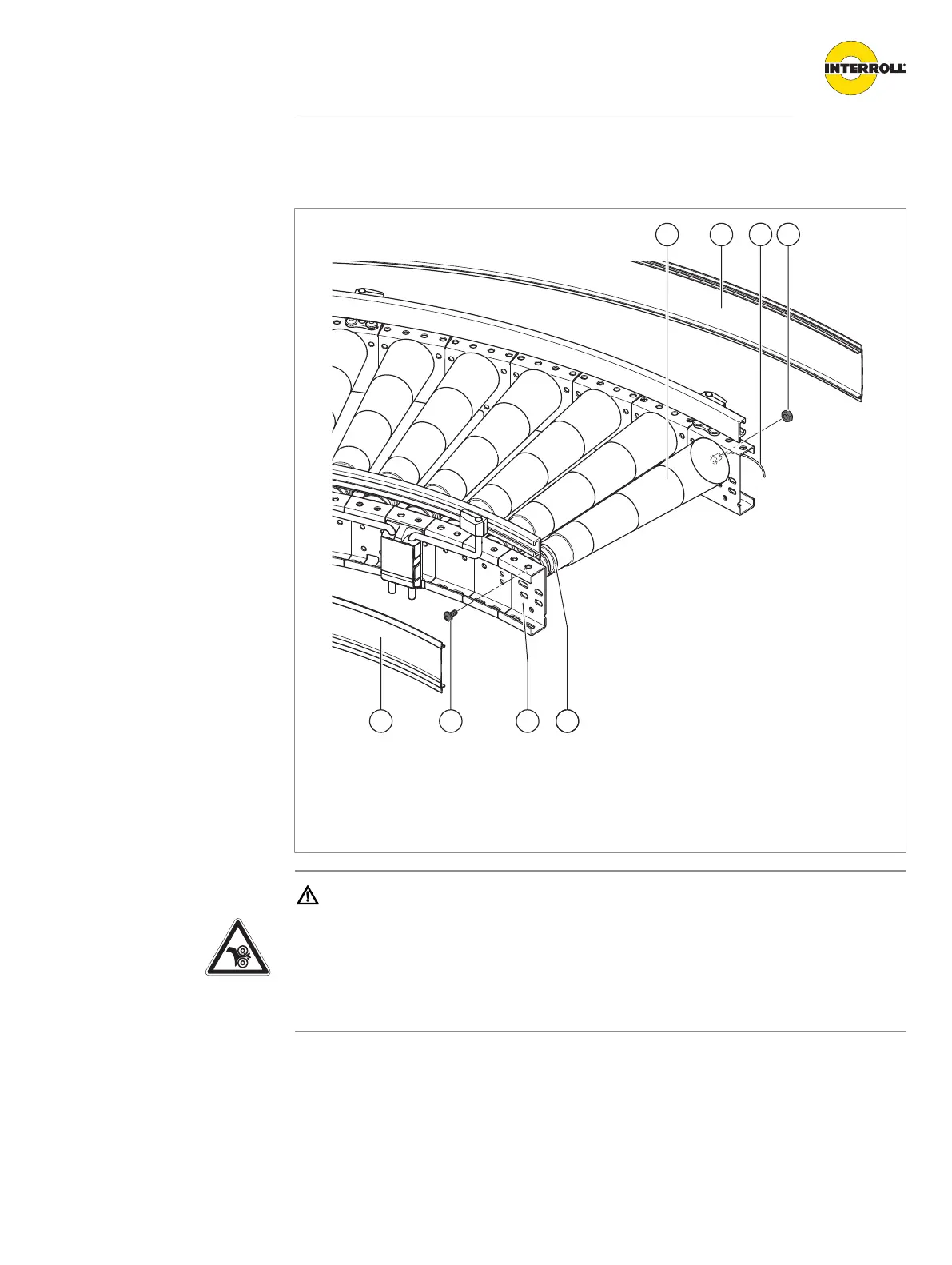

1 RollerDrive 5 Drive belt
2 Side frame cover 6 Side frame
3 Cable 7 Serrated flange bolt
4 Ribbed nut
CAUTION
Risk of crushing and electric shock
Installation and maintenance tasks on a conveyor system during its operation can lead to
crushing and electric shock.
4 De-energize the module and ensure that it cannot be started accidentally.
