Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Maintenance and repair
70 Version 1.5 (07/2020) en
Translation of original operating instructions
LED green LED yellow Meaning
On Off Photo cell is operational.
No signal from reflector.
On On Photo cell is correctly adjusted.
Light beam is well reflected.
On Flashing Photo cell is operational.
Weak signal.
Reflector is dirty, damaged or not correctly adjusted.
Replacing the reflector

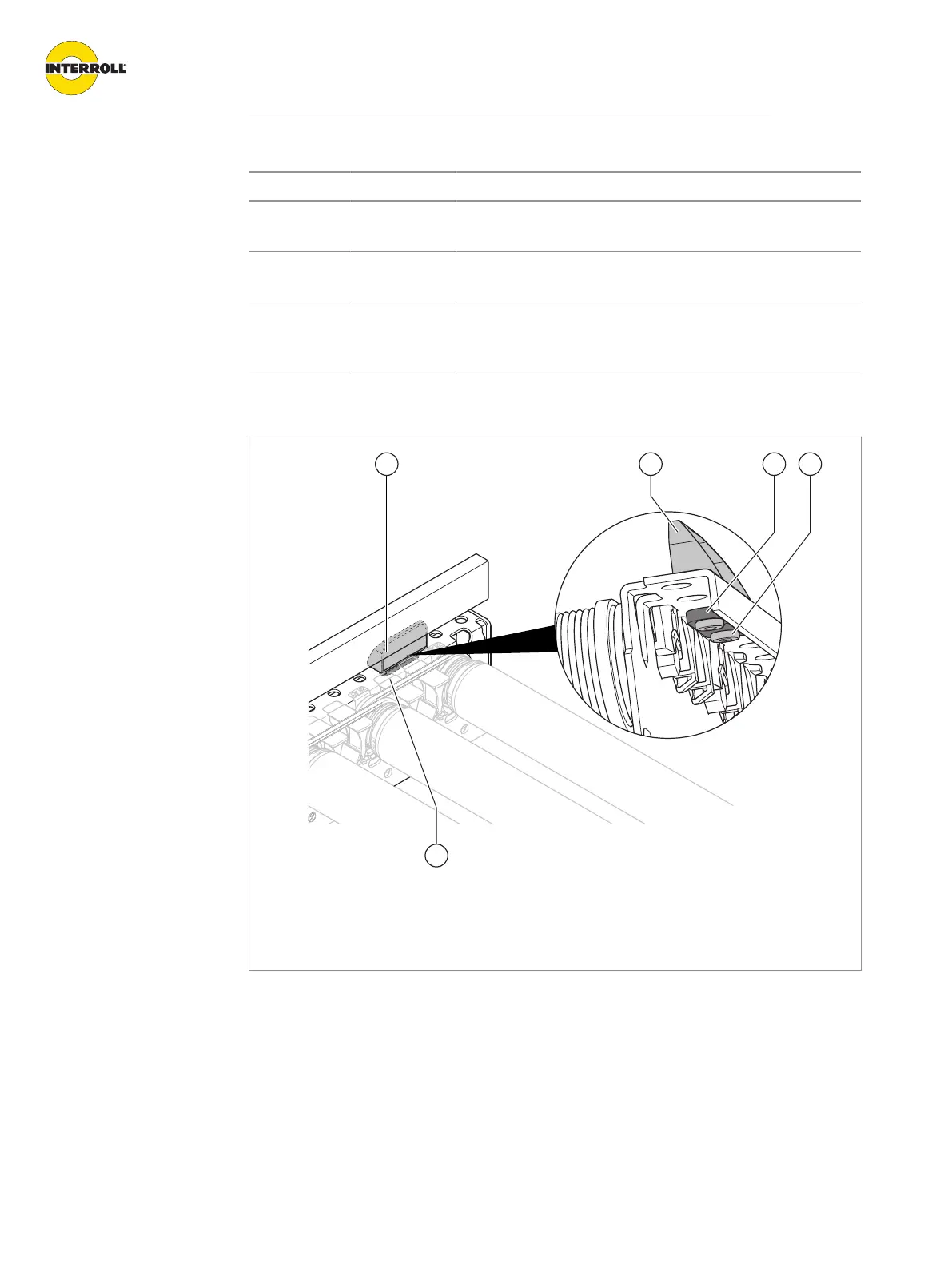

Reflector with reflector holder
1 Reflector 3 Fastening cam
2 Clip
Reflector and reflector holder are replaced together:
Requirement:
R The module is shut down.
4 Pull clip (2) off the fastening cams (3) of the reflector.
4 Remove old reflector (1).
4 Place new reflector on the side frame, mounting plate or side guide at the desired location.
4 Snap the clip into the fastening cams of the reflector from below until it noticeably snaps in.
