Interroll RM 8310 - Installing Supports

Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Installation
34 Version 1.5 (07/2020) en
Translation of original operating instructions
Installing supports
2
1
3

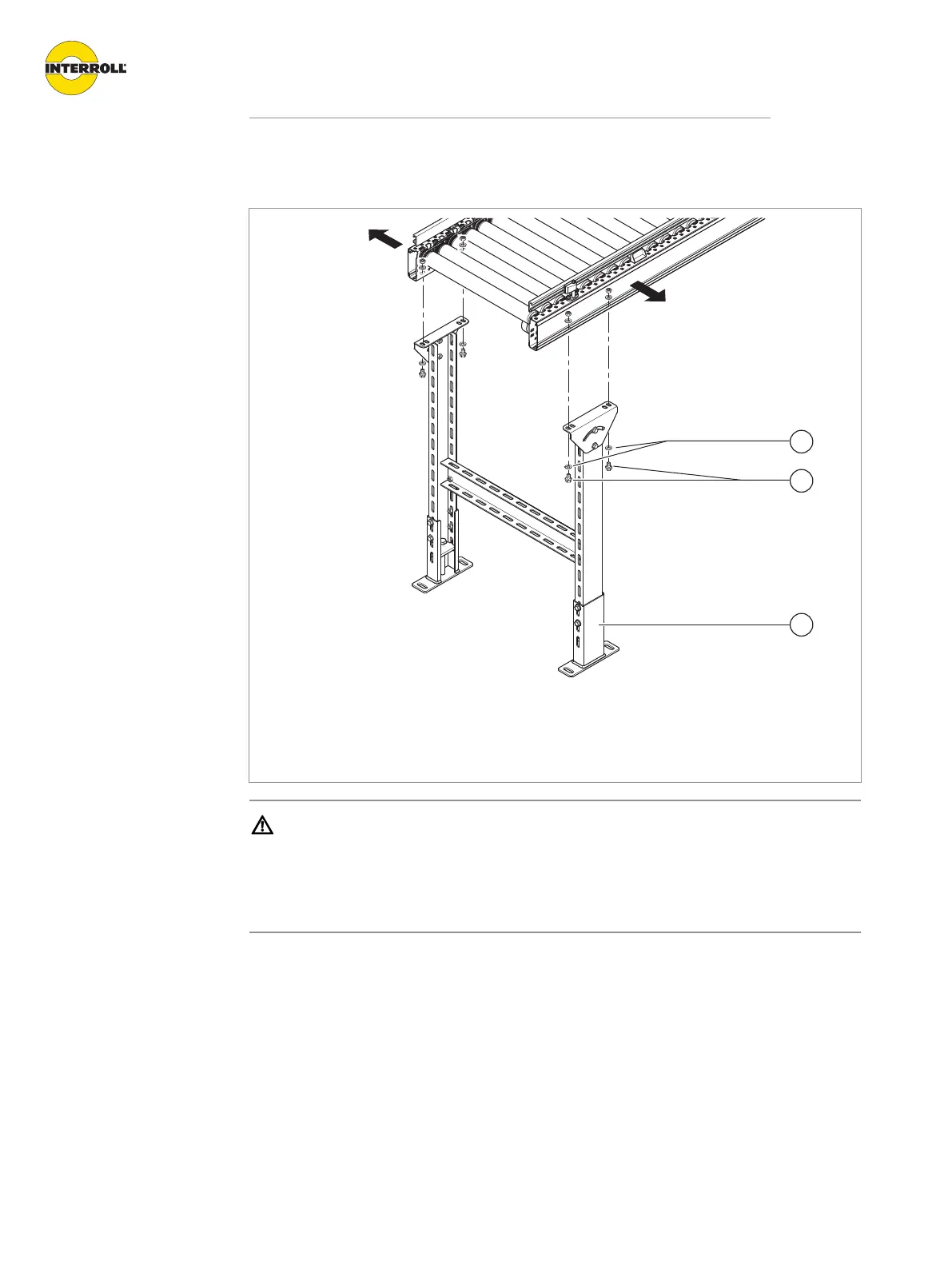

Support with two height-adjustable feet
1 Conical spring washers 3 Height-adjustable foot
2 Serrated flange bolts
CAUTION
Risk of injury when lifting heavy loads
4 During the installation and replacement of conveyor modules or heavy spare parts, work in
pairs or use a suitable lifting equipment.
The module sits on at least one support. Every support has two height-adjustable feet (3).
4 Place the module on the support.
4 Position the supports underneath the module.
4 Fasten every support to the perforation profiles of the side frames with four serrated
flange bolts (2), conical spring washers (1) and nuts.
For further information about the adjustment options, see the installation instructions of
the support.
