Interroll RM 8310 - Replacing the Finger Guard (Polyvee Guard)

Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Maintenance and repair
Version 1.5 (07/2020) en
Translation of original operating instructions
79
Replacing the finger guard (PolyVee guard)
3
4
1
2

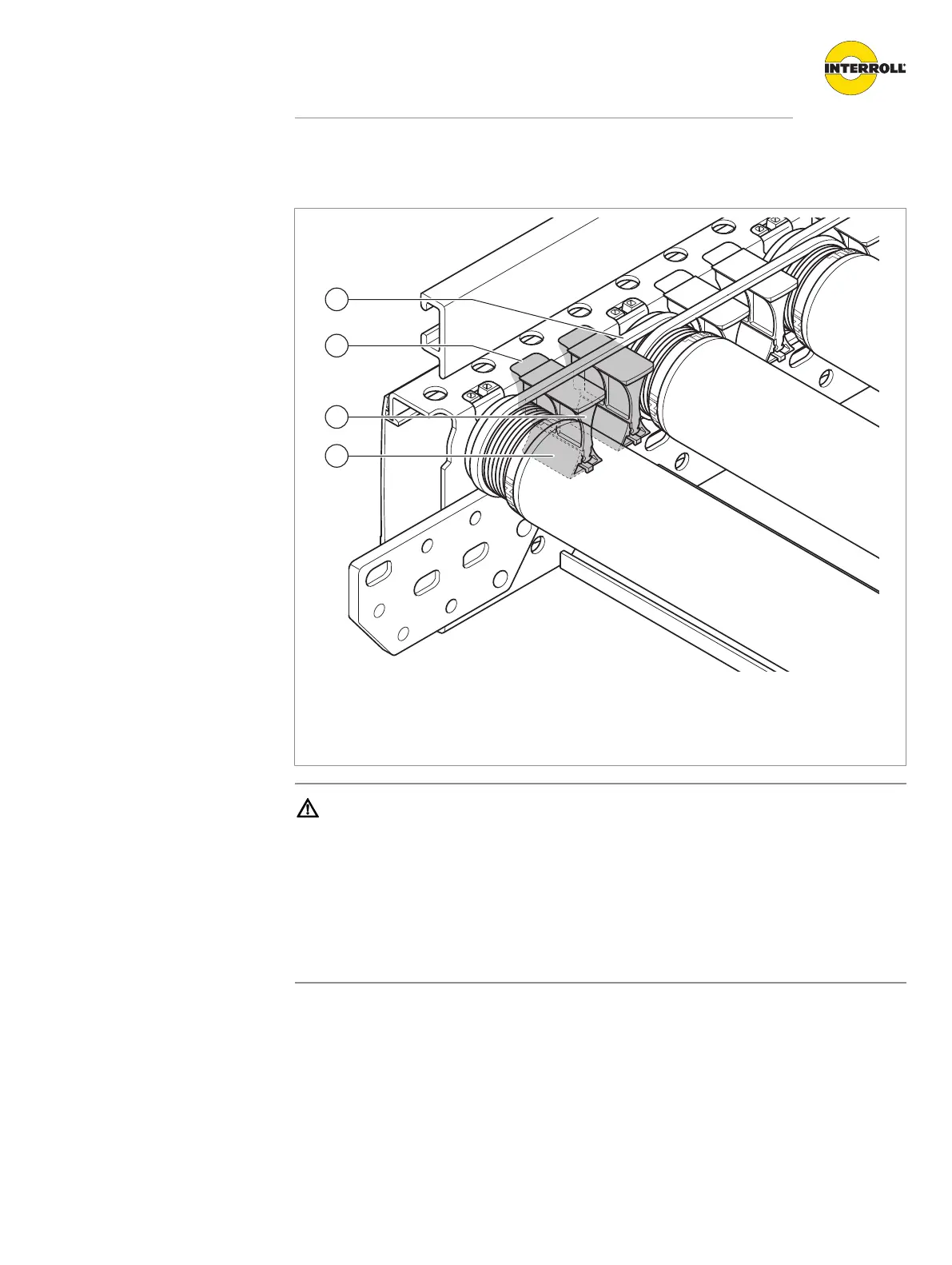

Two finger guards for pitches greater than 60mm
1 Drive belt (round belt) 3 Top part of finger guard
2 Pocket hole for finger guard 4 Bottom part of finger guard
CAUTION
Risk of crushing from rotating parts
4 Before any assembly and maintenance work, the respective devices must be
decommissioned and disconnected from the voltage supply.
4 Secure the respective devices against accidental activation.
4 When integrating the module into a complete system, consider possible danger spots,
particularly infeed locations and interfaces.
