Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Installation
48 Version 1.5 (07/2020) en
Translation of original operating instructions

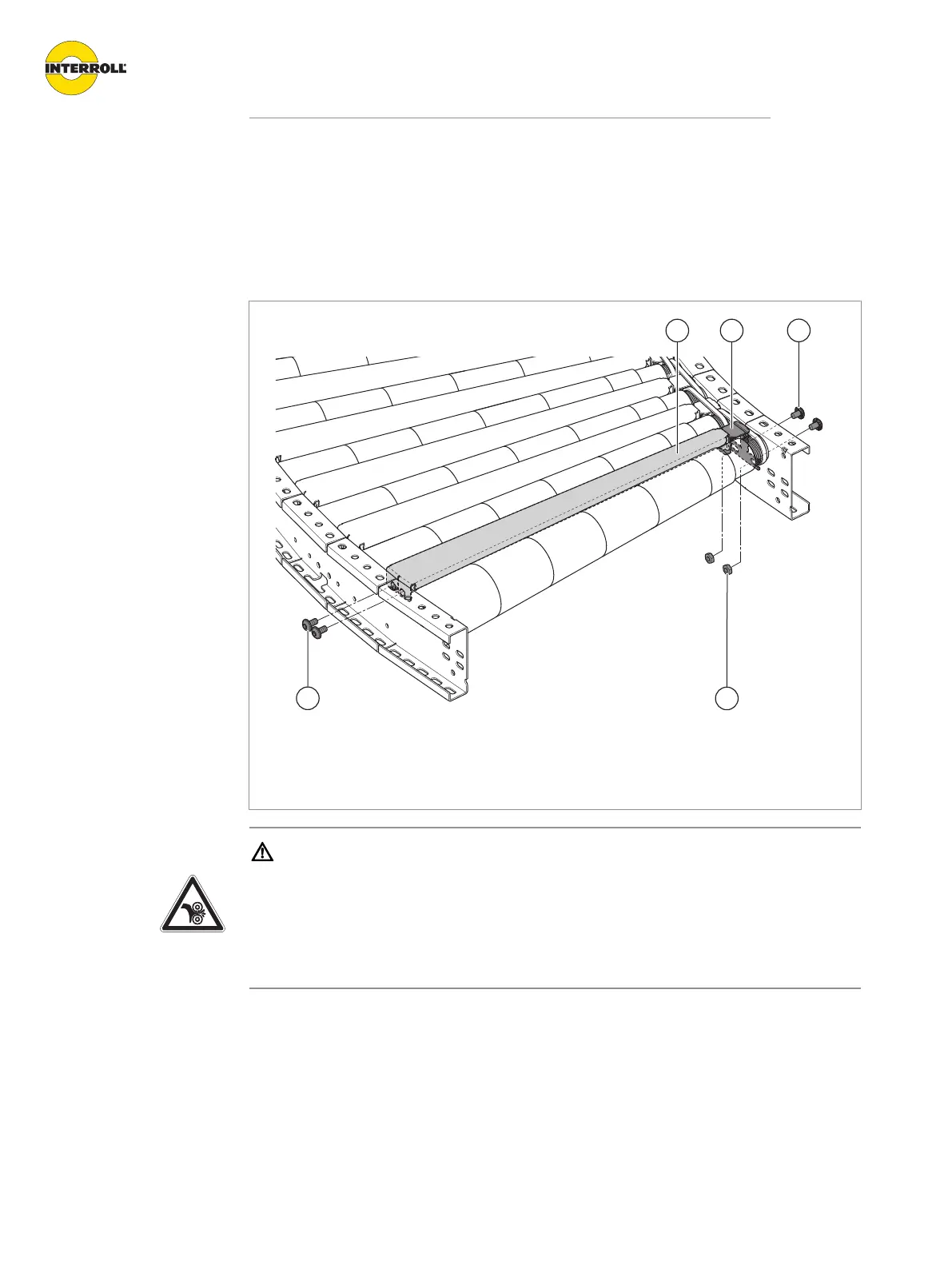

Installing the finger guard (curve)
The guard plate protects against injuries as well as damage to the belt. It covers the entire gap
between adjacent rollers and in doing so ensures safe transport of conveying goods, even small
ones. It consists of two metal plates screwed together that are installed between side frames
using serrated flange bolts and ribbed nuts.
1 Curved metal plate 4 Ribbed nut
2 Adapter metal plate 5 Serrated flange bolt
3 Serrated flange bolt
CAUTION
Risk of crushing and electric shock
Installation and maintenance tasks on a conveyor system during its operation can lead to
crushing and electric shock.
4 De-energize the module and ensure that it cannot be started accidentally.
4 Fasten the metal plate with two serrated flange bolts and ribbed nuts to the inner side frame
and with two serrated flange bolts to the outer side frame of the curve.
