Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Maintenance and repair
Version 1.5 (07/2020) en
Translation of original operating instructions
77
Replacing the side frame cover

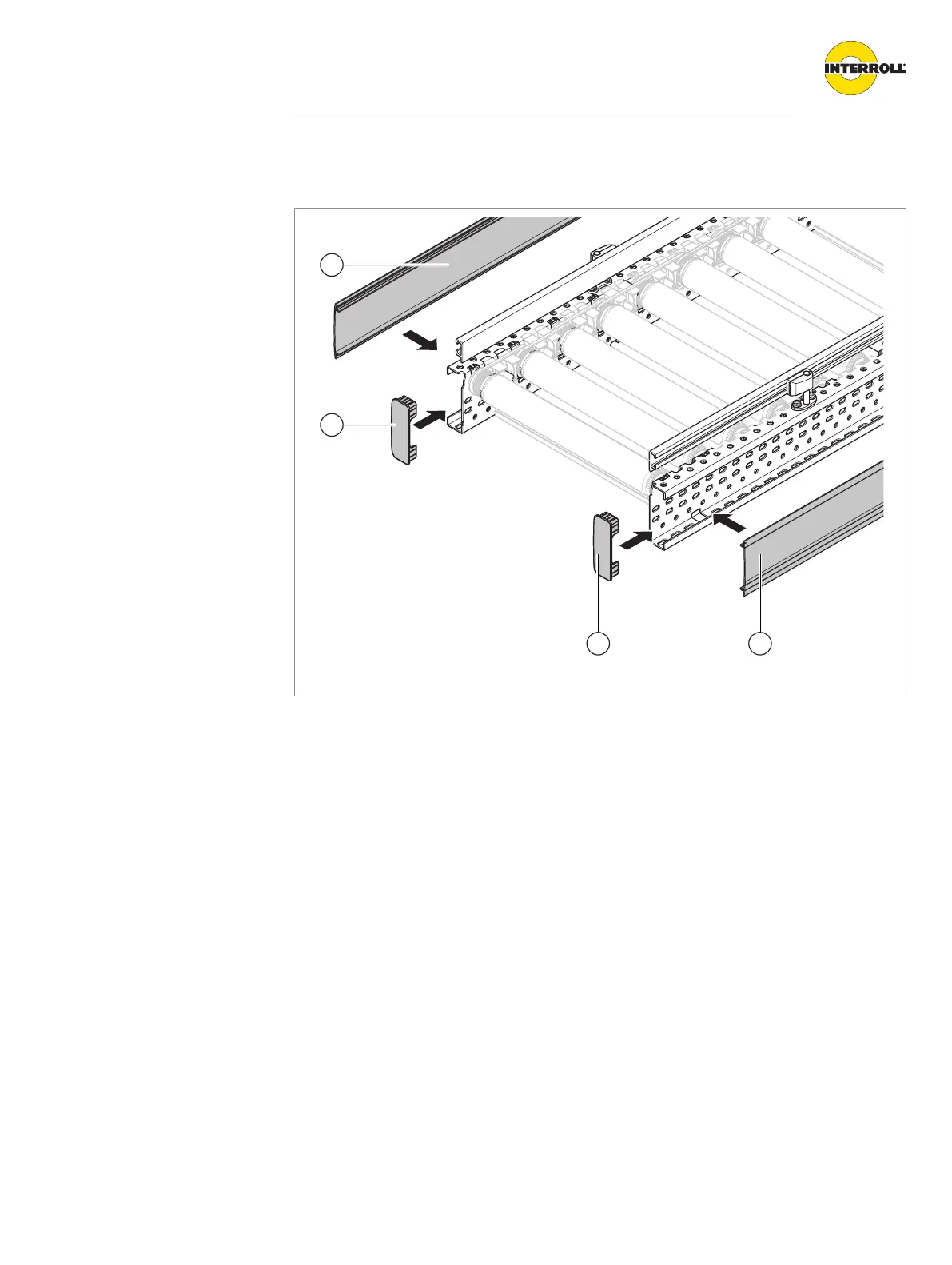

1 End cap 2 Side frame cover
4 Carefully pry the side frame cover (2) out of the side profile at one end using a tool (e.g.,
screwdriver).
4 Starting at this point, remove the entire side frame cover from the side profile.
4 Snap new side frame cover into the C-profile of the side frame.
