Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Installation
42 Version 1.5 (07/2020) en
Translation of original operating instructions

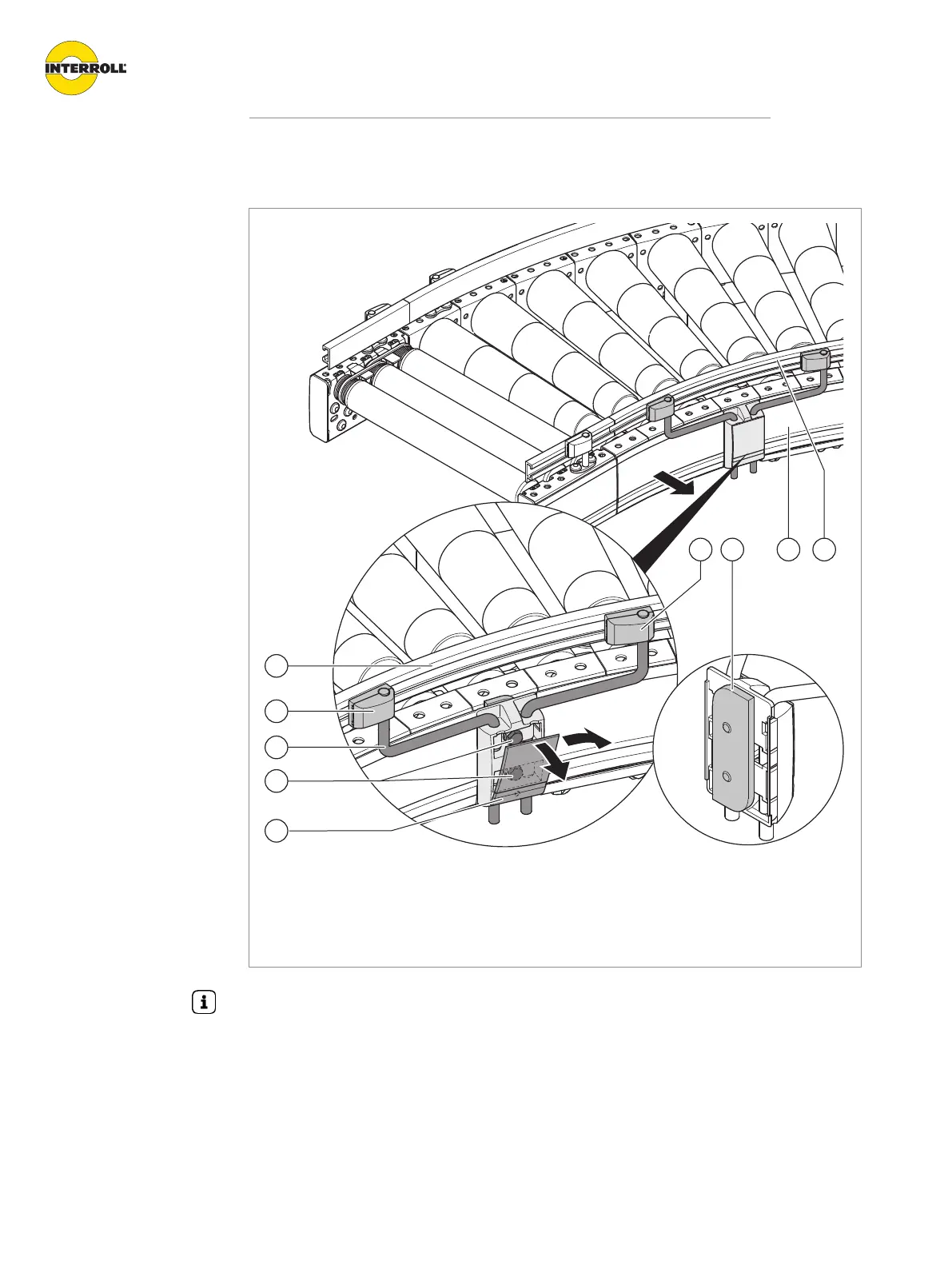

Installing the flexible universal support
1 Side guide profile 5 Mounting bracket
2 Side frame cover 6 Hexagon head screws
3 Clamping plate 7 Universal support cover
4 Side guide bracket
The flexible universal supports can be delivered pre-assembled upon request. In this case,
the universal supports are turned to the conveyor center for the transport and still have to be
positioned before startup depending on their use (for the installation of adjustable side guide,
photo cell or reflector).
The flexible universal support is laterally inserted into the C-profile of the side frame and
clamped in place.
