Interroll RM 8310 - Connecting the Modules

Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Installation
Version 1.5 (07/2020) en
Translation of original operating instructions
35

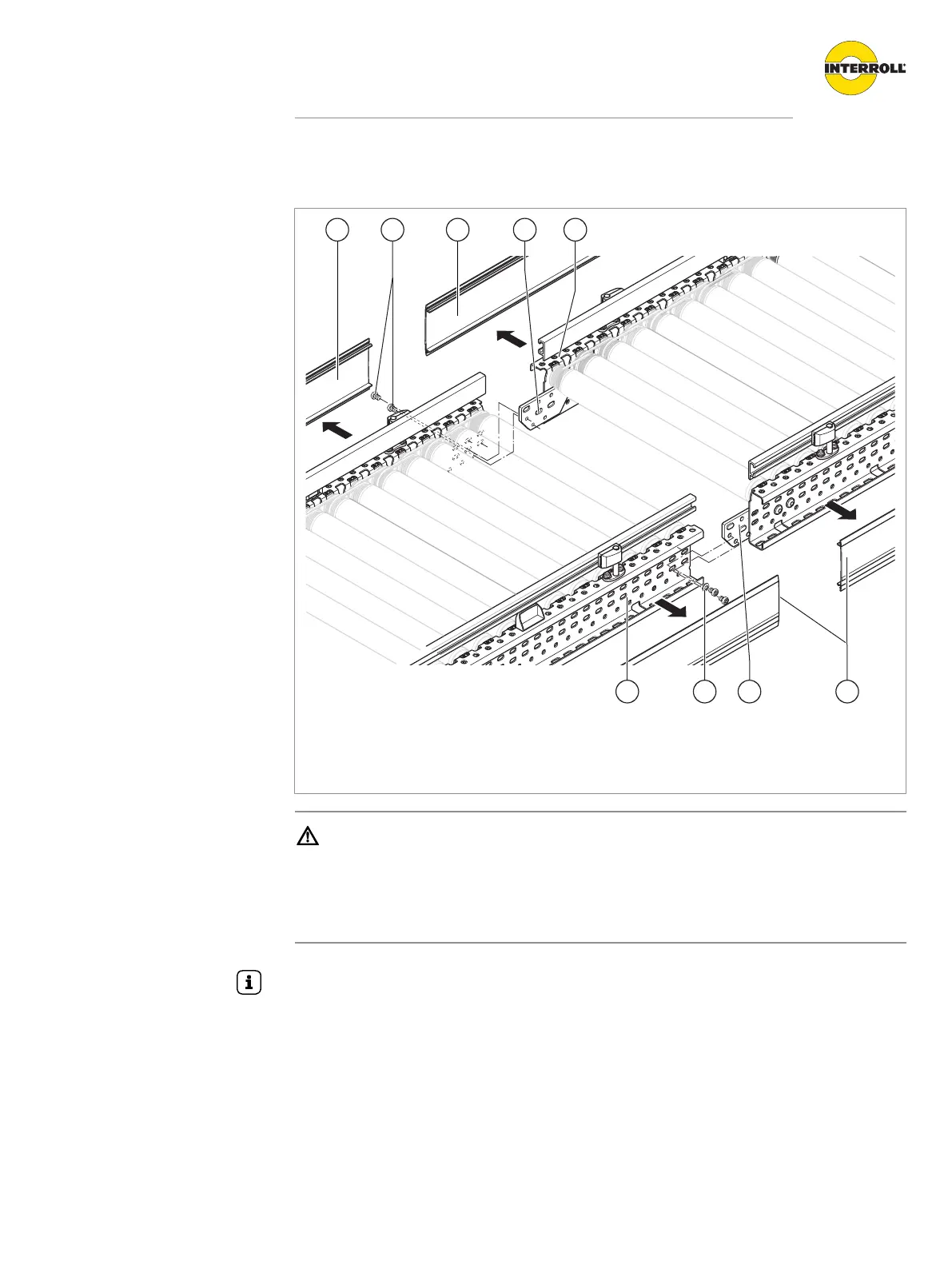

Connecting the modules
1
2
3
4
1
5
4
3 1
1 Side frame cover 4 Side frame
2 Screws 5 Spring washer
3 Profile connectors
CAUTION
Risk of crushing and injuries from cuts
4 When integrating the module into a complete system, consider possible danger spots,
particularly infeed locations and interfaces.
During setup of the conveyor system, check for passageways for personnel. Install crossings as
necessary.
The individual modules of a complete conveyor system are screwed together using
profile connectors (3):
4 To connect straight sections and curves, use profile connectors with punch pressing
and regular pitch.
4 To connect sections with irregular pitches, use profile connectors with elongated holes and
without punch pressing.
