Interroll RM 8310 - Replacing the Side Guide Profile

Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Maintenance and repair
Version 1.5 (07/2020) en
Translation of original operating instructions
71
Replacing the side guide profile
3
5
1
1
6
4
2
2

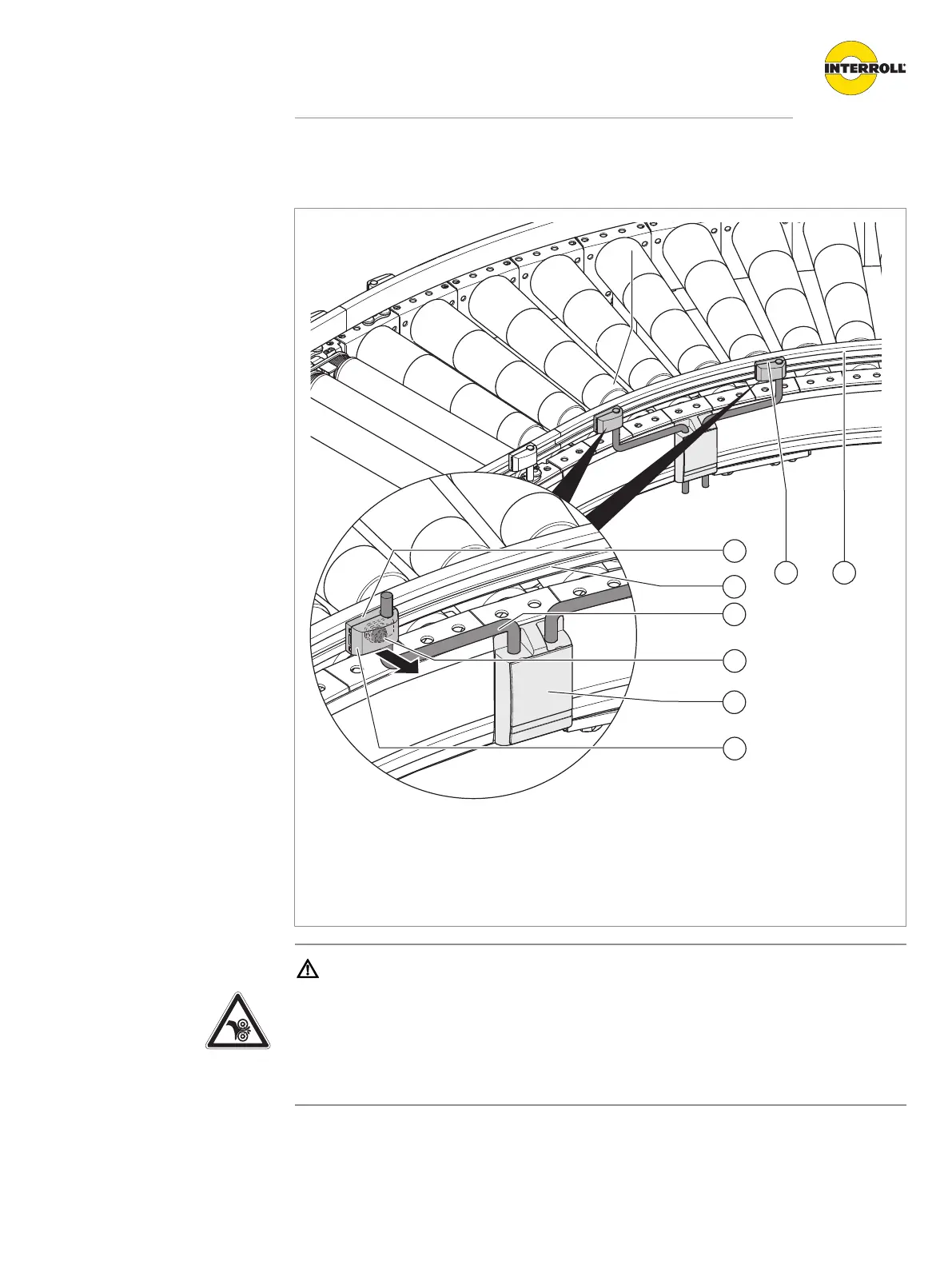

Flexible universal support with detailed view of side guide bracket at side guide profile
1 Side guide profile 4 Hexagon nut
2 Side guide bracket 5 Flexible universal support
3 Mounting bracket 6 Side guide bracket cover
CAUTION
Risk of crushing and electric shock
Installation and maintenance tasks on a conveyor system during its operation can lead to
crushing and electric shock.
4 De-energize the module and ensure that it cannot be started accidentally.
