Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Installation
Version 1.5 (07/2020) en
Translation of original operating instructions
37
Installing the photo cell and reflector
The photo cell and the reflector are each delivered as a finished unit:
• The photo cell is in the photo cell holder.
• The reflective tape is affixed to the reflector holder.
Photo cell and reflector must be installed exactly facing each other.

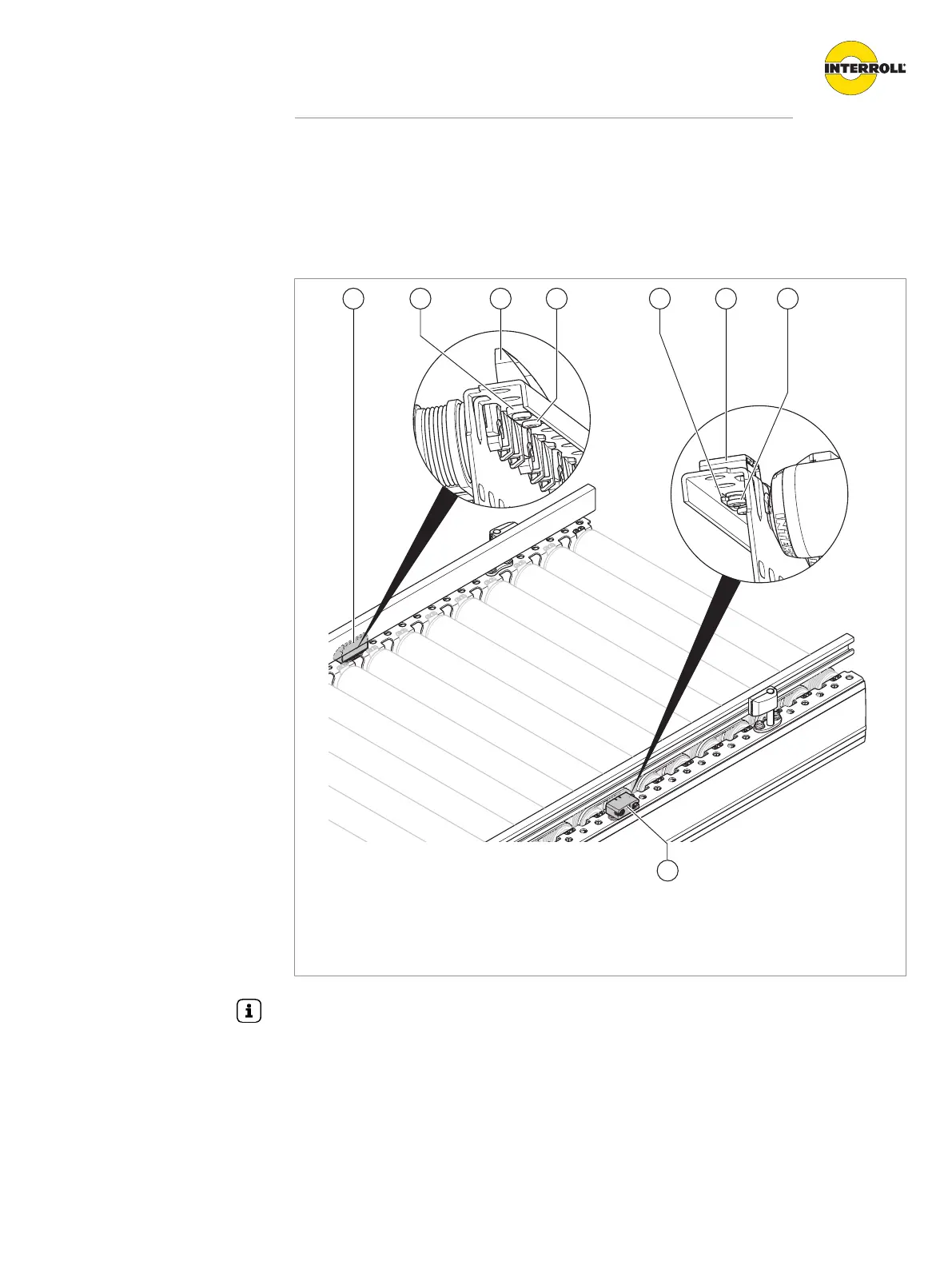

1 Reflector 3 Mounting cam
2 Clamp 4 Photo cell
The photo cell can be installed on the module at different points: On the side frame
(sheet metal thickness t = 2.5 mm), on the assembly sheet metal (t = 2.5 mm) or on
the side guide (t = 4.5 mm).
