Interroll 24-V/48-V Roller Conveyor
RM 8310/8310 DF, RM 8320/8320 DF, RM 8330/8330 DF
Maintenance and repair
68 Version 1.5 (07/2020) en
Translation of original operating instructions
Replacing the roller clip
Roller clip in the side frame

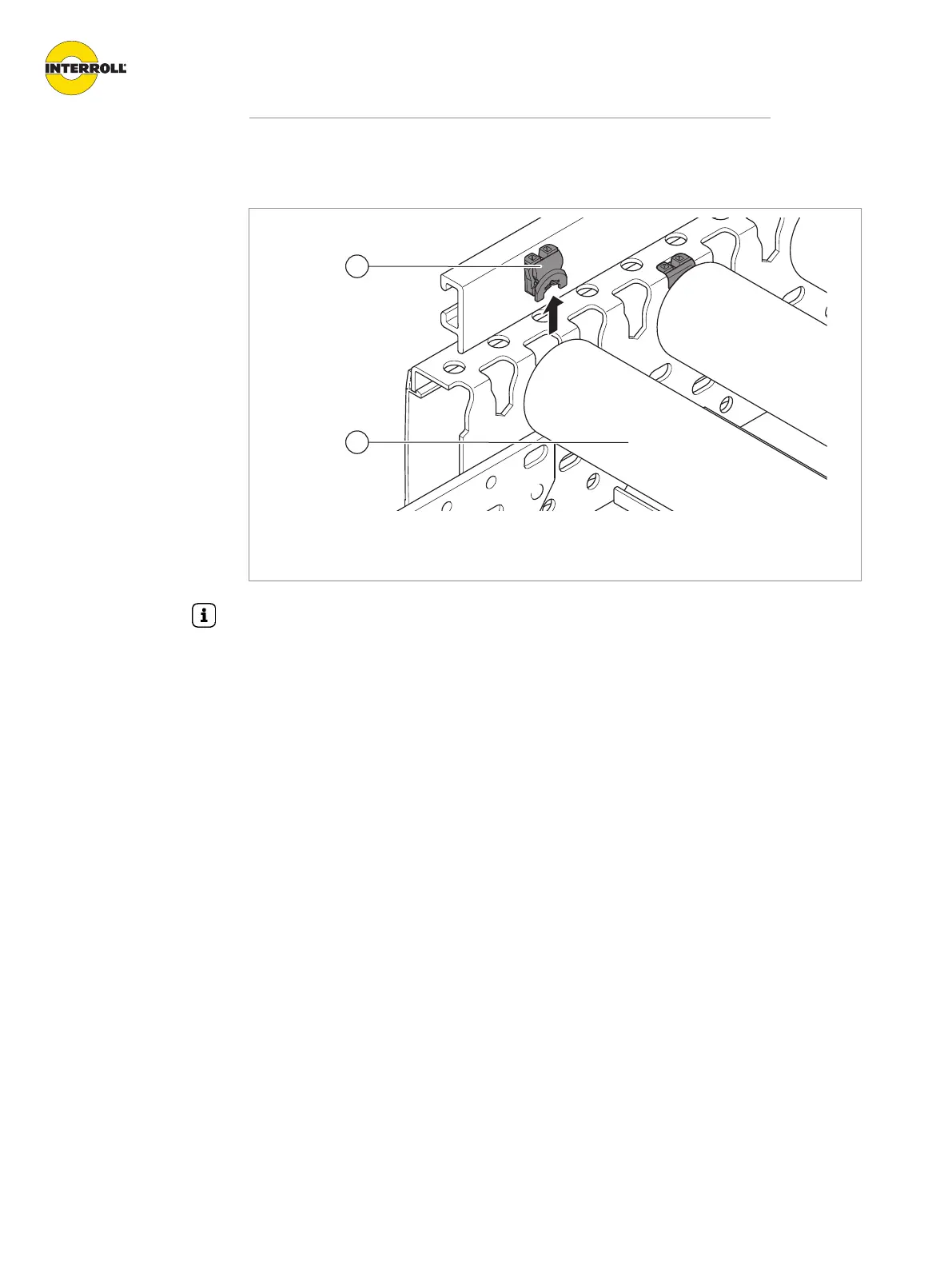

1 Roller 2 Roller clip
The pocket holes for carrier rollers and RollerDrive are closed with clips after the installation:
4 Close the pocket holes over the carrier rollers using roller clips.
4 Close one of the pocket holes over the RollerDrive with a suitable clip. (The pocket hole on
the opposite side is closed by the tab.)
4 Optional: Close empty pocket holes with a dummy clip.
Requirement:
R The module is shut down.
4 Remove the roller clip (2) with needle-nose pliers from the opening in the side frame.
4 After inserting the roller (1), insert the new roller clip in the opening of the side frame until it
completely snaps into place.
