Installing the finger guard (PolyVee guard)

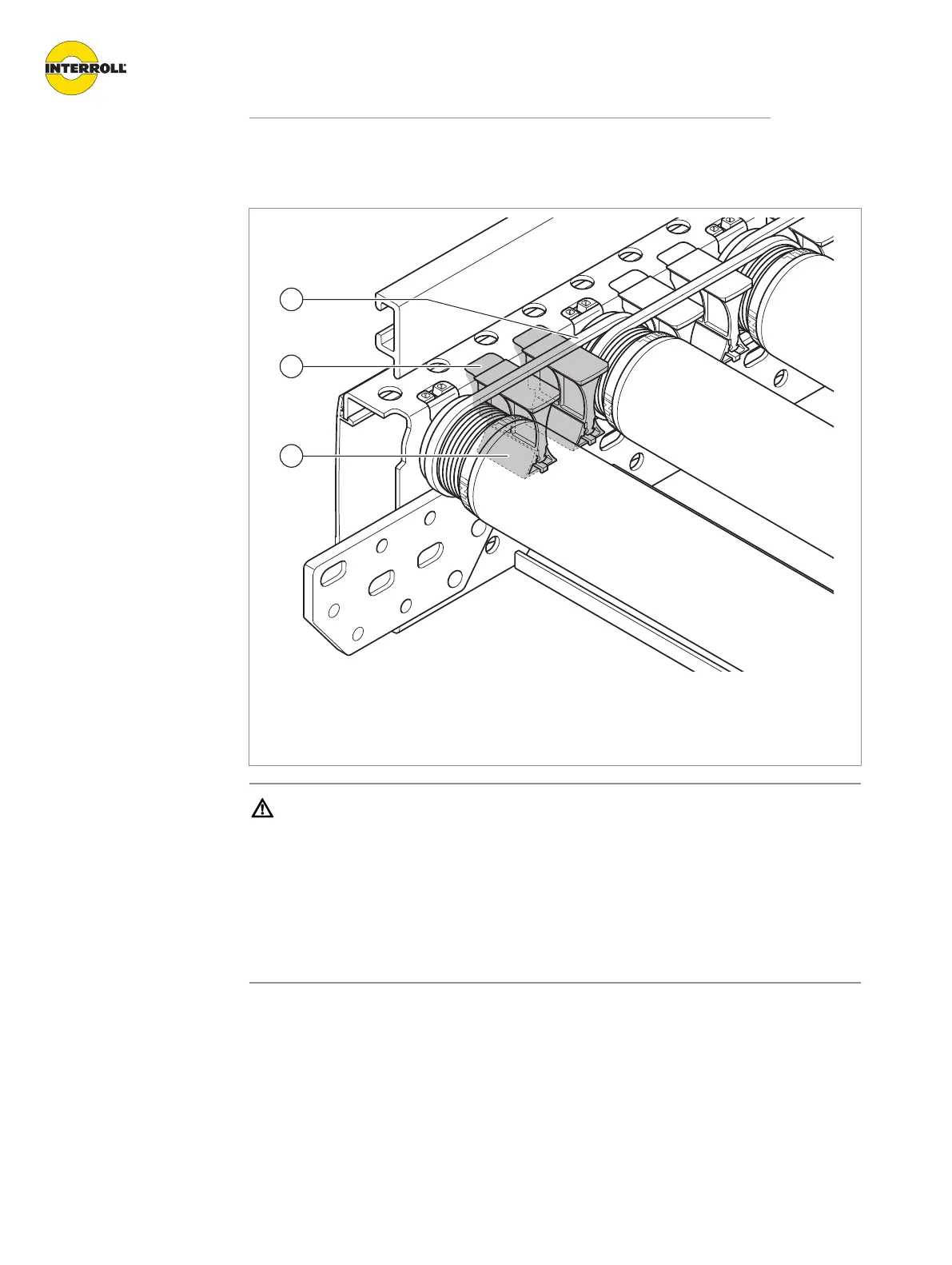

Example: Finger guards for roller pitch greater than 60mm
1 Drive belt (PolyVee) 3 Bottom part of finger guard
2 Top part of finger guard
CAUTION
Risk of crushing from rotating parts
4 Before any assembly and maintenance work, the respective devices must be
decommissioned and disconnected from the voltage supply.
4 Secure the respective devices against accidental activation.
4 When integrating the module into a complete system, consider possible danger spots,
particularly infeed locations and interfaces.
The finger guard protects against injuries as well as damage to the belt.
The finger guard consists of a top part (2) and a bottom part (3). The parts are combined
via a form fit.
