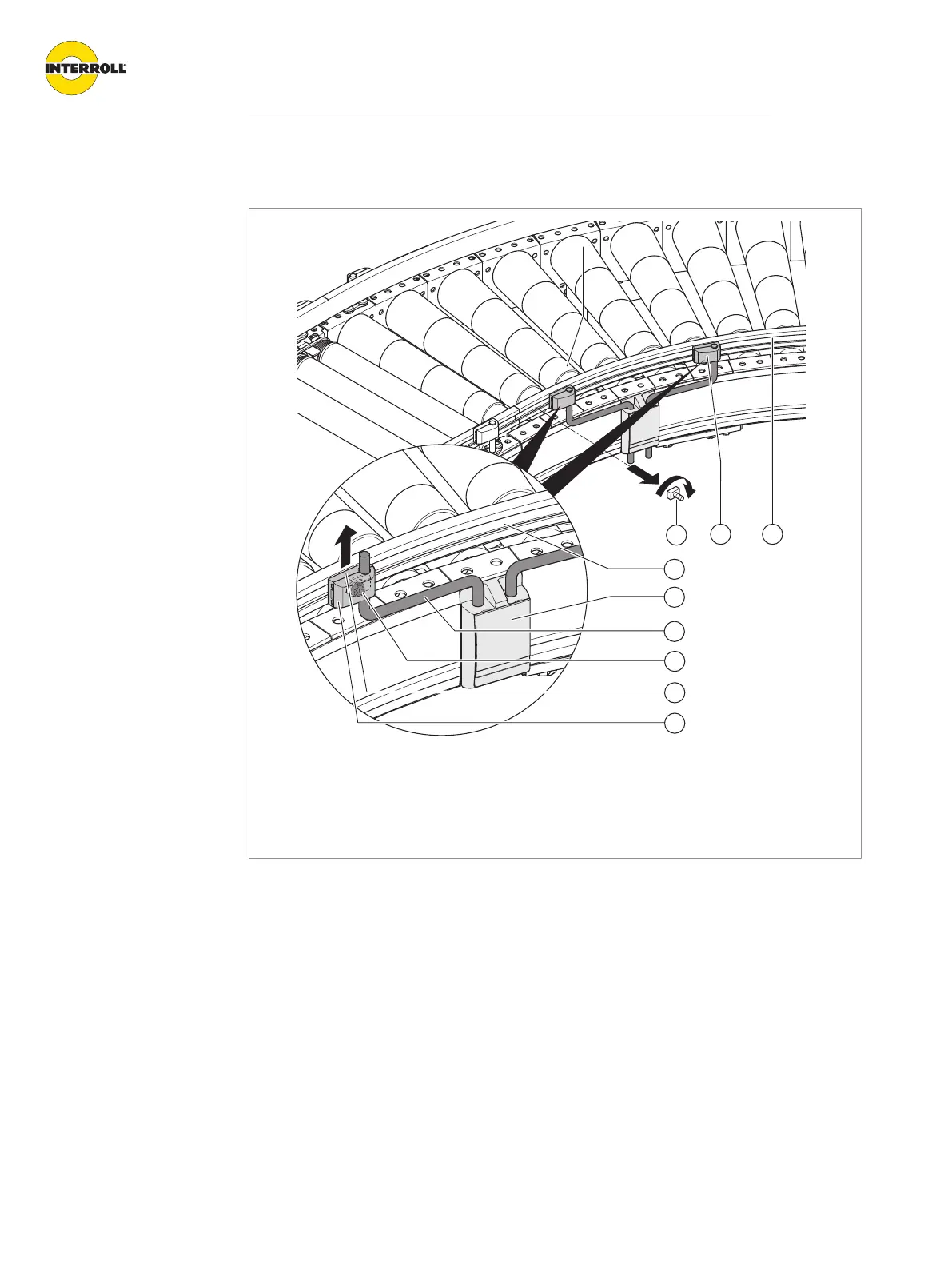

Fastening the side guide profile on the universal support
3
5
4
1
1
7
6
2
2
1 Side guide profile 5 Mounting bracket
2 Side guide bracket 6 Hexagon nut
3 Hammer head bolt 7 Side guide bracket cover
4 Flexible universal support
Requirement:
R The module is shut down.
4 Push side guide bracket (2) onto one of the mounting brackets (5) of the universal
support (4). If needed, break out the upper hole cover in the side guide bracket,
e.g. to use two side guides above each other.
4 Fold up the cover of the side guide bracket (7).
4 Slightly loosen hexagon nut (6) in side guide bracket.
4 Place side guide profile (1) onto side guide bracket (2) and position it.
4 Slightly turn the hammer head bolt (3) located in the side guide bracket and insert it into
the side guide profile.
4 Tighten the hexagon nut.
ð The hammer head bolt is fixed. The side guide bracket sits firmly on the universal support.
4 Close the cover of the side guide bracket and snap it in.
