Using the diverter connection kit
When using a diverter to guide material out of a conveyor belt within a conveyor system, height
differences of up to 12mm are possible. These differences can be compensated for by using a
diverter connection kit.
4 Install the diverter connection kit on the outgoing conveyor belt.
4 Adjust the diverter connection kit either to the roller height (+0mm) or to the height of the
diverter belt (+12mm).

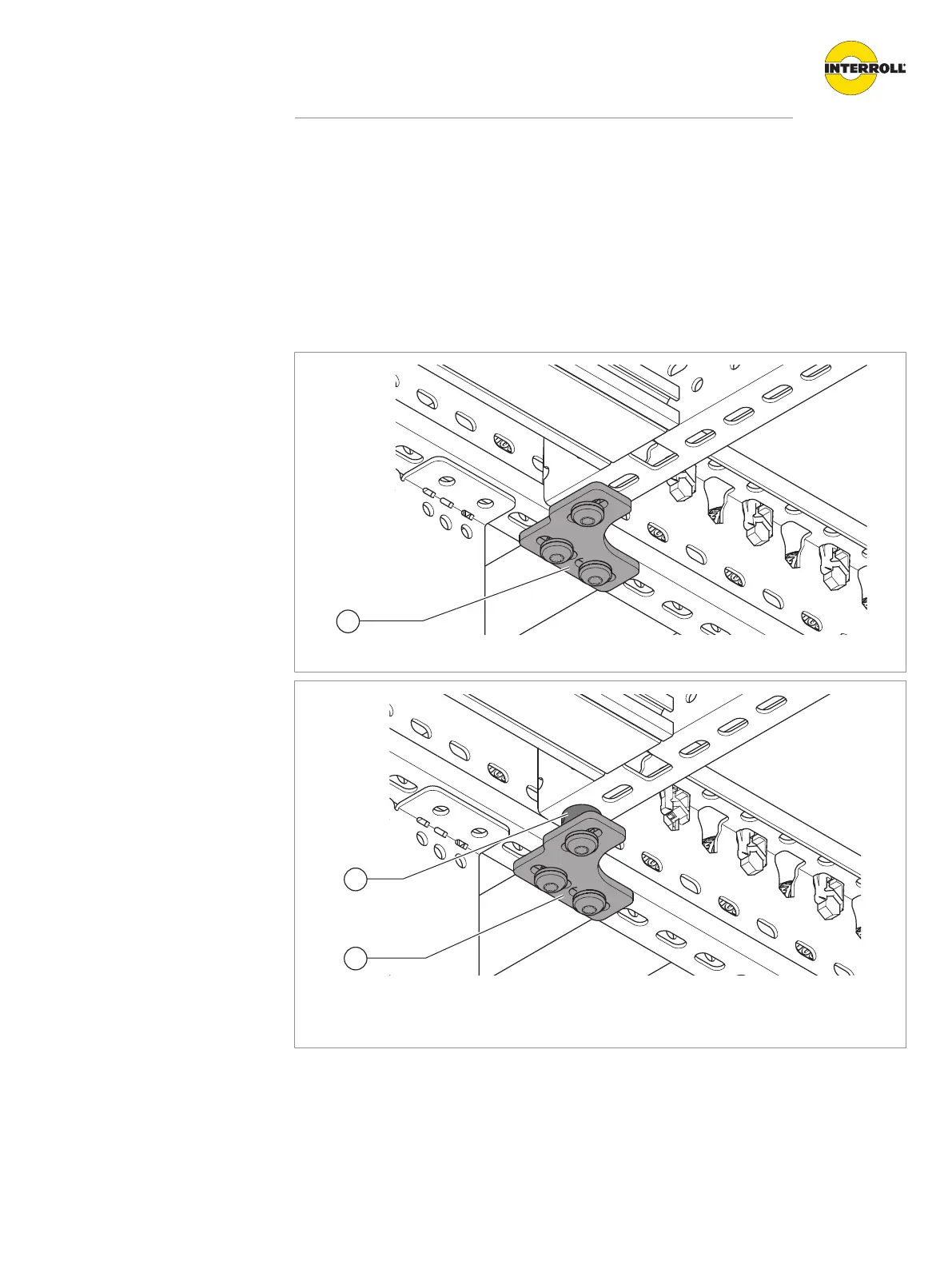

1
Diverter kit 0mm
1
2
Diverter kit for 12mm height difference
1 Diverter connection kit 2 Spacer
