18
4
6
7
1
2
3
14
13
9
10
11
12
8
5

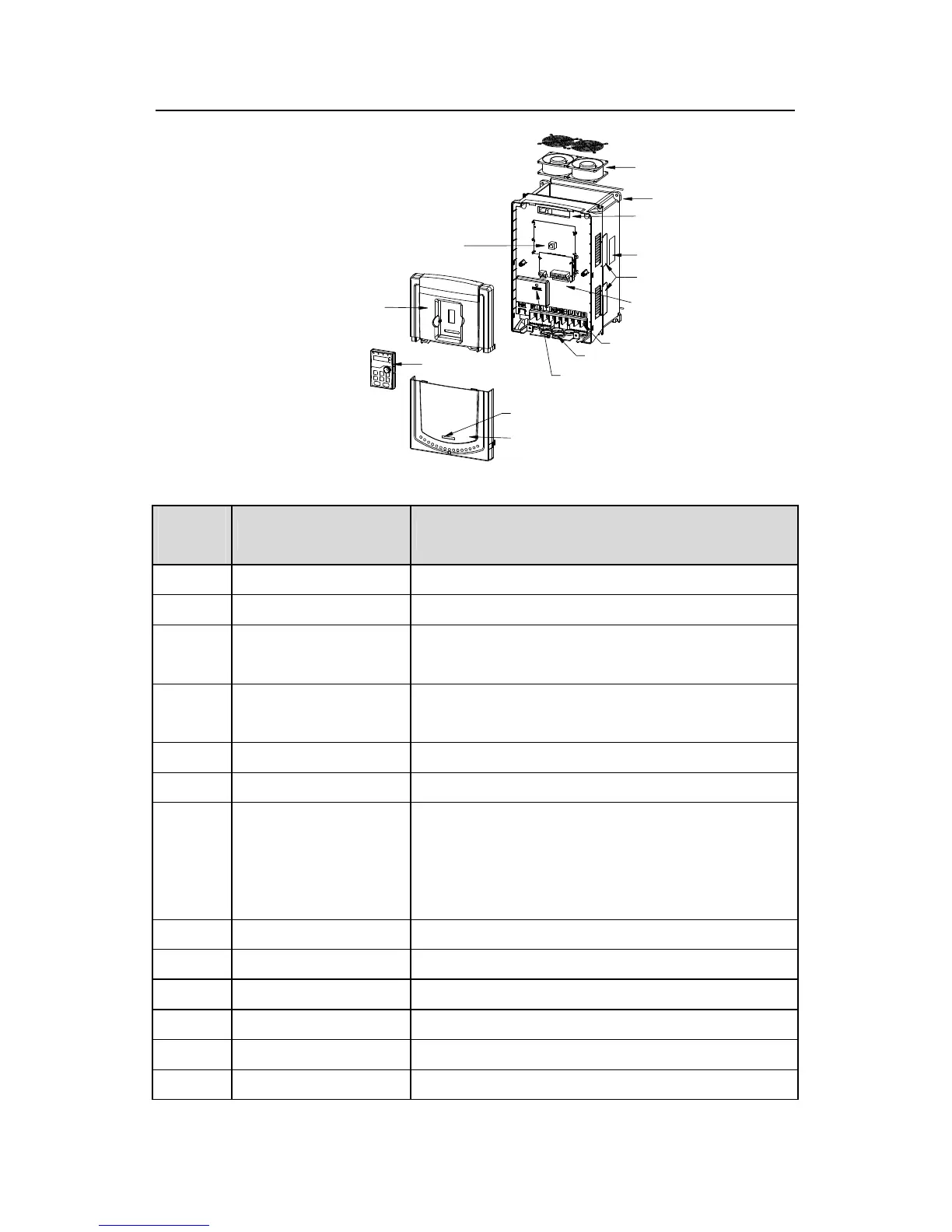

Fig 3-5 Product structure diagram
Serial
No.
Name Illustration
1 Keypad port Connect the keypad
2 Upper cover Protect the internal parts and components
3 Keypad
See Keypad Operation Procedure for detailed
information
4 Cooling fan
See Maintenance and Hardware Fault Diagnose for
detailed information
5 Wires port Connect to the control board and the drive board
6 Name plate See Product Overview for detailed information
7 Side cover
Optional part. The side cover will increase the
protective degree of the inverter. The internal
temperature of the inverter will increase, too, so it is
necessary to derate the inverter at the same time
8 Control terminals See Electric Installation for detailed information
9 Main circuit terminals
Fix the main circuit cable
11 POWER light Power indicator
12 Simple name plate See Product Overview for detailed information
13 Lower cover Protect the internal parts and components
To Next Page
