Goodrive200 inverters
Appendix C
249
Peripheral Options and Parts Appendix C
C.1 What this chapter contains
This chapter describes how to select the options and parts of Goodrive200 series.
C.2 Peripheral wiring

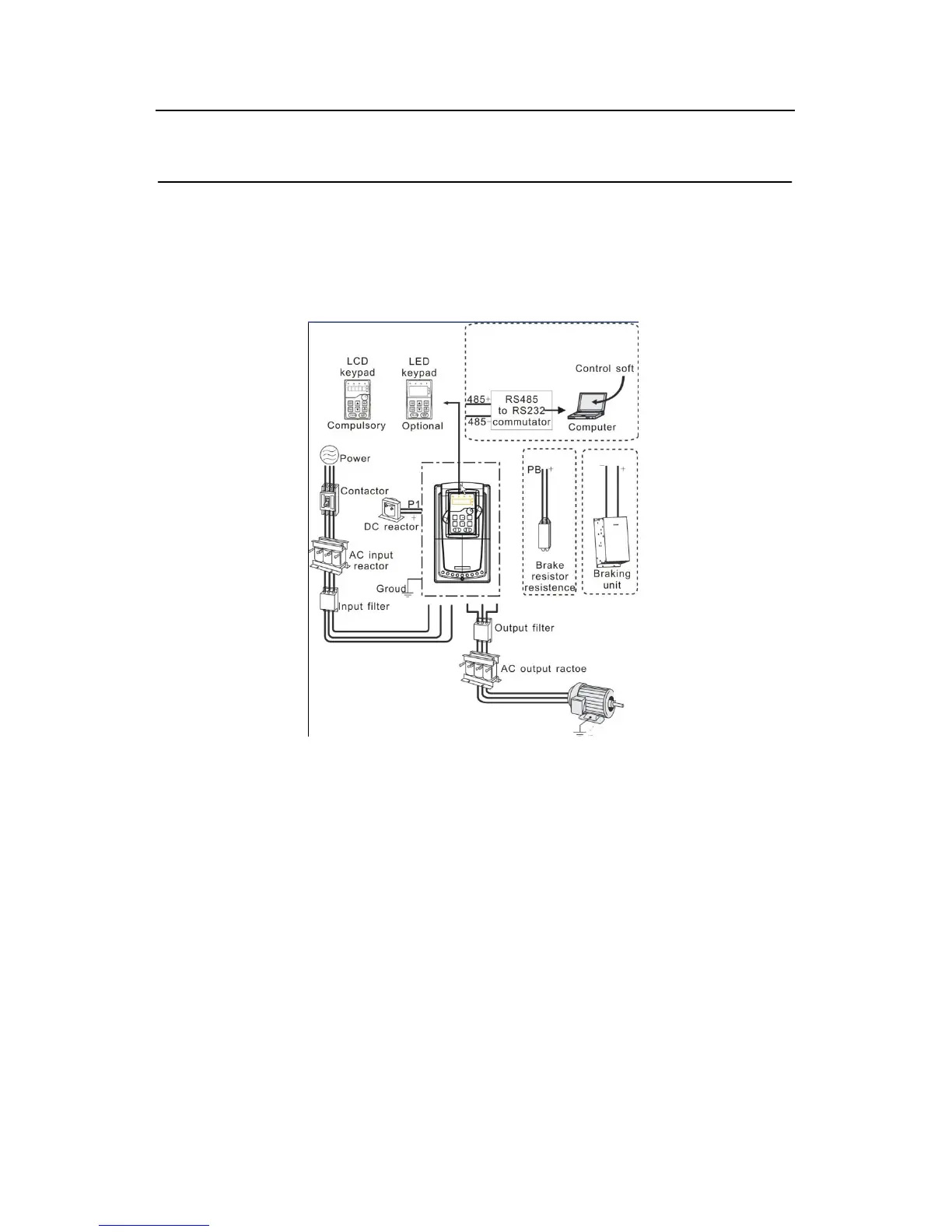

Below is the peripheral wiring of Goodrive200 series inverters.
Note:
1． The inverter below 30kW (including 30kW) are embedded with braking unit.
2. Only the inverter above 37kW (including 37kW) have P1 terminal and are connected
with DC reactors.
3. The braking units apply standard braking unit DBU series in. Refer to the instruction of
DBU for detailed information.
