(2) Fix the screws or bolts to the marked locations.
(3) Position the drive onto the wall.
(4) Tighten the screws in the wall securely.
Note:
1. The flange installation bracket is needed in the flange installation of 1.5~30kW inverters,
which the flange installation of 37~200kW inverters does not need the installation bracket.
2. 220~315kW inverters need optional base in the floor installation.
4.2.4 Single installation

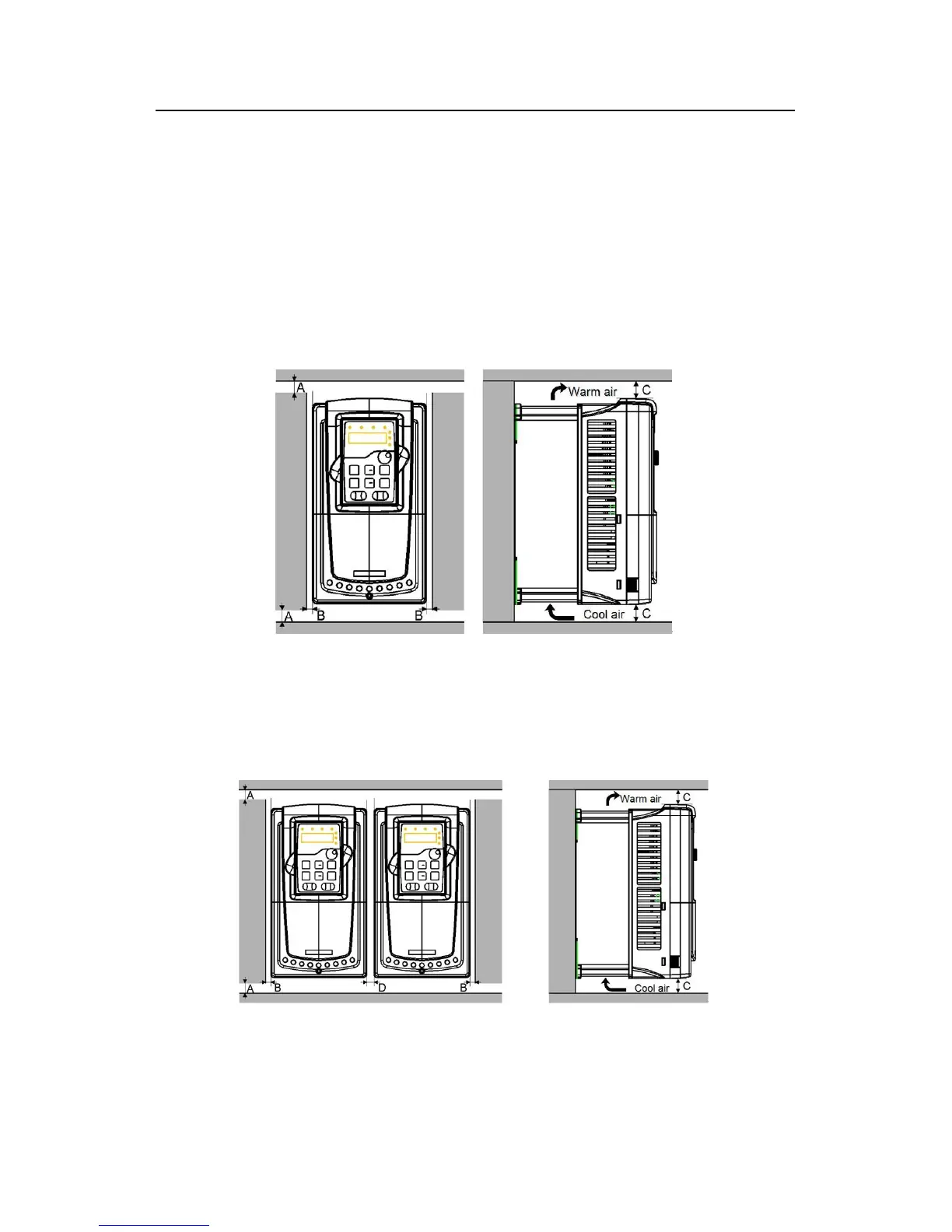

Fig 4-3 Single installation
Note: The minimum space of B and C is 100mm.
4.2.5 Multiple installations
Parallel installation
Fig 4-4 Parallel installation
Note:
Before installing the different sizes inverters, please align their top position for the
