INVT GD200-037G/045P-4 - Filter Type Instruction

Goodrive200 inverters
Appendix C
258
The input interference filter can decrease the interference of the inverter to the surrounding
equipments.
Output interference filter can decrease the radio noise cause by the cables between the
inverter and the motor and the leakage current of the conducting wires.
Our company configured some filters for the convenient of the users.

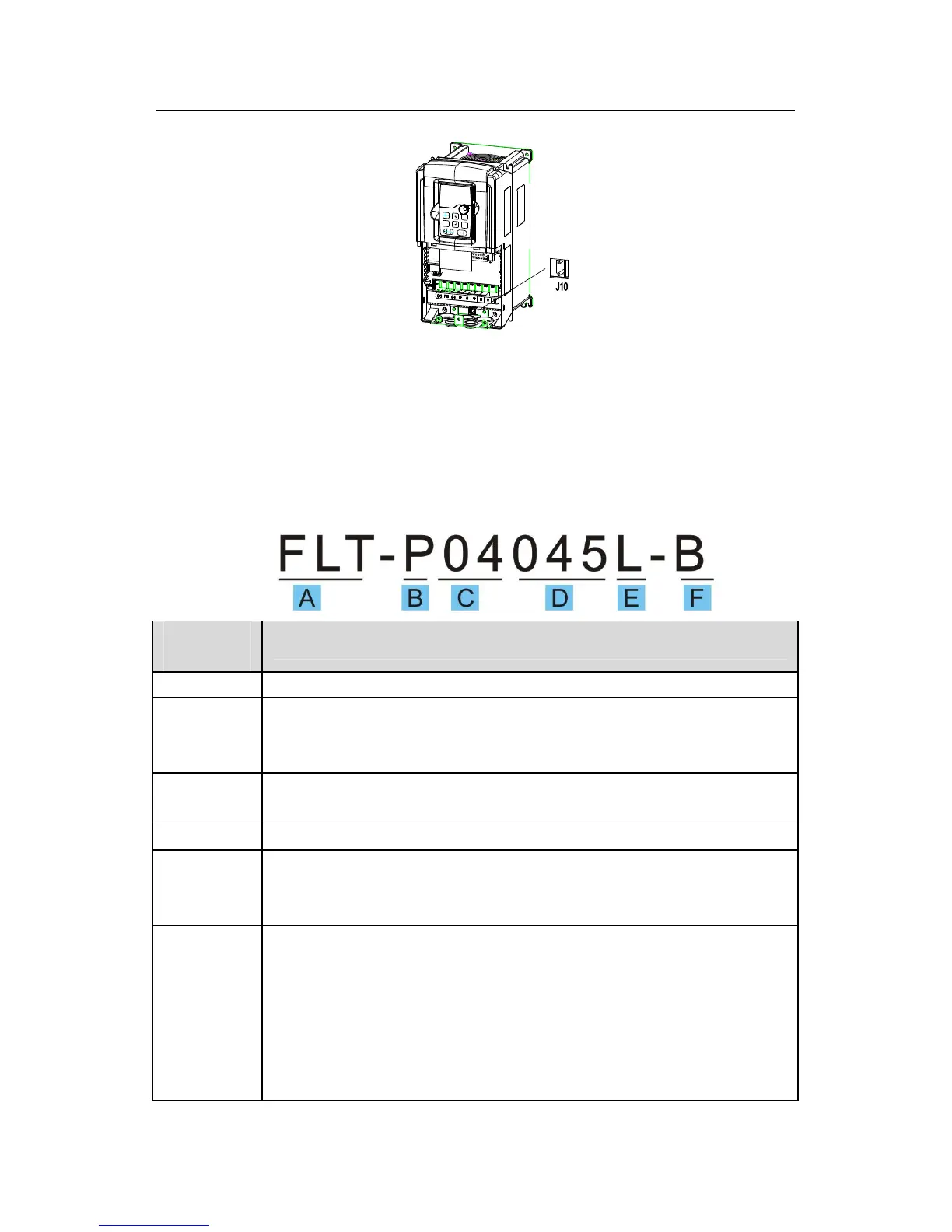

C.7.1 Filter type instruction
Character
designation
Detailed instruction
A FLT:inverter filter series
B
Filter type
P:power supply filter
L:output filter
C
Voltage degree
04:3-phase 380Vac
D 3 bit rated current code “015” means 15A
E
Installation type
L: Common type
H: High performance type
F
Utilization environment of the filters
A: The first environment (IEC61800-3:2004) category C1
(EN 61800-3:2004)
B: The first environment (IEC61800-3:2004) category C2
(EN 61800-3:2004)
C: The second environment (IEC61800-3:2004) category C3
(EN 61800-3:2004)
